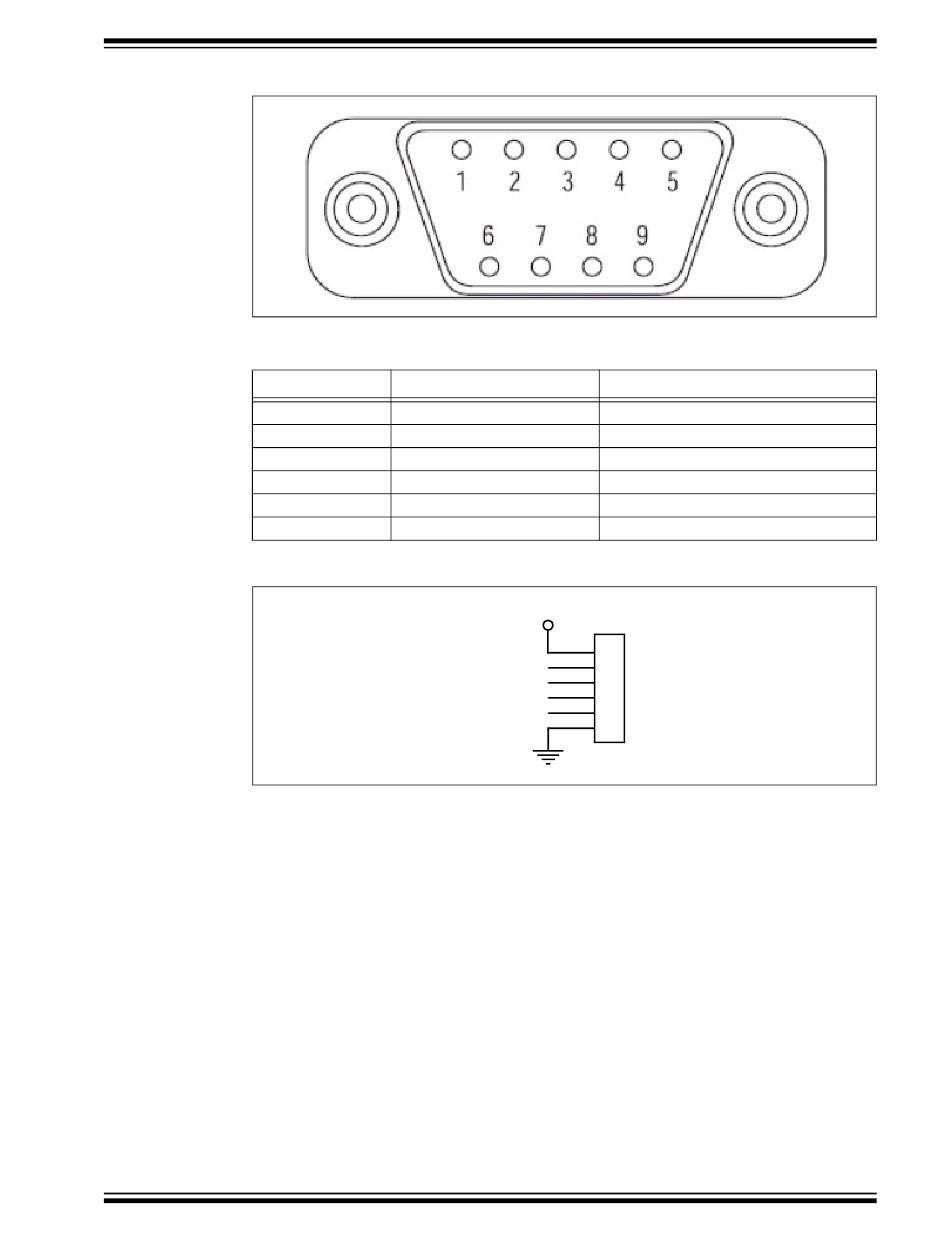

FIGURE 2-1:
TABLE 2-2:
Pin Number
FIGURE 2-2:
 2009-2022 Microchip Technology Inc. and its subsidiaries
PINOUT FOR THE DB9 CONNECTOR
6-PIN SCREW CONNECTOR PINOUT
Signal Names
1
Vcc
2
CAN_L
3
CAN_H
4
RXD
5
TXD
6
GND
PINOUT FOR THE SCREW-IN TERMINALS
Signal Description
®
PIC
MCU Power Supply
Dominant Low
Dominant High
CAN Digital Signal from Transceiver
CAN Digital Signal from PIC18F2680
Ground
V
CC
JP1
1
2
CANL
3
CANH
4
RXD
5
TXD
6
Installation
