eLEDing EE814WDC User Manual

Built with LED Smart Solar Light
IMPORTANT ....
Read this User Manual Before Installing...!!!

Included in this package:

1 – eLEDing Solar Light Body
1 – Wall Mounting Plate w/hardware

Initial Installation (

Refer to Fig. 1)
Connecting the Battery before setting up
1. The battery has been pre-charged before shipping and the light is ready for use
2. Make sure the main switch is in the OFF position
3. Open the battery compartment cover on the back of the light and plug the battery into the connector and carefully make sure the plug
position is correct then replace the cover (Fig. 1-1)
4. Initially check the LED illuminator and battery by moving the main switch to position A or B, it should light up, then turn the switch back
to OFF for installation

Mounting the Light Body

1. The light body must only be mounted in a vertical position and it should be mounted at least 6 to 10 feet above the ground
2. Choose a flat and safe mounting surface. Mark the screw positions through the mounting plate screw holes onto the mounting surface
Use 2 or 4 hole mount, (Fig. 1-2 & 1-3)
3. For wood, vinyl and metal surfaces mount the back plate directly with provided screws. Drill clearance holes using a 3/16" masonry bit
for surface of concrete, brick or stucco. Insert the anchors provided with screws then position the mounting plate and screw the
fasteners in securely
4. Attach the light body unit to the wall mounting plate by connecting the top hinges. Then secure the light body unit in place by
firmly pushing the light body in toward the mounting base where it locks in position, (Fig. 1-4 & 1-5)
5. With the light body firmly secured in it's mounting position, the Pan & Tilt adjustment features can be used to adjust the direction of the
motion detector and the light head directions for optimal performance and coverage. The direction and angle of the motion detector can
be adjusted (Fig. 1-6). The LED light head can also be adjusted horizontally 180

Mounting and Connecting the Solar Panel

1. The solar panel must be mounted in a non-obstructed position where it will receive an average of at least 4 hours daily of direct sunlight
all year round. It should be mounted with a tilt of 35°- 80° degrees (Fig 1-8). A sturdy mounting location such as a wall, roof, on top of
patio, under the eaves, secure pole, or floor/ground base. This is required to make sure the solar panel is fastened down properly for all
weather conditions
2. For Northern hemisphere installations the solar panel should be mounted with a Southerly facing position and visa-versa for Southern
hemisphere installation the solar panel should face to the North (Australia, South Africa, South America e. g.)
3. Attach the hardware mounting bracket to the solar panel. Determine what length of the 10' connecting wire cord is needed to reach
the position of the light body and then tie the unused cord behind the solar panel with the plastic zip-tie that is provided (Fig. 1-9)
4. Then mark the screw holes through the mounting bracket and secure the solar panel in position with the provided hardware
5. Firmly plug the solar panel plug into the bottom of the light body. The RED-LED indicator (inside the motion ball) will begin making
a double flash indicating that charging status is active during a normal sunny, partially sunny or cloudy day (Fig. 1-10). If this does not
happen please check that the plug is fully plugged into the light body or if there is a problem with the wire or solar panel
Yes
Connect the battery
before using!
No
1
P
Pan & Tilt
6

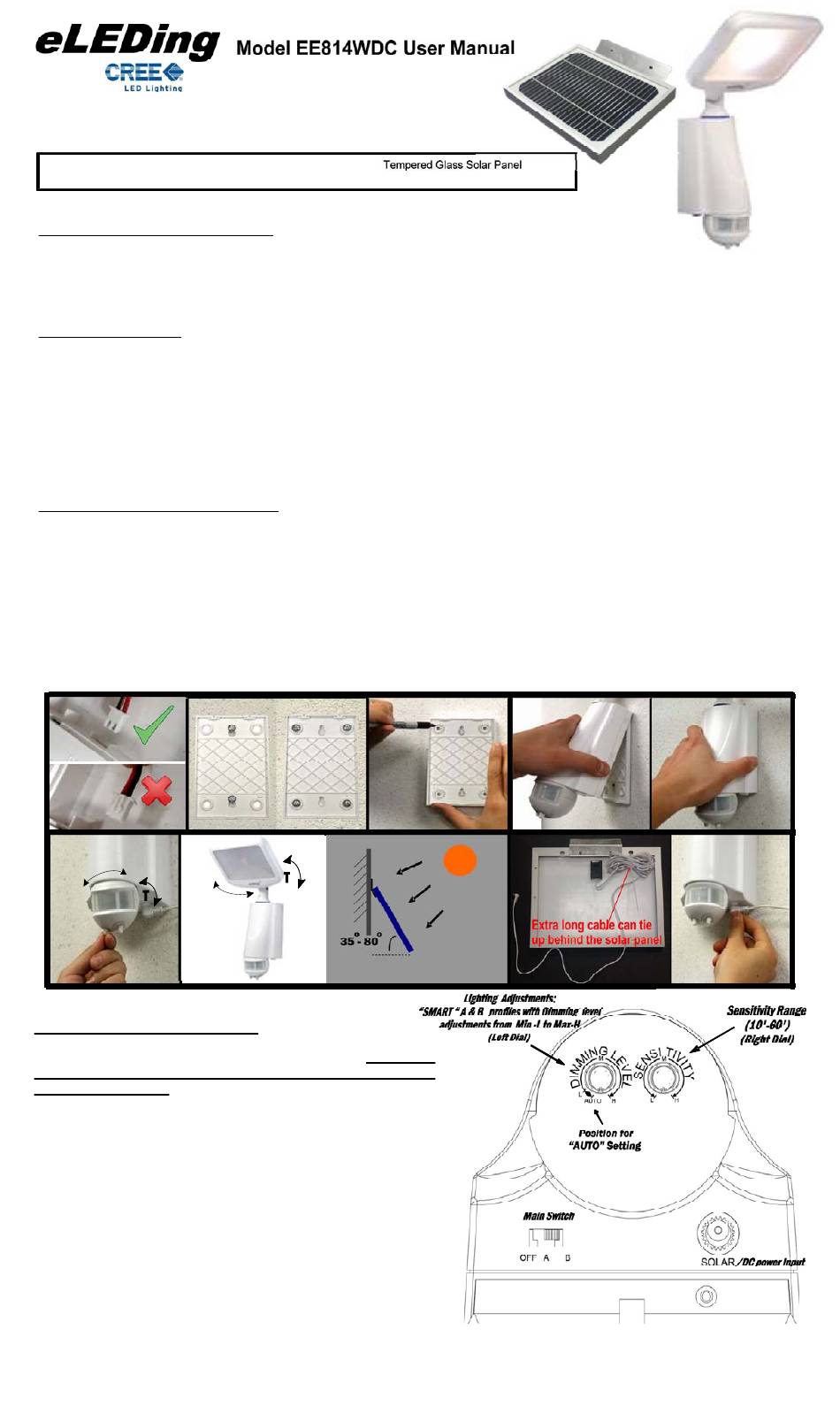

Fig. 1 Installation Steps

3 Mode-Selectable One step Set-up

1. SMART B Profile/Mode (Max-bright adjustable)- This mode
is recommended and can be used for most illumination/
lighting applications:
Set the Main Switch to B in the right position. Set the Left Dial
between L--H for the desired Max-brightness level up from soft-
glow illumination once
recommended), Set the Right Dial between L to H (M to below H
is recommended).
2. SMART A Profile/Mode (Dimming bright adjustable):
Set the Main Switch to A in the center position. Set the Left Dial
between L--H for the desired level of soft-glow illumination when
motion is not detected, (L--M is recommended). Set the Right Dial
between L to H (M to below H is recommended).
3. SMART AUTO Profile/Mode (Motion activated lighting only):
Set the Main Switch to either A or B. Set the Left Dial to AUTO in
the far left position. Set the Right Dial between L to H (M to below
H is recommended).
®
1 – Rechargeable Li-Poly Battery 1 –
2 – Hardware Package with Screws and Anchors
OR
2 Screws 4 Screws
2
P
Pan & Tilt
7
Solar Panel Position
(Refer Fig-2, PG 2&3 more info )
activated by motion,
o , forward and backward 120
3
8
(M--H is
Fig. 2 Light Profiles & Settings
o (Fig. 1-7)
5
4
9
10
Rev. EE814WDC 052015 Page 1
