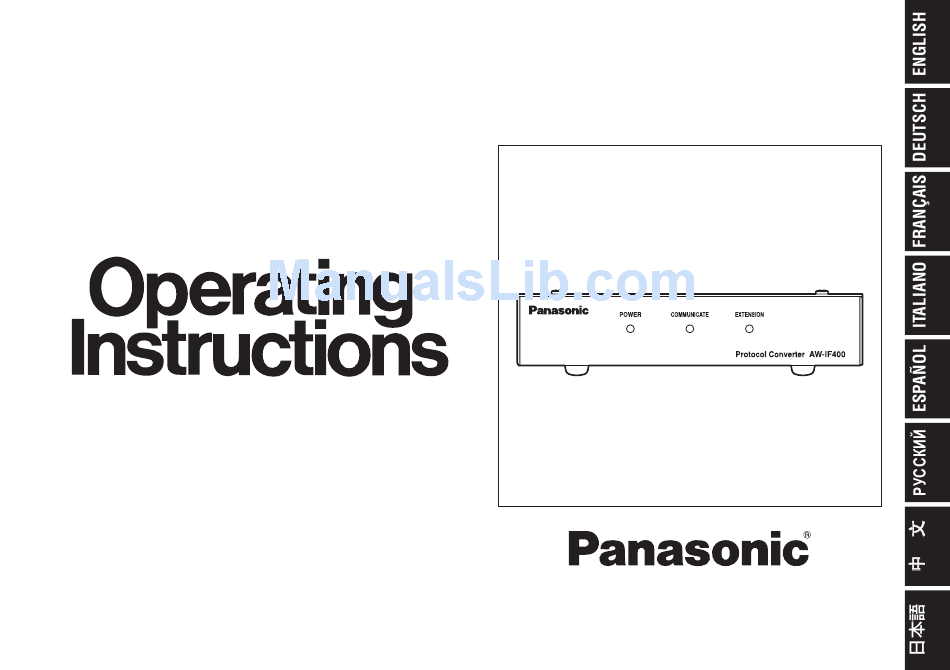

- Page 1 Protocol Converter AW-IF400G Before attempting to connect, operate or adjust this product, please read these instructions completely.
- Page 2 ENGLISH VERSION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
- Page 3 WARNING: • TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. • THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VA S E S , S H A L L B E P L A C E D O N T H E APPARATUS.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. -
Page 5: Table Of Contents
Contents Precautions for use ... 4 Introduction ... 5 Major operating controls and their functions ... 6 Connections ... 9 When controlling AW-PH400 from AW-RP605A (AW-RP605) ... 10 When controlling AW-PH400 from AW-RP555 ... 11 When controlling AW-PH400 from AW-RP655 ... 12 When controlling AW-PH350 from AW-RP400 ... -
Page 6: Introduction
• DIAGONAL MOTION cannot be set from ON to OFF or vice versa. It is always in effect. • PRESET SPEED can be changed by setting DIAGONAL MOTION to ON and adjusting the DIAGONAL SPEED value. • The maximum controllable distance is 1,000 meters between the AW-RP605A and AW-IF400G and 500 meters between the AW-PH400 and AW-IF400G. -
Page 7: Major Operating Controls And Their Functions
12 V input connector . Transmission Status LED [COMMUNICATE] This lights up when data is being transmitted between the controller and pan/tilt head. Extended Distance Transmission LED [EXTENSION] This lights up when this unit is used to extend the transmission distance between AW-RP400 and AW-PH400. -
Page 8: Rear Panel
Major operating controls and their functions Rear panel Controller connector [CONTROLLER] Use the controller CONTROL OUT TO PAN/TILT terminal and a 10BASE-T (equivalent to UTP category 5) straight cable for connection. Pan/tilt head connector [PAN-TILT HEAD] Use the pan/tilt head IP/RP terminal and a 10BASE-T (equivalent to UTP category 5) straight cable for connection. - Page 9 Major operating controls and their functions Function Switches [SW1, SW2, SET UP] (Factory defaults: SW1 = OFF, SW2 = OFF, SET UP No.1 = ON, SET UP No.2 to 4 = OFF) This is used to select the operations of the AW-IF400. Before changing a setting, the power must be turned off.
-
Page 10: Connections
Connections • Before proceeding with the connections, turn off the power. • For further details on connecting the devices, refer to the operating instructions accompanying the devices concerned. • For further details on operating the devices, refer to the operating instructions accompanying the devices concerned. -
Page 11: When Controlling Aw-Ph400 From Aw-Rp605A (Aw-Rp605)
TO PAN/TILT HEAD AC adapter AW-PS505A Control panel Multi-function controller AW-RP605A 10BASE-T (UTP category 5) straight cable (max. 500 m) Protocol converter AW-IF400G • Switch settings AC adapter AW-PS505A - 10 (E) - Zoom lens Camera cable supplied with AW-PH400 Convertible... -
Page 12: When Controlling Aw-Ph400 From Aw-Rp555
When controlling AW-PH400 from AW-RP555 (max. 1000 m) Multi hybrid control panel AW-RP555 AC adapter AW-PS505A 10BASE-T (UTP category 5) straight cable (max. 500 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 11 (E) - Zoom lens Camera cable supplied with AW-PH400 Convertible camera... -
Page 13: When Controlling Aw-Ph400 From Aw-Rp655
(max. 1000 m) Multi-function controller AW-RP655 AC adapter AW-PS505A 10BASE-T (UTP category 5) straight cable (max. 500 m) IP/RP Protocol converter AW-IF400G • Switch settings AC adapter AW-PS505A - 12 (E) - Zoom lens Camera cable supplied with AW-PH400 Convertible... -
Page 14: When Controlling Aw-Ph350 From Aw-Rp400
Remote AW-RP400 operation panel AW-CB400 10BASE-T (UTP category 5) straight cable CONTROL IN IP/RP (max. 1000 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 13 (E) - Zoom lens Camera cable AW-CA50T29 AW-CA50C29 Convertible camera Indoor pan/tilt head AC adapter... -
Page 15: When Controlling Aw-Ph360 From Aw-Rp400
Remote AW-RP400 operation panel AW-CB400 10BASE-T (UTP category 5) straight cable CONTROL IN IP/RP (max. 1000 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 14 (E) - Zoom lens Camera cable supplied with AW-PH360 Convertible camera Indoor pan/tilt head AC adapter... -
Page 16: When Controlling Aw-Ph650 From Aw-Rp400
Pan/tilt control panel Remote AW-RP400 operation panel AW-CB400 10BASE-T (UTP category 5) straight cable RJ-45 relay adapter (max. 1000 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 15 (E) - Outdoor REMOTE pan/tilt head AW-PH650 POWER To be locally purchased •... -
Page 17: When Using The Extended Distance Transmission Function Of Aw-Rp400 And Aw-Ph400
AW-PS505A Pan/tilt control panel Remote AW-RP400 operation panel AW-CB400 10BASE-T (UTP category 5) straight cable (max. 500 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 16 (E) - Zoom lens Camera cable supplied with AW-PH400 Convertible camera IP/RP AC power cable... -
Page 18: When Using The Extended Distance Transmission Function Of Aw-Rp400 And Aw-Ph360
AW-PS505A Pan/tilt control panel Remote AW-RP400 operation panel AW-CB400 10BASE-T (UTP category 5) straight cable (max. 500 m) Protocol converter AW-IF400G AC adapter AW-PS505A - 17 (E) - Zoom lens Camera cable supplied with AW-PH360 Convertible camera Indoor pan/tilt head... -
Page 19: Appearance
Appearance For mounting and other applications, use the screw (M3 screw) holes in the side panels. Do not use screws longer than 10 mm. Unit: inch (mm) M3 screw hole (in 4 locations) (Located in the same positions on both sides) - 18 (E) - 5-11/16 (145) -
Page 20: Specifications
10BASE-T straight cable (UTP category 5) PAN-TILT HEAD: RJ45, modular jack 10BASE-T straight cable (UTP category 5) Switch functions: Controller / Pan/Tilt Head selector switch (SW1, SW2, SET UP) Indicator: POWER, COMMUNICATE, EXTENSION Allowable operating temperature: 14°F to 113°F (–10°C to +45°C) Ambient operating humidity: 30% to 90% (no condensation) Dimensions (WHD):... - Page 21 - 20 (E) -...
