LORA-PULSE manual
LORAWAN pulse meter
LORA-PULSE meter manual
This manual offers a simple 5-step guide for getting started with the sensor, as well as configuration and
information for advanced users.
The LORA-PULSE Industrial communication and control unit is designed with focus on ease-of-use and reliable
operation in LoRaWAN networks.
The product is dedicated to be used together with BMeters' IWM sensor. Normal users will only need to read
the 5-step guide at the beginning of this manual.

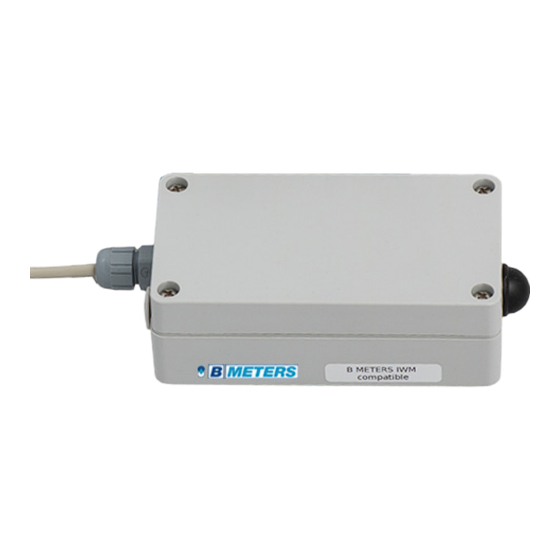

LORA-PULSE
Compatible with pulse module
IWM-PL3 and IWM-PL4
1
User Manual v1.1
Advertisement
Table of Contents
Related Manuals for BMETERS LORA-PULSE LORAWAN pulse
Summary of Contents for BMETERS LORA-PULSE LORAWAN pulse
- Page 1 The LORA-PULSE Industrial communication and control unit is designed with focus on ease-of-use and reliable operation in LoRaWAN networks. The product is dedicated to be used together with BMeters’ IWM sensor. Normal users will only need to read the 5-step guide at the beginning of this manual.
- Page 2 Digital activation Standard devices are configured to use OTAA (Over The Air Activation). It is possible to order a batch of devices configured for ABP (Activation By Personalization). Standard devices are configured with the AppEUI (a.k.a. JoinEUI) 70-B3-D5-D7-2FF8-14-02. It is possible to order a batch of devices configured with a customer unique AppEUI for this contact B METERS support.
- Page 3 When the sensors have been digitally configured it is time to physically activate and install them. The LORA-PULSE is dedicated to use together with BMeters’ IWM-PL3 or IWM-PL4 units. First install and configure the IWM-PL3 or IWM-PL4 unit according to BMeters’ instruction.
- Page 4 Close unit and install in location, you can now view the first data coming in on your application server If you require further support, please contact support@bmeters.com or your vendor. If you require more advanced information on the LORA-PULSE meter, please check the next sections.
- Page 5 Function description The LORA-PULSE counts the pulses output by the IWM-PL3 or IWM-PL4. The corresponding water volume depends on the set “Pulse ratio X”-value in the IWM-PL3 or IWM-PL4, which in turn depends on the type of water meter used. To get the LORA-PULSE to report water volume in liter it is required to set the IWM Pulse Ratio to the same value as Pulse Ratio X in the IWM-PL3 or IWM-PL4.
- Page 6 Commands Index Description Datatype Encoding Valid range Access Unsolicited Description Note 0x03 FW build hash 6 x Uint8 Query Unique number that identifies the firmware version 0x05 Device reset Action Reset of device Read CPU voltage. Max/min ranges depend on battery 0x06 CPU voltage Uint8...
- Page 7 • Set counter value to 100000 Downlink command: 012C000186A0 Contact Info B METERS srl Via Friuli, 3 • Gonars 33050 (UD) • ITALY Tel: +39 0432931415 Fax: +39 0432992661 E-Mail (sales/info): info@bmeters.com E-mail (support): support@bmeters.com Web: www.bmeters.com LORA-PULSE User Manual v1.1...
