Summary of Contents for TPI 707

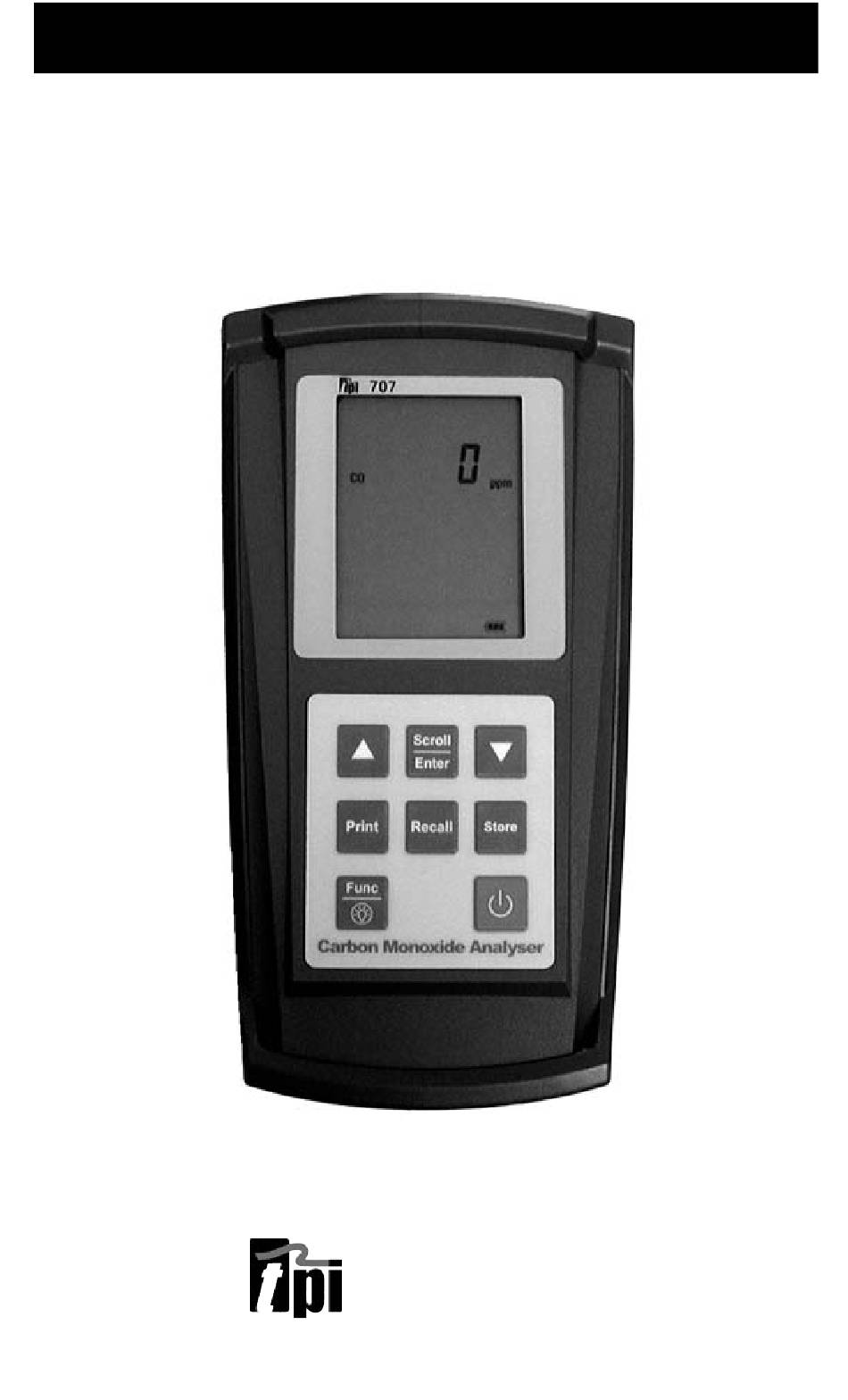

- Page 1 CO Analyzer The Value Leader www.tpi-thevalueleader.com...
- Page 2 Contents • Specifications • Product Features • Standard Accessories • Optional Accessories • General Description • Operating Instructions • Battery Replacement Specifications Power Supply: 4 "AA" Alkaline Batteries Sensor: Long Life Electrochemical Range: O to 10,000ppm Warm up: Approx 20 seconds Response time: 90% of reading <...

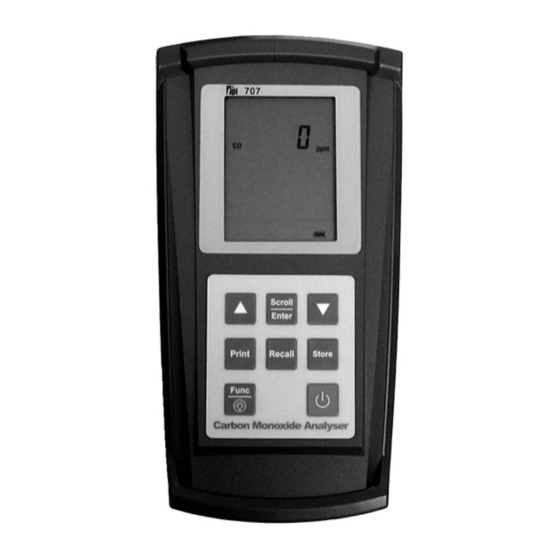

- Page 3 The 707 is an advanced state-of-the-art carbon monoxide (CO) gas analyzer designed to provide part per million readings from 0- 10,000 ppm. The 707 is capable fo performing ambient as well as flue gas checks with its hot air probe and internal pump.
- Page 4 Controls and Push Buttons Inlet Exhaust Port IR Port Turns the 707 On (hold button in for 2 seconds) and Off Toggles beween CO reading and Peak Reading. Used to Scroll save, recall and print stored data. Enter Used for setting date, time and accessing data storage...
- Page 5 (clean air away from the system in question) by holding down the red ON/OFF switch for 2 seconds. 2. The 707 will power up and go through a 30 second self test to ensure the unit is operating properly.
- Page 6 3. Place the shaft of the flue probe into the flue. 4. 707 will measure the CO. Empty water/air filter as needed. 5. The 707 has an alarm that will sound at 500 ppm (factory set) for your safety. NOTE: The instrument has an auto shut off after 10 minutes should no keys have been pressed for this period and as mentioned above that the CO is below 15ppm.
- Page 7 3. Using the up and down arrows, select the desired location to print the readings. 4. Turn on the IR printer and align it with the IR port on the 707. 5. Press the Scroll/Enter key once. The 707 will display “out” and the printer will start printing the data.
- Page 8 Warranty and repair/exchange policy Your TPI 720b is warranted to be free from defects in materials and workmanship for a period of one year after purchase (excluding sen- sor, calibration and batteries). If within the warranty period your instru- ment should become inoperative from such defects, the unit will be repaired or replaced at our option.
