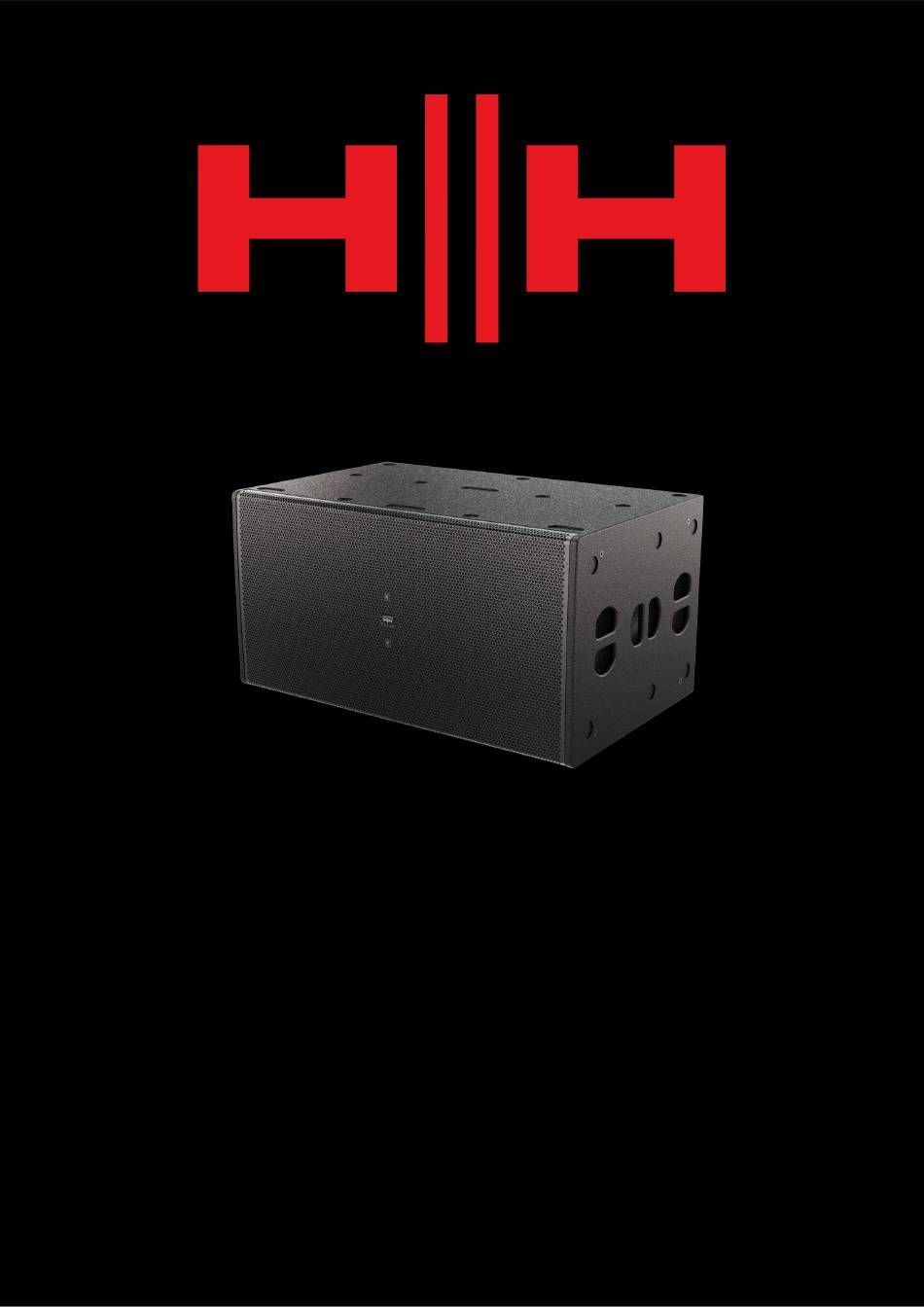

- Page 1 TNA2800-SA Active Subwoofer User Manual TNA-2800SA Active Subwoofer USER MANUAL...
-
Page 2: Table Of Contents
INTRODUCTION ..........................3 FEATURES ..........................3 CONTROLS ............................. 4 INSTALLATION .......................... 7 POWER CYCLE ........................7 FREQUENCY RESPONSE ......................8 CONNECTIONS ..........................9 TECHNICAL SPECIFICATIONS ....................10 DIMENSIONAL DATA ......................11 SAFETY INFORMATION ......................12... -
Page 3: Introduction
2KW RMS total power. Equipped with integrated rigging hardware, the TNA- 2800SA can be installed quickly and easily. The TNA-2800SA offers a max SPL of 144 dB and offers a frequency response as low as 32Hz. The TNA-2800SA offers an ideal venue installation or point source solution. - Page 4 1. INPUT SENSITIVITY This control sets the input sensitivity of the TNA-2800SA. Turned fully anti-clockwise, the system will accept a nominal +10dB signal such as that from a high output mixing console, whereas when set to 0dB it is more suited to lower-level inputs such as those from PA link outs.
-
Page 5: Controls
Can also be used to implement a cardioid function along with the phase switch, multiple subwoofers required. 6. POWER SWITCH Turn on and off the TNA-2800SA - jump to the power cycle section for more information. - Page 6 TWIST LOCK POWER CONNECTOR WIRING INFORMATION The TNA-2800SA comes with an unterminated twist lock power connector compatible connector. It is the user’s responsibility when making the mains cable assembly to ensure the wiring conforms to local regulations / codes. It is vital that cable of suitable gauge is used.
-
Page 7: Installation
WARNING: Due to the heavy weight of the product, at least two persons are required to move and install the TNA-2800SA. The TNA-2800SA comes with four heavy duty castors and fixing screws. If the amplifier is to be a portable system, it is recommended to fit these for easy transportation. -
Page 8: Frequency Response
FREQUENCY RESPONSE... -
Page 9: Connections
The TNA-2800SA as part of a full-range system: Connect the TNA-2800SA as above, from the line level sub-out of the TNA-2120SA, to utilise it as part of a full-range TNA system. Follow the power cycle instructions, and gradually turn the TNA-2800SA input sensitivity up to a suitable level, this should be around 10-11o’clock. -
Page 10: Technical Specifications
Specifications TNA-2800SA Model System Type Dual 18" Active Subwoofer, Direct Radiating, Bass Reflex Frequency Response2 32Hz - 100Hz (-10dB) 37Hz - 100Hz (-3dB) 2x18'' High sensitivity HH designed driver. 4" Voice Coil LF Driver Max SPL 1m3 Crossover Active - 70Hz to 120Hz... -
Page 11: Dimensional Data
DIMENSIONAL DATA... -
Page 12: Safety Information
In order to take full advantage of your new product and enjoy long and trouble-free performance, please read this owner's manual carefully, and keep it in a safe place for future reference. 1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the HH factory to your dealer. - Page 13 Mark (93/68/EEC), Low Voltage (2014/35/EU), EMC (2014/30/EU), RoHS (2011/65/EU), ErP (2009/125/EU) SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, HH Electronics Ltd. declares that the radio equipment is in compliance with Directives 2014/53/EU, 2011/65/EU, 2009/125/EU. Full text of the EU declaration of conformity is available at the following internet address: http://support.hhelectronics.com/approvals...
- Page 14 HH ELECTRONICS LTD. STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. HH ELECTRONICS IS PART OF HEADSTOCK GROUP IN THE INTEREST OF CONTINUED DEVELOPMENT, HH RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTICE V0.1...
