OPERATING MANUAL FOR DIGITAL MONITOR INS-MP7

GENERAL INFORMATION

Digital video monitor INS-MP7 is compatible with outside stations FAMILIO PV and INSPIRO for multi apartment
buildings where video and audio communication is essential.

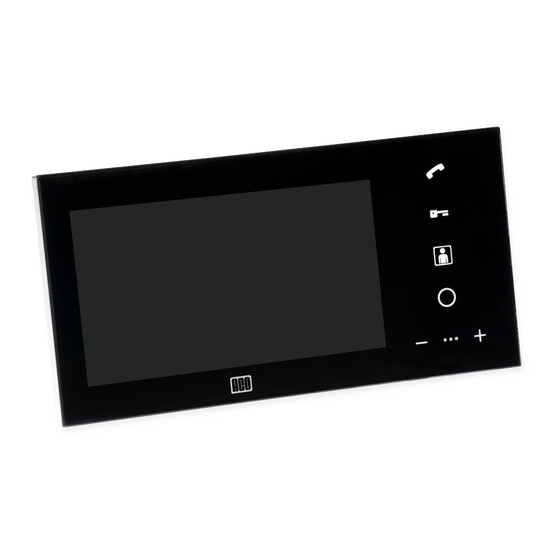

Video monitor has modern design and its front is made of glass. Hands free system eliminates usage of receiver
for conversation. The front panel is equipped with touch keypad with back lit operating icons.
INS-MP7 monitor is functional even if more monitors are connected to the same address. It has also ability to
control outside door bell, adjusts ringing and conversation volume, adjusts picture preferences, can control home
automatics, supports full privacy of conversation, camera preview and opens gate without connected conversation.

TECHNICAL PARAMETER

LCD screen diagonal
•
Front material
•
Mounting plate dimension
•
Monitor front dimension
•

OPERATION

When the monitor receives a call from the outside unit the screen goes on, enables preview from camera and
rings. The icons of receiver, key and monitor pulse one by one. In order to answer the call, press the receiver. After
answering the call, voice connection will be made and the icons of receiver, key and monitor will become brighter.
Additionally icons of the volume adjustment will enlighten and control over volume will be possible with + and – icons.
Mute of conversation (dark volume icons) causes mute of the monitor's microphone. The end of conversation is made
with the receiver icon.
7" (640x480)
Glass
14cm x 9,2cm
24cm x 12cm
