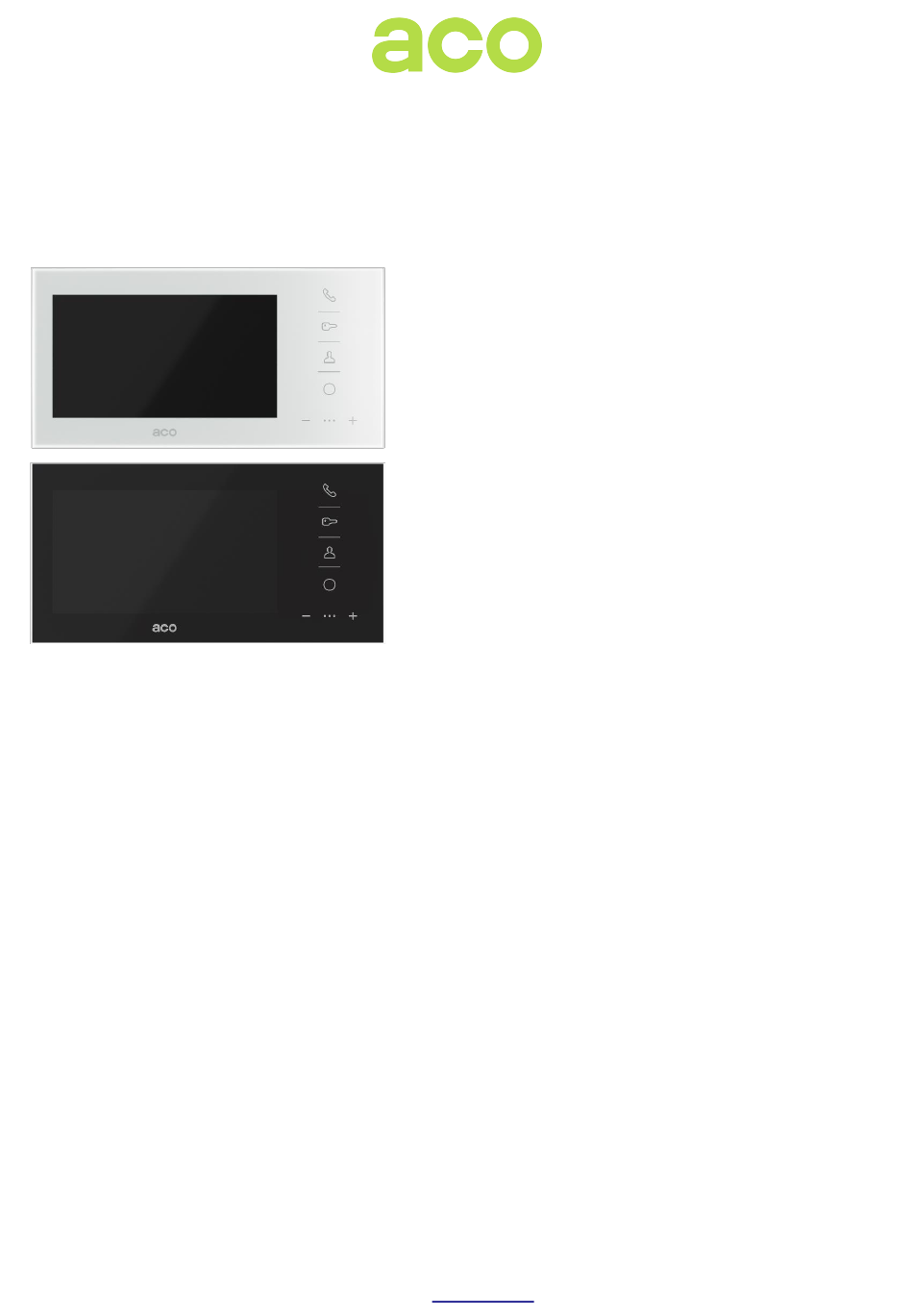

OPERATING AND MOUNTING MANUAL FOR DIGITAL VIDEO MONITOR
Selected features:
Touch and backlit white icons,
•
•
Full conversational privacy,
Internal communication support (intercom),
•
•
8 melodious doorbells
•
7-step volume control
•
Individually adjustable call signals and volume in each monitor
Support for up to 1023 independent call addresses
•
•
Multiple monitors in the same apartment can be connected
•
Support for 3 individual intercom addresses (independent of the call address) or support for 2 individual
intercom addresses (within the call address) and 1 intercom address (independent of the call address)
•
Option to set the "0" call address - the monitor will call every address.
Built-in doorbell feature input
•
•
Option to program software settings and updates on the bus of a selected monitor or all monitors at once
in the system (PRO-USB module required)
•
Individual numbers for each monitor (Dev ID)
Compatibility with earlier generations of the PRO system
•
•
Control of external devices, such as a gate, barrier, blinds, lighting (optional PRO-I / O module required).
•
Option to connect up to 4 additional cameras can be connected (optional VIDEO-SW2 MINI-60 module)
ACO Sp. z o.o. limited partnership, ul. Diamentowa 7, 62-002 Suchy Las, Poland; phone/ fax +48 61 843 93 72
for PRO system:
GLASS-PRO-7 (
generation 3
The digital video intercom system PRO is designed for single and
multi-family solutions, where video signal transmission with audio
signal is required. It also allows for internal communication (intercom)
between inside video monitors. The system topology is based on
twisted-pair cable of category 5e or higher (UTP cable). Dedicated,
energy-saving switched-mode power supply has a built-in video
splitter: 1 control panel input and up to 3 inside video monitor
outputs.
More PRO system features (support for more inside monitors,
connection with others, and description of typical problems) can be
found in the Operating Manual of Digital COMO PRO Panel
available at www.aco.com.pl

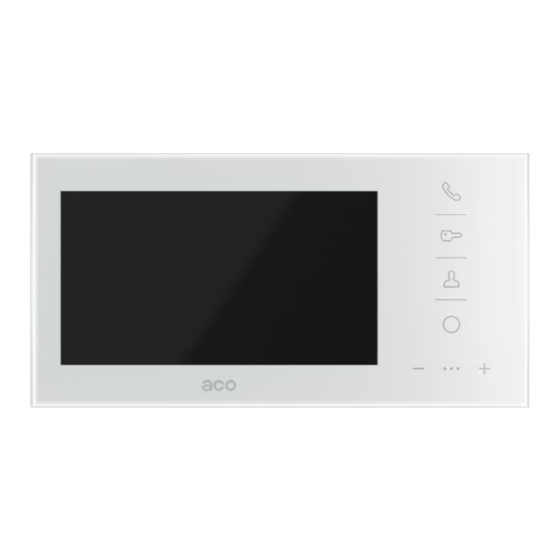

The inside video monitor has a modern look and its completely flat
front is made of glass. The hands-free system eliminates the need
to use a handset for calls. On the front panel, next to the 7-inch
display there is a touch keyboard with backlit icons for operating the
monitor.
www.aco.com.pl
)
GENERAL INFORMATION
Advertisement
Table of Contents
Related Manuals for ACO GLASS-PRO-7
Summary of Contents for ACO GLASS-PRO-7
- Page 1 Control of external devices, such as a gate, barrier, blinds, lighting (optional PRO-I / O module required). • Option to connect up to 4 additional cameras can be connected (optional VIDEO-SW2 MINI-60 module) ACO Sp. z o.o. limited partnership, ul. Diamentowa 7, 62-002 Suchy Las, Poland; phone/ fax +48 61 843 93 72 www.aco.com.pl...
- Page 2 OPERATION When an external panel is calling, the monitor rings the doorbell, flashes the handset, key and monitor icons in succession, and activates the display, showing the view from the calling panel's camera. A call is answered by touching the handset icon. Once it is answered, a voice call to the panel is set up, and the handset, key and monitor icons are brightened.
- Page 3 SETTINGS In standby mode, the following monitor settings can be adjusted: doorbell selection, ring volume, and brightness and saturation of the image. The ringing volume is adjusted with the + or - icons. The first time one of these icons is touched, the monitor will play the set doorbell and will show the currently set volume on the volume bar.
- Page 4 Used electric appliances may not be stored together with other waste. They should be stored in designated places. For this purpose, please contact the responsible institutions or companies dealing in waste recycling. - Directive 2002/96/EC/ of 27.01.2003 ACO Sp. z o.o. limited partnership, ul. Diamentowa 7, 62-002 Suchy Las, Poland; phone/ fax +48 61 843 93 72 www.aco.com.pl...
