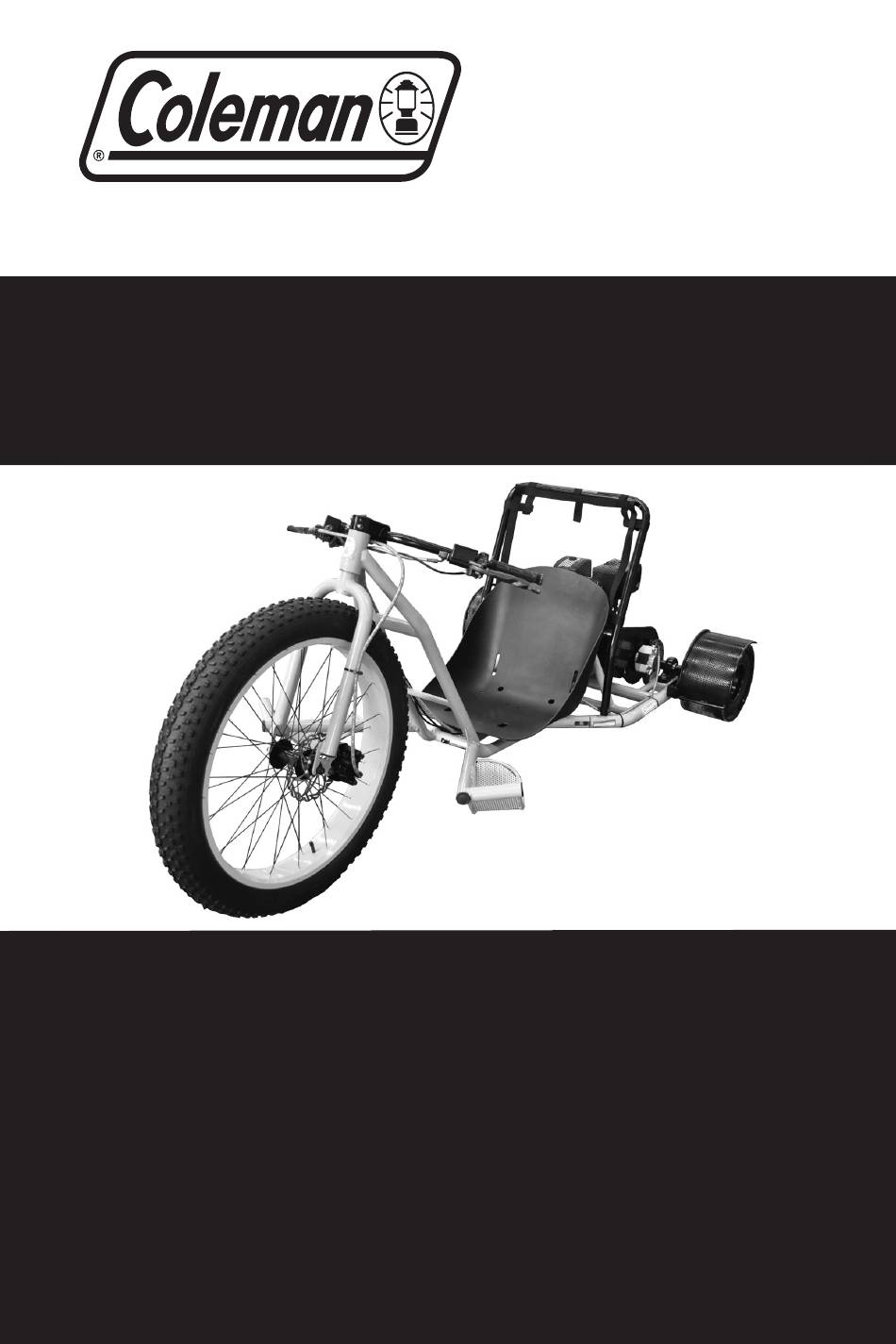

POWERSPORTS
DT200
ASSEMBLY INSTRUCTIONS
PLEASE NOTE THAT THIS IS NOT THE OWNER'S MANUAL BUT THE
ASSEMBLY INSTRUCTIONS ONLY.
BEFORE OPERATING THIS DRIFT TRIKE, MAKE SURE THE OPERATOR
HAS READ AND UNDERSTANDS THE OWNER'S MANUAL, WARNING
LABELS AND IS FAMILIAR WITH ALL OF THE DRIFT TRIKE
CONTROLS.
FOR QUESTIONS REGARDING THE ASSEMBLY OF THIS DRIFT TRIKE,
PLEASE CALL COLEMAN POWERSPORTS 888-405-8725
REV090117
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Coleman Powersports DT200
Summary of Contents for Coleman Powersports DT200
- Page 1 BEFORE OPERATING THIS DRIFT TRIKE, MAKE SURE THE OPERATOR HAS READ AND UNDERSTANDS THE OWNER’S MANUAL, WARNING LABELS AND IS FAMILIAR WITH ALL OF THE DRIFT TRIKE CONTROLS. FOR QUESTIONS REGARDING THE ASSEMBLY OF THIS DRIFT TRIKE, PLEASE CALL COLEMAN POWERSPORTS 888-405-8725...
- Page 2 PARTS Frame Tool Kit Owner’s Manual Safety Net Foot Rests Seat...
-
Page 3: Frame Assembly
FRAME ASSEMBLY M8 x 25 Bolts 6mm Allen wrench M8 Lock Washers Tools M8 Acorn Nuts Hardware Attach frame together using M8 x 25 Allen head Bolts M8 lock washers M8 Acorn Nuts Torque bolts to 20 ft.lbs. -
Page 4: Handlebar Assembly
HANDLEBAR ASSEMBLY 6mm Allen wrench M8 Lock Washers M8 x 30 bolts Tools Hardware Install handlebars using M8 x 30 Allen head bolts and M8 Lock washers. Torque bolts to 10 ft.lbs M8 x 30 bolts M8 Lock Washer... - Page 5 ZIP TIE CABLES Zip Ties Zip Tie Zip tie all cables to frame in locations noted in photos. Make sure no cables are in a location which could be smashed or pinched by the handlebars or seat. Cut off ends of Zip ties once installed.
- Page 6 SAFETY NET INSTALLATION M8 Lock Nuts M8 x 30 bolts 10mm and 12mm Hardware Wrench Tools Safety Net assembly Install Safety net asssembly using M8 x 30 Bolts and M8 lock nuts. Tighten Bolts snug. M8 x 30 Bolt M8 Lock Nut...
-
Page 7: Seat Installation
SEAT INSTALLATION M6 lock nuts M6 x 12 bolts 10mm wrench 5mm Allen Wrench Tools M6 x 16 bolts Hardware M6 x 16 bolt Install the seat using M6 x 12 front bolts and M6 x 16 rear bolts and M6 rear Lock nuts. - Page 8 FOOT REST INSTALLATION 10mm wrench M8 x 20 bolts Tools Hardware Install Foot rests using M8 x 20 bolts. Torque Bolts 14 ft.lbs. M8 x 20 Bolt...
- Page 9 ENGINE PREPERATION, PRE-RIDE INSPECTION AND STARTING INSTRUCTIONS. NEVER START THE ENGINE WITHOUT READING AND FULLY UNDERSTANDING THE OWNER’S MANUAL AND ALL WARNINGS. IF YOU DID NOT GET AN OWNER’S MANUAL WITH THIS DRIFT TRIKE, PLEASE CALL COLEMAN POWERSPORTS AT 888-405-8725.
