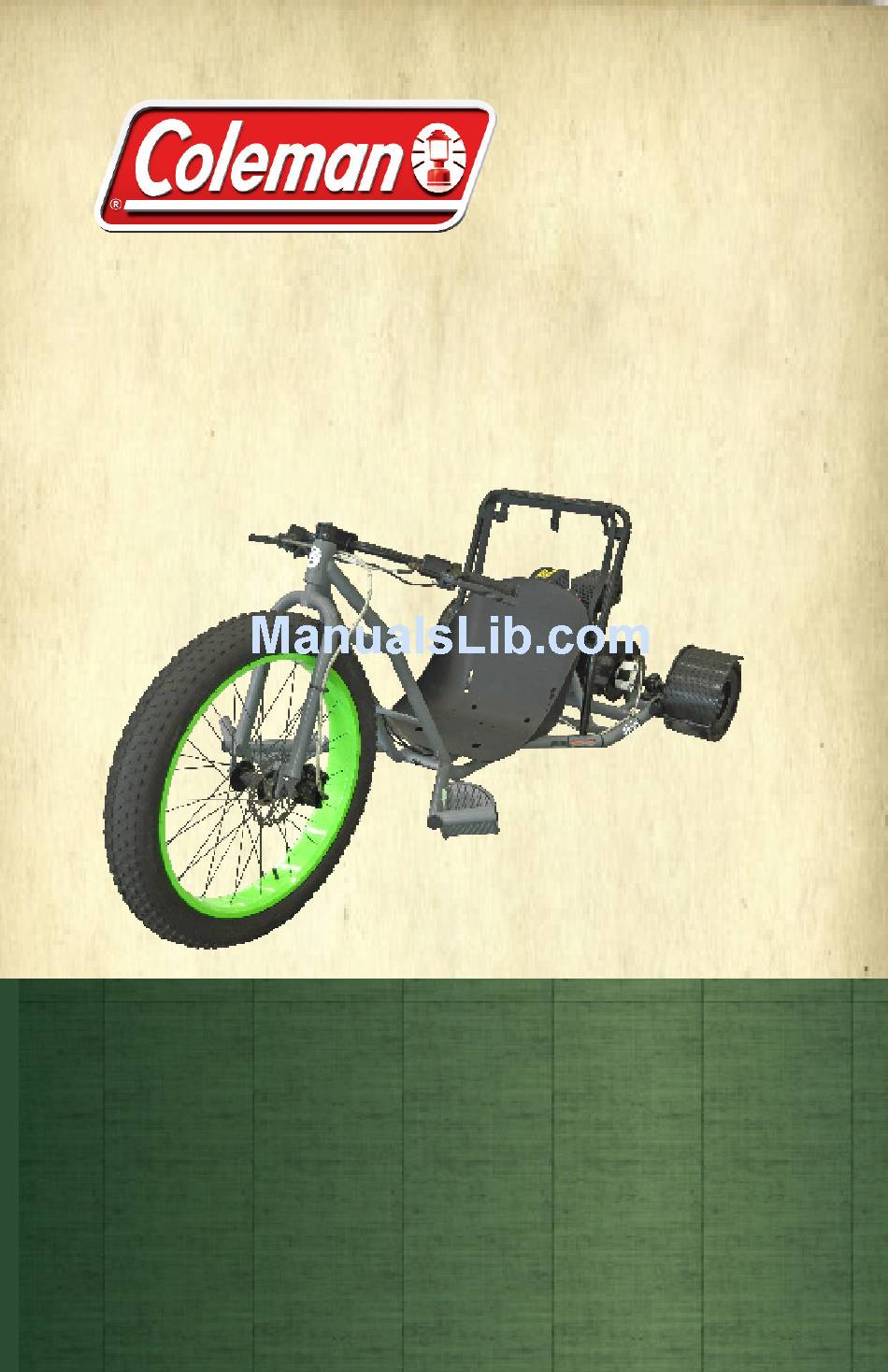

POWERSPORTS
OWNER'S MANUAL
No one under the age of 16 should operate this Drift Trike.
Always wear a helmet it could save your life!
Model: DT200
READ THIS MANUAL CAREFULLY!
Provincial / Municipal governments have different
regulations pertaining to owning and operating an
off-road vehicle, learn the regulations in your area
.
(888)-405-8725 Coleman Powersports
92811
364 S Smith Rd. Tempe, AZ. 85281
REV 042517
www.colemanpowered.com
