BMA0600 Input module
Application
The input module with 6 analog inputs receives analog signals in
the DDC4000e automation system.
LED displays for the operating states of the inputs.
Communication is controlled via LED.
Label carrier for system-specific description.
The power supply and the CAN bus are electrically isolated.
Data is transferred between the automation station and the input
module via the CAN bus.
The input module can be connected to an existing switch cabinet
bus or field bus.
Content
Important Information on Product Safety ...............................................................................................................2
Item........................................................................................................................................................................3
Technical Data.....................................................................................................................................................3
Dimensions ..........................................................................................................................................................5
Connection...........................................................................................................................................................5
Installation..............................................................................................................................................................7
Mounting ................................................................................................................................................................8
Removal.................................................................................................................................................................8
Function and Operation .........................................................................................................................................9
Commissioning ....................................................................................................................................................10
LED displays......................................................................................................................................................11
Kieback&Peter GmbH & Co. KG
Tempelhofer Weg 50, 12347 Berlin/Germany
Telefon: +49 30 60095-0, Telefax: +49 30 60095-164
www.kieback-peter.de, info@kieback-peter.com
J
Product description
BMA0600
Page
2.60-80.600-01-EN | 2020-08-03
Advertisement
Table of Contents
Related Manuals for Kieback&Peter BMA0600
Summary of Contents for Kieback&Peter BMA0600
-
Page 1: Table Of Contents

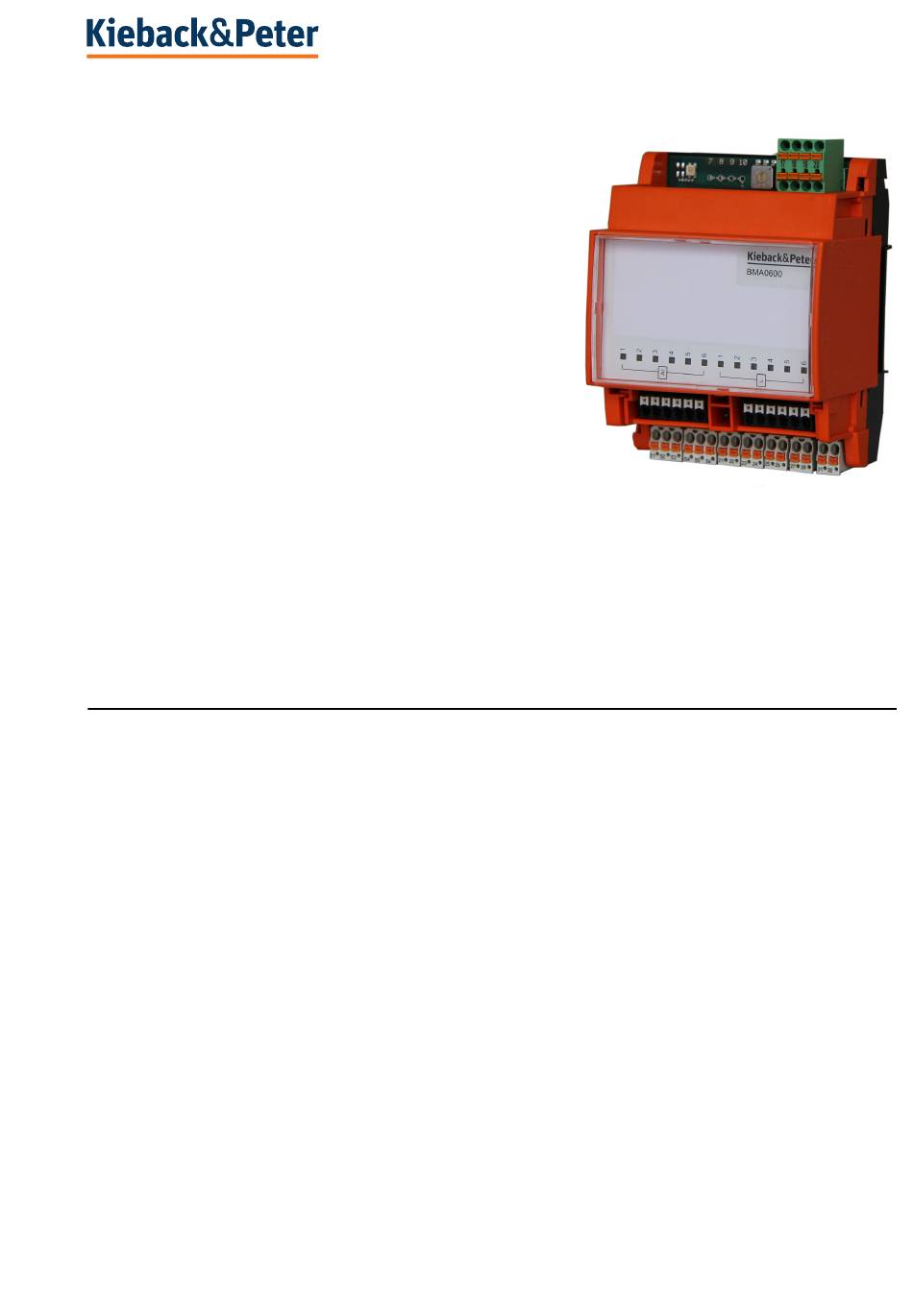

Product description BMA0600 BMA0600 Input module Application The input module with 6 analog inputs receives analog signals in the DDC4000e automation system. LED displays for the operating states of the inputs. Communication is controlled via LED. Label carrier for system-specific description. -
Page 2: Important Information On Product Safety
Important Information on Product Safety Safety instructions This document contains information on installing and commissioning the product “BMA0600”. Each person who carries out work on this product must have read and understood this document. If you have any questions that are not resolved by this document, you can obtain further information from the supplier or manufacturer. -
Page 3: Item
Product description BMA0600 Item BMA0600 Input module with 6 analog inputs Technical Data Nominal voltage 12..24 V DC ± 10 %; 2.5 W Inputs and outputs ■ 6 analog inputs, See chapter “Sensor Types”, page 4. separate auxiliary power (terminal 53, 56) 10 V DC; 70 mA ■... - Page 4 Product description BMA0600 Connection terminal ■ Spring-loaded terminals, printers ■ All terminals can be inserted with conductor end sleeves of 10 mm length ■ Twisting two conductors is not permitted, twin wire-end ferrules can be used Input terminals Support terminals Bus terminals Terminal 81..86...
-
Page 5: Dimensions
Product description BMA0600 NOTE You can find more information on the sensor types in the “Temperature Sensor Tables” product description (1.10-90.100-01). Dimensions 71,8 60,0 Connection NOTE The devices have galvanic isolation between the bus voltage supply and the input. This is a separation of duties that prevents unwanted ground loops. - Page 6 Product description BMA0600 DDC4000e connection BMA0600 17 18 19 20 CAN 1 12..24V= DDC4000e CAN 2 DDC4000e Sensor connection 0..10VDC 0..10VDC 0V A 24V 0V A KP10 500k - Connection of several input/output modules via CAN bus Can- Can+ 12..24V=...
-
Page 7: Installation
Product description BMA0600 Installation CAUTION This product description contains the specific settings and functions of the input module. In addition to these instructions, the product descriptions of other system components, such as the automation station, are to be observed. CAUTION Switching on the power supply of unparameterized products can lead to unforeseen consequences such as malfunctions or material damage. -
Page 8: Mounting
Product description BMA0600 Mounting WARNING Contact with live parts of electrical domestic installation can cause death due to electric shock. Mounting/removal may only be carried out when power is switched off. TH 35-7.5 Removal 2.60-80.600-01-EN | 2020-08-03 Page 8 / 12... -
Page 9: Function And Operation
Product description BMA0600 Function and Operation (1) Combi LED (green, red) CAN bus (2) Address switch (3) Status LEDs of inputs (4) freely parameterizable LEDs Parameterization The following functions are defined via parameterization: - Analog inputs can be configured according to the sensor type table NOTE Parameterization is retained in the event of a power failure. -
Page 10: Commissioning
Product description BMA0600 NOTE In the delivery state, the address is set to “00”, meaning: - no bus communication - no parameterization possible - sensor inputs in test mode Commissioning CAUTION Commissioning by switching on the supply voltage may occur only after the commissioning technician/engineer has finished configuring the DDC and has set the bus address. -
Page 11: Led Displays
Product description BMA0600 LED displays LED CAN Bus LED status (combination Meaning Cause LED) Module not in operation No operating voltage or operating voltage too low Yellow on (green LED and red Module in operation, but Bus line short circuit (with respect to... - Page 12 Product description BMA0600 2.60-80.600-01-EN | 2020-08-03 Page 12 / 12...
