CHAIN BREAKER, PRESS AND RIVETING TOOL P/N 08-0467

Thank you for purchasing the Motion Pro Chain Breaker and Riveting Kit, P/N 08-0467. This kit will break, press on side

plates and rivet hollow-nosed master links on chains from #520 to size #532. For heavy-duty applications or for solid-

nosed riveting please refer to Motion Pro part number 08-0135 Jumbo Chain Tool and part number 08-0142 Quad

Stake Riveting Tool.

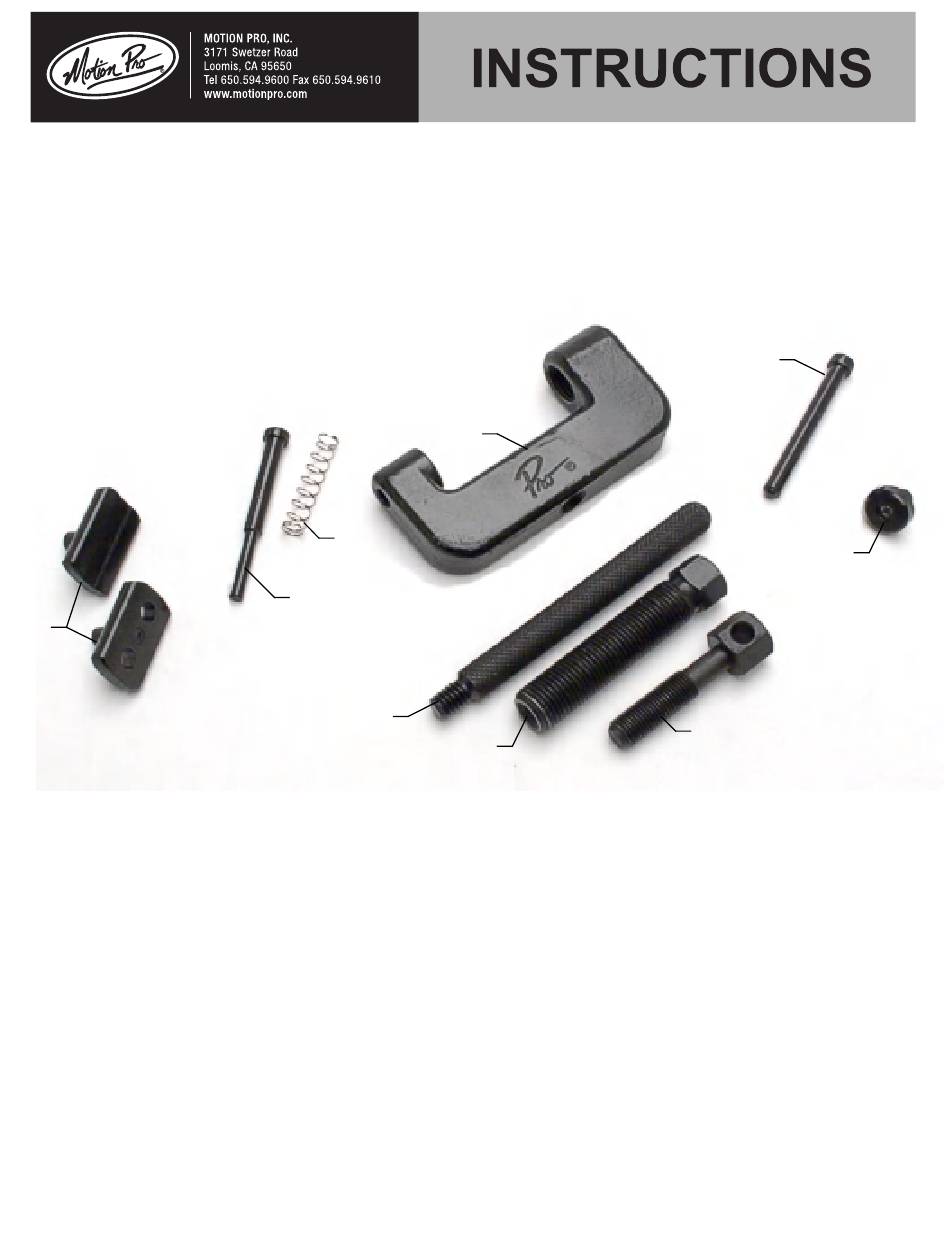

IMAGE A

A. Body, C08-058A

B. Press Plates (set), 08-0067

C. Handle

• Read all instructions for each procedure before beginning. Improper use of the tool can cause breakage.

• Make sure the tool is clean and apply grease to all threads before assembling and using. This will help the tool

operate more smoothly and allow you to feel tension when using the tool.

• When breaking drive chains larger than #520, grind off the rivet head first to create a flat surface for

placement of the extractor pin tip. The flat surface will help to prevent the extractor pin from becoming misaligned

with the chain pin and contacting the chain side plate, therefore, significantly reducing the load on the tool and helping

to prevent damage to the extractor pin.

• All tightening procedures are to be performed by hand only, using a 14mm wrench. Do not use extensions or

power tools of any kind or the tool may be damaged.

I08-0467

D. Body Bolt, C08-058B

E. 3.8mm Extractor Pin, 08-0061

F. Spring, C08-001D

Page 1 of 4

G. Rivet Tip, 08-0062

H. Large Anvil, C08-058D

I. Extractor Bolt, C08-058C

10/2016

Table of Contents

Need help?

Do you have a question about the 08-0467 and is the answer not in the manual?

Page 1 CHAIN BREAKER, PRESS AND RIVETING TOOL P/N 08-0467 Thank you for purchasing the Motion Pro Chain Breaker and Riveting Kit, P/N 08-0467. This kit will break, press on side plates and rivet hollow-nosed master links on chains from #520 to size #532. For heavy-duty applications or for solid- nosed riveting please refer to Motion Pro part number 08-0135 Jumbo Chain Tool and part number 08-0142 Quad Stake Riveting Tool.
Page 2 BREAKING CHAINS Assemble the tool as shown in Image B and the diagram below for breaking chains. Thread the body bolt into the body. Insert the extractor pin into the spring and drop them into the body bolt with the spring under the pin head. Thread the extractor bolt into the body bolt above the pin.
Page 3 * Refer to the chain manufacturer’s specifications for distance of chain pin protrusion, and direction and installation of master link clips. All chains are different, and Motion Pro cannot provide the exact specifications for your chain. Page 3 of 4...
Page 4 RIVETING CHAIN PINS Assemble the tool as shown in Image E for riveting hollow-nosed master link pins. Thread the body bolt into the body. Insert the rivet tip into the spring and drop them into the body bolt with the spring under the tip head. (Refer to internal diagram with Image B).
