Motion Pro 08-0058 Instructions

Thank you for purchasing the Motion Pro Chain Breaker and Riveting Tool. This tool is designed for light to
medium-duty use. It will break chains up to size #630, press master link plates on chains up to #530, and rivet
hollow nosed master link pins on chains up to #630. For heavy-duty applications or for solid-nosed riveting
please refer to Motion Pro part number 08-0135 Jumbo Chain Tool and part number 08-0142 Quad Stake
Riveting Tool.
J
L
G

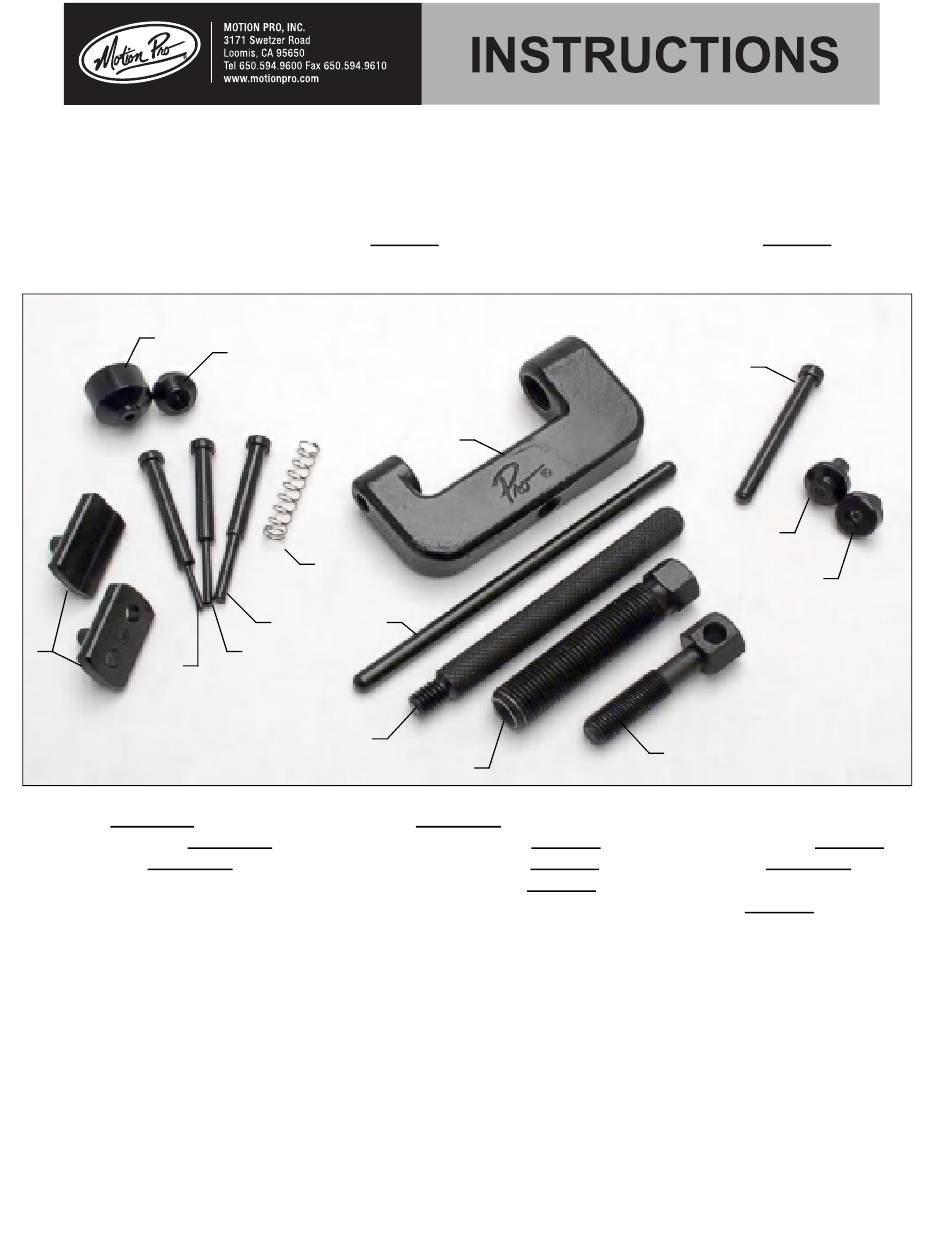

IMAGE A
A – Body, C08-058A
B – Alignment Bolt, C08-058B
C – Push Bolt, C08-058C
D – Lever
E – Handle
-Read all instructions for each procedure before beginning. Improper use of the tool can cause
breakage.
-Make sure the tool is clean and apply grease to all threads before assembling and using. This will help the
tool operate more smoothly and allow you to feel tension when using the tool.
-When breaking #520 or larger drive chain, it is recommended to grind off the rivet heads first. This will
significantly reduce the load on the tool and help prevent premature wear or damage to the breaking tips.
-All tightening procedures are to be performed by hand only, using the lever or a 14mm wrench. Do not use
extensions or power tools of any kind or the tool may be damaged.
I08-0058
Chain Breaker and Riveting Tool P/N 08-0058
K
F
I D
H
E
F – Spring, C08-001D
G – 2.2mm Breaking Tip, 08-0059
H – 2.9mm Breaking Tip, 08-0060
I – 3.8mm Breaking Tip, 08-0061
J – Upper Guide for 2.2mm tip
A
B
1 4
of
O
N
C
K – Lower Guide for 2.2mm tip
L – Press Plates (set), 08-0067
M – Large Anvil, C08-058D
N – Small Anvil
O – Rivet Tip, 08-0062
M
