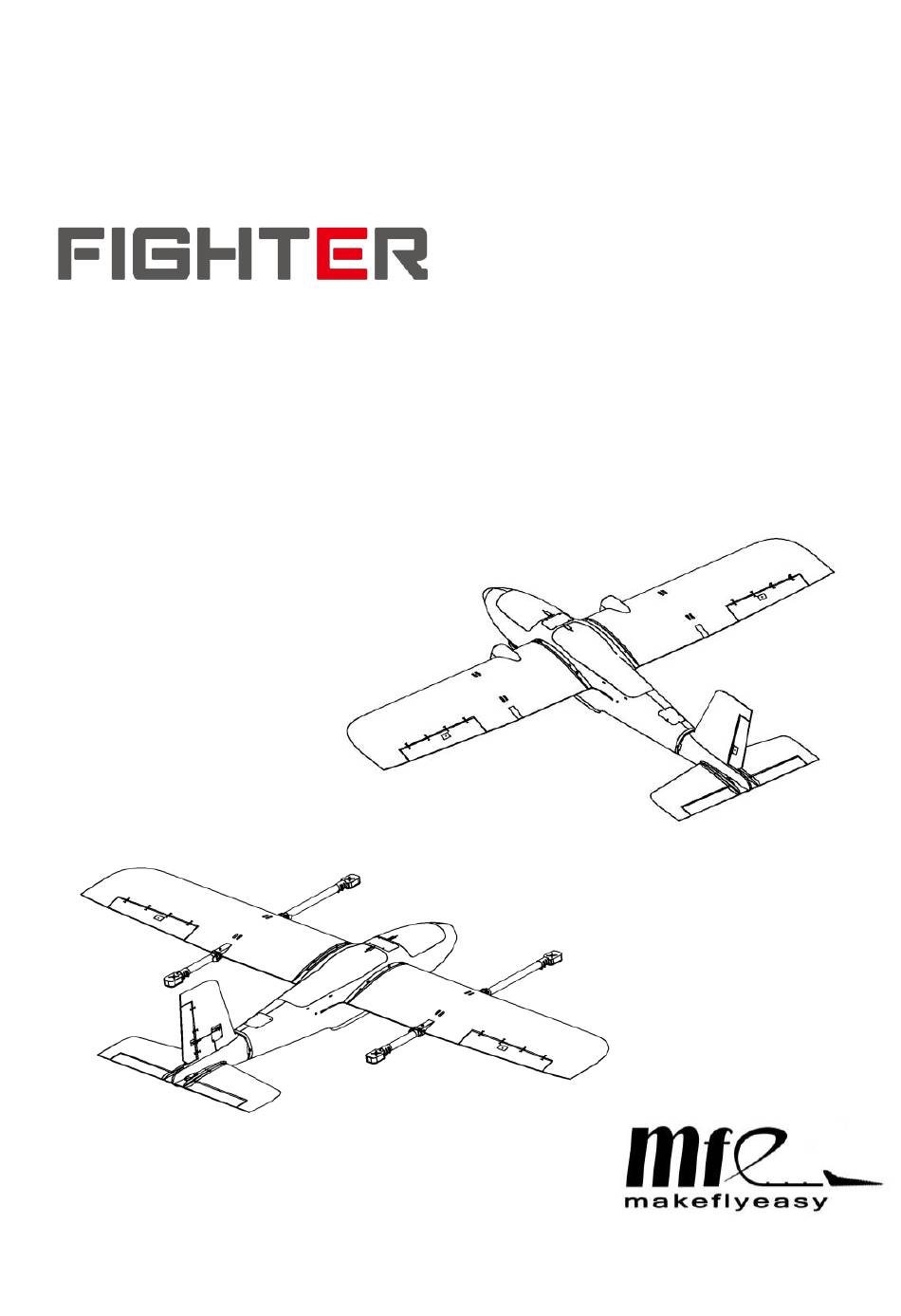

- Page 1 奋斗者 用户手册 V1.0 User ManualV1.0 2020.04...
- Page 2 于地形测绘、实景三维、农林牧防护、电力巡线、环保、水利等方面。 The fighter is a 10kg fixed-wing flight platform (hand parachute/VTOL), which is easy to carry,friendly to operate,stable and durable.The fighter is positioned as a heavy-duty,long-endurance fixed wing,which greatly reduces the difficulty of aerial survey,further liberates productivity and improves the efficiency of aerial survey.
- Page 3 产品规格 材质：EPO、EVA、碳纤维、PC、工程塑料等 翼展：2430mm 机身高：180mm 机身长：1450mm 翼面积：72.5dm 推荐飞行速度：17~20m/s 失速速度：10m/s 推荐有效载荷：<2500g 载荷舱尺寸:280*160*110mm 最大航程：>150km(600g 负载) 最大起飞重量：11.5kg 实用升限：4000m 抗风能力：5 级 起降方式：垂直起降/手抛 拆装方式：无工具拆装 运输箱寸：1.26m×0.35m×0.495m Products specifications: Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc. Wing Span: 2430mm Fuselage height: 180mm Fuselage length: 1450mm Wing area: 72.5dm Suggested flight speed: 17~20m/s Stalling speed: 10m/s Suggested payload: <2500g Payload bay size: 280*160*110mm...
- Page 4 3. 在安装电机座时注意调至水平。 3. Please adjust the front and rear motor frame to the level during installation. 4. 奋斗者电源供电方案请参考下图。 4. Please refer to below the Fighter power supply conceptual drawing when you were confused by the Installing sequence.
- Page 5 奋斗者供电方案图 Fighter power supply conceptual drawing 手抛版 巡航电机*2 副翼舵机*2 Hand Cruise motor*2 Aileron servo*2 22222222 22222222 平尾舵机*2 电池 horizontal tail servo*2 Battery Bec5V10A 垂尾舵机*1 22000 vertical tail servo*1 数传供电 Bec5V3A Data transfer power supply 飞控供电 Bec5V3A Control flight power supply 巡航电机*1...
- Page 6 飞行注意 Flying Attentions 1. 请避免在 10m/s 以下的速度飞行转弯，以免飞机失速。 1. Don’t cornering when the aircraft flying speed was less than 10m/s,or the aircraft maybe stalling. 2. 飞行前请务必检查电机、螺旋桨安装正确稳固，电调信号线和电源线 插头连接紧固可靠。 2. Ensure the motor and propeller were installed correctly and toughly before flying,inspecting the ESC signal wires and power wires plug,ensure they were connected toughly.
- Page 7 盒内物品清单 Contents in the box EPO 部件 EPO Parts 1 左右机翼 1 left & right wing 2 水平尾翼 2 horizontal tails 3 垂直尾翼 3 vertical tail 4 左右机身 4 left & right fuselage 5 机舱盖 5 Cabin cover 6 双发电机座 6 Motor mount on wing...
- Page 8 碳管部件 Carbon tube parts 1 机身支撑碳管 2 机身尾翼连接碳管 1 Fuselage supporting carbon tube 2 Fuselage & tail-fin carbon tube 16*14*260mm 16*14*120mm 14*12*260mm 14*12*250mm 3 平尾对插碳管 3 horizontal tails carbon tube 10*8*97.4mm 金属部件 Metal parts 1 挂伞金属件*4 2 金属锁钩*8 1 Parachute mount *4 2 Mental latching hook*8...
- Page 9 塑料部件 Plastic parts 1 机翼连接件*2 2 尾翼连接件*2 1 Wings connecting parts*2 2 tails connecting parts*2 3 舵机固定件*3 4 舵角*3 3 Servo fixing parts*3 4 Helm angle *3 舵机安装座 servo installing base 舵机压片 servo presser 舵机盖板 servor covering plate 5 电池固定板 6 天线固定板*2 5 Battery fixing board 6 Antenna fixing board*2...
- Page 10 7 机身连接件 8 GPS 固定板 7 Fuselage connecting parts 8 GPS fixing board 9 舱盖（分电舱）固定板 10 螺丝柱*14 9 Cabin cover fixing board 10 Stud*14 (Distribution room) 11 舱盖（GPS 舱）固定板 12 电池舱口加强件 11 Cabin cover fixing board 12 Battery hatch stiffener (GPS cabin) 13 机身主碳管加强件*2 14 机身线材固定板*2...
- Page 11 15 机身副碳管加强件*2 16 机翼舵机盖板*2 15 Fuselage carbon tube stiffener*2 16 Wing servo cover 17 机翼接线舱盖板*2 18 双发电调舱盖板*2 17 Wing wiring hatch cover*2 18 Wing ESC hatch cover*2 19 机头电调固定安装板*2 20 巡航电机安装座 19 Head ESC fixed mounting plate*2 20 Head motor mounting mount 木板部件...
- Page 12 3 电池舱盖固定板 4 载荷舱口加强板 3 Battery hatch cover mounting plate 4 Payload hatch stiffeners 5 载荷舱盖固定板 6 机身尾翼连接加强层板 5 Payload bay cover mounting plate 6 Fuselage tail joint stiffener 7 双发电机座加强件*4 8 双发电机安装座*2*2 8 Wing motor mounting mount*2*2 Wing motor mounting seat stiffener*4 9GPS 放置板...
- Page 13 11 伞舱盖木板 12 伞舱盖加强板 parachute hatch parachute hatch cover 11 Wooden plate of 12 Stiffer of cover EVA 部件 EVA parts 1 电池区缓冲垫 1 Fuselage cushion 垂起配件 VTOL parts 1 左右可拆式折叠机臂 1 Detachable folding machine arm...
- Page 14 2 电机座*4 3 机臂固定件*4 2 Motor frame*4 3 Machine arm fastener*4 其他配件 Other fittings 编 数 名称及型号 备注 号 量 Name &Model Notes 割尾圆头螺丝 M2*4 Round head flat tail screw M2*4 割尾圆头螺丝 M2*8 Round head flat tail screw M2*8 割尾圆头螺丝 M2*10 Round head flat tail screw M2*10 带垫螺丝...
- Page 15 平尾传动螺柱 4.2-M2*8 平尾部分 Horizontal tail drive stud The part of the horizontal 4.2-M2*8 tail 圆头螺钉 Button head screw M2*10 平尾传动舵角 The transmission leg of the horizontal tail 热缩管 heat shrink tubing 球头 Ball head 连杆 Link rod 圆头螺钉 Button head screw 球头连杆...
- Page 16 舵机延长线 10cm 机翼部分 wing section Servo extending wire 10cm 单端公头线 35cm 尾翼部分 Single head servo Tails section 舵机线材 wire(male) 35cm 单端公头线 45cm 机翼部分 servo wire wing section Single head servo wire(male) 45cm 单端母头线 45cm 机身部分 Single head servo fuselage section wire(Female)45cm 辅助安装工具和材料（自备）Auxiliary installation tools and materials (Self-contained)
- Page 17 测试配置与性能 Test configuration & performance 垂起 4+1 VTOL 4+1 种类 型号 数量 Types Model 巡航电机 1 个 5015 kv200 Cruise motor 1PCS 垂起电机 4 个 5015 kv170 VTOL motor 4PCS 巡航电调 12S 高压 60A 1 个 Cruise ESC 12S HV 60A 1PCS 垂起电调...
- Page 18 负载重量 1 台 SONY A7R（约 600g） Payload weight 1set 起飞重量 约 11kg（含负载 600g） Take-off weight Approximate 10kg (including 600g load) 续航 150km 左右 Endurance Approximate 150km 海拔 500 米，温度 15 摄氏度，3 级风 测试条件 Test condition Altitude:500m,Temperature:15℃,Wind behavior:3 手抛双发 Hand toss twin-shot aircraft 种类...
- Page 19 6S@22000mah lithium polymer 负载重量 1 台 SONY A7R（约 600g） Payload weight 1set 起飞重量 约 7kg（含负载 600g） Take-off weight Approximate 7kg (including 600g load) 续航 120km 左右 Endurance Approximate 120km 海拔 500 米，温度 15 摄氏度，3 级风 测试条件 Test condition Altitude:500m,Temperature:15℃,Wind behavior:3...
- Page 20 扫描二维码了解更多 Scan the qr code to learn more QQ 群 淘宝店铺 QQ group Taobao store 网址（URL）：www.makeflyeasy.com 地址（SITE）：中国绵阳涪城区西南科大国家大学科技园 SWUST,FuchengDistrict,MianyangCity,Sichuan,China Province, China.National University Science Park...
