Summary of Contents for mfe STRIVER mini

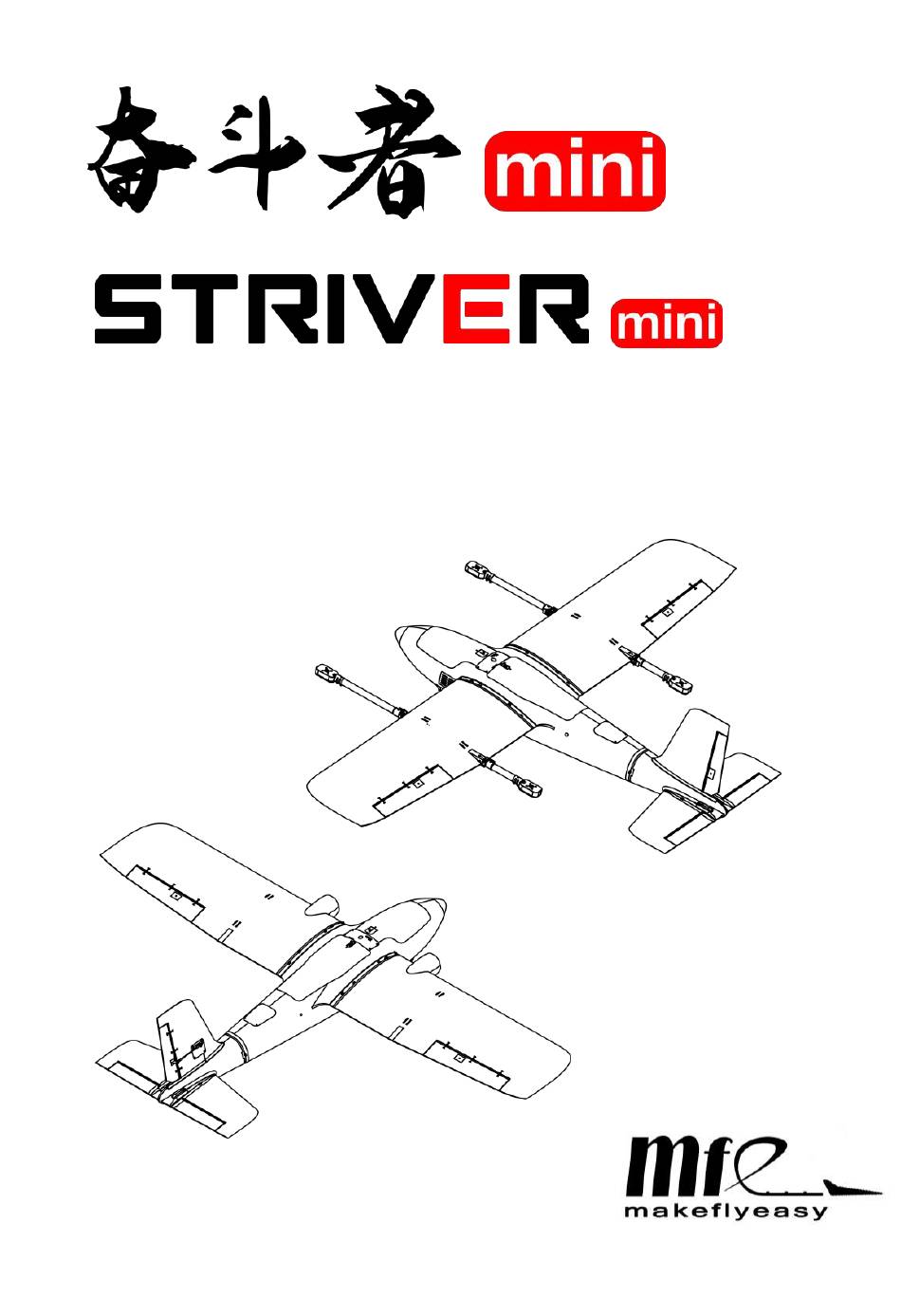

- Page 1 用户手册 V2.0 User Manual V2.0 2022.04...
- Page 2 The Striver mini is a 7kg class fixed-wing flying platform (hand-thrown parachute landing/vertical take-off and landing), which is easy to carry, friendly to operate, stable and reliable. Striver mini is positioned as a fixed wing with overall lightweight, modular system, and simple assembly.
- Page 3 产品规格 材质：EPO、EVA、碳纤维、PC、工程塑料等 翼展：2100mm 机身高：156mm 机身长：1200mm 翼面积：59dm 巡航速度：17~20m/s 失速速度：10m/s 最大有效载荷：<1.2kg 载荷舱尺寸:190*150*90mm 最大起飞重量：7.5kg 实用升限：4500m 抗风能力：5 级 起降方式：垂直起降/手抛 拆装方式：无工具快拆 运输箱寸：1.08m×0.35m×0.48m Products specifications: Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc. Wing Span: 2100mm Fuselage height: 156mm Fuselage length: 1200mm Wing area: 59dm Suggested flight speed: 17~20m/s Stalling speed: 10m/s Suggested payload: <1200g Payload bay size: 190*150*90mm...
- Page 4 产品使用注意事项 Usage Attentions 安装注意 Installation Attentions 1. 在焊接大电流连接器时，一定要注意焊接线序要相互对应，以免烧毁 电调、舵机。 1. Pay attention to the wires welding sequence which should be corresponding to each other during the welding of large current connector. Or ESC and servo may suffer damages. 2. 副翼和尾翼推荐使用银燕 S3054 数字舵机，或者其他相同尺寸的舵 机，便于舵机安装和尾翼快拆装置的安装。...
- Page 5 供电方案图 Striver power supply blocks diagram...
- Page 6 飞行注意 Flying Attentions 1. 请避免在 10m/s 以下的速度飞行转弯，以免飞机失速。 1. Avoid turning when the aircraft flying speed was less than 10m/s,or the aircraft may stall. 2. 飞行前请务必检查电机、螺旋桨安装正确稳固，电调信号线和电源线 插头连接紧固可靠。 2. Ensure the motor and propeller were installed correctly and toughly before flying,inspecting the ESC signal wires and power wires plug,ensure they were connected firmly.
- Page 7 盒内物品清单 Contents in the box EPO 部件 EPO Parts 1 左右机翼 1 left & right wing 2 水平尾翼 2 horizontal tails 3 垂直尾翼 3 vertical tail 4 左右机身 4 left & right fuselage 5 机舱盖 5 Cabin cover 6 双发电机座 6 Motor mount on wing...
- Page 8 碳管部件 Carbon tube parts 1 机身支撑碳管 2 机身尾翼连接碳管 1 Fuselage supporting carbon tube 2 Fuselage & tail-fin carbon tube 14*12*260mm 16*14*100mm 12*10*260mm 14*12*200mm 3 平尾对插碳管 3 horizontal tails carbon tube 8*6*97.4mm 金属部件 Metal parts 1 挂伞金属件*4 2 金属锁钩*8 1 Parachute mount *4 2 Mental latching hook*8...
- Page 9 塑料部件 Plastic parts 1 机翼连接件*2 2 尾翼连接件*2 1 Wings connecting parts*2 2 Tails connecting parts*2 3 舵机固定件*3 4 舵角*3 3 Servo fixing parts*3 4 Helm angle *3 舵机安装座 servo installing base 舵机压片 servo presser 舵机盖板 servor covering plate 5 电池固定板 6 天线固定板*2 5 Battery fixing board 6 Antenna fixing board*2...
- Page 10 7 机身连接件 8 舱盖（GPS 舱）固定板 7 Fuselage connecting parts 8 Cabin cover fixing board (GPS cabin) 9 分电舱 10 螺丝柱*14 9 Distribution room 10 Stud*14 11 机身碳管加强件*2 12 机身线材固定板*2 12 Fuselage wire plate *2 Fuselage carbon tube reinforcement*2 13 机头电调盖板 14 巡航电机安装座...
- Page 11 15 机翼小盖板*2 16 双发电调舱盖板*2 15 Wing hatch cover*2 16 Wing ESC hatch cover*2 17 机翼接线舱盖板*2 18 机翼舵机盖板*2 17 Wing wiring hatch cover*2 18 Wing servo cover*2 19 机身尾部支撑件 19 Fuselage tail support 木板部件 Wooden parts 1 机头加强板 2 机身尾翼连接加强层板 1 Cruise motor ESC mounting plate 2 Fuselage tail joint reinforcement...
- Page 12 3 伞舱盖木板 4 伞舱舵机座 parachute hatch parachute servo 3 Wooden plate of 4 Basement of cover 6 双发电机座加强件*2 8GPS 放置板 8 GPS locating board Wing motor mounting seat reinforcement EVA 部件 EVA parts 1 电池区缓冲垫 1 Fuselage cushion...
- Page 13 垂起配件 VTOL parts 1 左右可拆式折叠机臂 1 Detachable folding wing arm 2 电机座*4 3 机臂固定件*4 2 Motor frame*4 3 Machine arm fastener*4 其他配件 Other fittings 编 数 名称及型号 备注 号 量 Name &Model Notes 割尾圆头螺丝 M2*4 Round head flat tail screw M2*4 割尾圆头螺丝...
- Page 14 割尾圆头螺丝 M2*10 Round head flat tail screw M2*10 带垫螺丝 M2.6*8 Gasket screw M2.6*8 内六角螺钉 M3*10 Soket head cap screw M3*10 挂降落伞和提重心 金属挂钩 Mounted parachute & Metal hanger Measuring the center of gravity 一字螺柱 Plastic stud 尼龙螺柱 Hexagon nylon stud 平尾传动螺柱 4.2-M2*8 平尾部分...
- Page 15 大电流连接器 9+2 Large electronic current connector D-SUB 连接器 DB9P D-SUB connector DB9P 与电池固定板搭配使用 魔术扎带 Magic tie straps Matching the battery fixing board 14 AWG 红色 1.2 米 14 AWG Silicone wire 硅胶线 (red) 1.2M Silicone 14 AWG 黑色 1.2 米 wire 14 AWG Silicone wire (black) 1.2M...
- Page 16 辅助安装工具和材料（自备）Auxiliary installation tools and materials (Self-provided) 工具 Tools 用途 Usage 3.0mm 十字螺丝刀 安装螺丝 3.0mm cross screwdriver Installing the screws 1.5mm-3mm 内六角 电机座安装 1.5mm-3mm Hexagon socket head cap screw Installing the motor frame 焊接电源、舵机线 电烙铁、焊锡丝 Welding the power line and servo Electric iron,solder wire wire 打火机...
- Page 17 测试配置与性能 Test configuration & performance 垂起 4+1 VTOL 4+1 种类 型号 数量 Types Model 巡航电机 1 个 4120 kv430 Cruise motor 1PCS 垂起电机 4 个 5008 kv380 VTOL motor 4PCS 6S 80A 巡航电调 1 个 6S 80A Cruise ESC 1PCS 6S 50A 垂起电调...
- Page 18 负载重量 1 台 SONY A7R（约 600g） Payload weight 1set 起飞重量 约 7.1kg（含负载 600g） Take-off weight Approximate 7.1kg (including 600g load) 续航 112min/127km（速度 19m/s） Endurance 海拔 500 米，温度 15 摄氏度，3 级风 测试条件 Test condition Altitude:500m,Temperature:15℃,Wind behavior:3 手抛双发 Hand toss twin-shot aircraft 种类...
- Page 19 6S@22000mah lithium polymer 负载重量 1 台 SONY A7R（约 600g） Payload weight 1set 起飞重量 约 6kg（含负载 600g） Take-off weight Approximate 6kg (including 600g load) 续航 145min/150km（速度 18m/s） Endurance Approximate 120km 海拔 500 米，温度 15 摄氏度，3 级风 测试条件 Test condition Altitude:500m,Temperature:15℃,Wind behavior:3...
- Page 20 扫描二维码了解更多 Scan the qr code to learn more QQ 群 淘宝店铺 QQ group Taobao store 网址（URL） ：www.makeflyeasy.com 邮箱（Email）: makeflyeasy@qq.com 地址（SITE） ：中国绵阳涪城区西南科大国家大学科技园 SWUST,FuchengDistrict,MianyangCity,Sichuan,China Province, China.National University Science Park...
