- Page 1 PARSUN Electric Outboard Motor User Manual Joy1.2BS(BL) Suzhou Parsun Power Machine Co., Ltd.
- Page 2 Thank you for choosing "PARSUN" electric outboard motor! Thank you for your trust in Parsun and our products! "PARSUN" products, produced with advanced technology and sophisticated process, perform excellently with strong power, high economical efficiency and safety. Please read this User's Manual carefully before using this product for the first time.
-
Page 3: Table Of Contents
Index Joy1.2 IDENTITY ..................1 1. Product introduction ................2 1.1 Product list ................... 2 1.2 Main components ................ 4 1.3 Specification information ............. 4 2. Installation ..................... 6 2.1 Outboard motor's installation ............. 6 2.2 Battery installation ............... 7 3. - Page 4 8.1 Impact damage ................20 8.2 Accidental falling into water ............20 8.3 Low voltage protection .............. 20 9. Trouble shooting .................. 21 9.1 Common problems and solutions ..........21 9.2 Fault codes and measures ............21 10. Warranty .................... 22...
-
Page 5: Joy1.2 Identity
Joy1.2 IDENTITY The serial number is printed on a label which is fixed to the port side of the clamping bracket. Such number is recorded in a blank space of the label to help you order spare parts from dealers or to be used as a reference when the motor is stolen. -
Page 6: Product Introduction

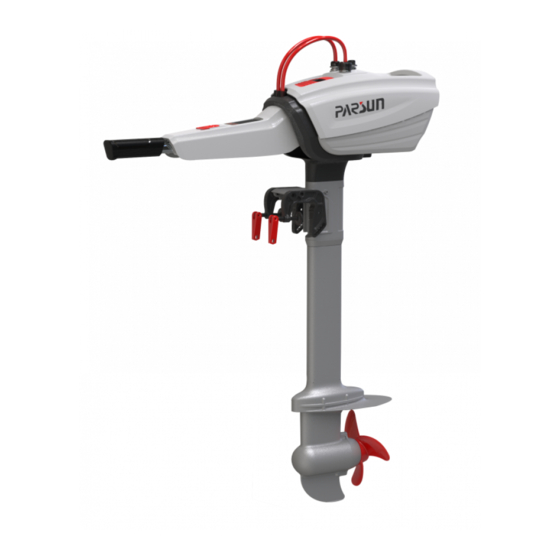

1. Product introduction Joy1.2 is a convenient and efficient electric outboard motor, equipped with ternary lithium battery with high energy density, with maximum speed reaching 8.5km/h. The handle is also equipped with a liquid crystal display screen to better display important parameters. 1.1 Product list There will be the following parts in the product package you purchased. - Page 7 Safety switch 1 piece Standard charger 1 piece Packing list User's manual 1 set Warranty card Quality certificate Fast charger (purchased 1 piece separately) Solar charger (purchased 1 piece separately)
-
Page 8: Main Components
1.2 Main components 1.3 Specification information Joy1.2 motor Rated voltage Rated input power 1.2kW Rated current Peak thrust 320N Equivalent gasoline outboard motor Speed regulation mode Stepless speed change Type of motor DC brushless motor Control mode Tiller handle Net weight 19.5kg 943mm×264mm×992mm (S) Dimensions (L ×... - Page 9 Joy1.2 battery Battery type Lithium battery Rated capacity 1440Wh Rated voltage Cycle life ≥ 500 cycles of charge and discharge Charging time ≤6H Minimum operating voltage Maximum operating voltage Battery weight 8.6Kg Charging: 0℃ ~ 45℃ Temperature range Discharging: -20℃ ~ 60℃ Joy1.2 standard charger Input voltage 100～240VAC...
-
Page 10: Installation
2. Installation 2.1 Outboard motor's installation Step 1: Install the outboard motor at the center line of the stern plate to ensure the balance of the ship. If the stern plate of the ship is asymmetrical, please consult the local dealer for guidance. Note: Do not switch on the power supply in advance when installing the outboard motor, so as to avoid accidents. -
Page 11: Battery Installation
Step 3: Tighten the clamping screw of stern plate clockwise to secure the outboard motor. Because the clamping screw will be loose due to engine vibration, check whether the clamping screw is loose from time to time during engine operation. 2.2 Battery installation Step 1: Lift the battery's upper snap, align the... -
Page 12: Operation
3. Operation 3.1 Pre-use inspection Please check whether the battery is fully charged. Please ensure that this product is correctly locked in the correct position on the stern plate of the boat. Please check whether the propeller is locked. ... -
Page 13: Startup
3.2 Startup Press and hold the key at the bottom of the handle screen, and release the key after hearing the prompt tone. The screen lights up and the motor starts. 3.3 Driving Set the handle to zero position and fasten the magnetic induction emergency stop switch on the operator's hand. -
Page 14: Shutdown
When the handle is in zero position, the motor does not rotate and the ship is in a stop state. When handle turned counterclockwise from the zero position, the ship moves forward and accelerates, otherwise it decelerates. When the handle is turned clockwise from the zero position, the ship travels in the opposite direction and accelerates, otherwise it decelerates. -
Page 15: Trim Angle Adjustment Of Outboard Motor
3.5 Trim angle adjustment of outboard motor Remove the trim adjusting rod on the clamping bracket, which has four holes. Adjust the outboard motor to a suitable position, and then insert the trim adjusting rod into the corresponding hole to complete the adjustment. - Page 16 When transporting, the handle can be rotated downward by 90° for convenience. Before rotating, stretch the handle outward and then rotate it downward. When rotating to 45°, the handle automatically keeps the current angle. Press the handle hard at this time, and the handle can continue to rotate downward.
-
Page 17: Liquid Crystal Display
4. Liquid Crystal Display Detailed description Button Function When this product is turned off, press and hold this button (about 2 seconds) to start it. When this product is turned on, press and hold this button (about 2 seconds) to shut it down. When this product is turned on, press this button once to turn on the backlight of the screen, and press it again to turn off the backlight. - Page 18 Identification Function The charging sign is on the left side, and the electric quantity display is on the right side. There are five grids in total, and the corresponding electric quantity of each grid is 0 ~ 20%, 20 ~ 40%, 40 ~ 60%, 60 ~ 80% and 80 ~ 100% respectively Display the current speed when the ship speed is greater than 3km/h, and the display varies with the ship speed.
-
Page 19: Battery
5. Battery 5.1 Charging When the battery power is low, the battery needs to be charged. The battery can be taken out and charged separately, or it can be connected to the outboard motor for charging. For the sake of battery life, the outboard motor should be in a shutdown state when charging. -
Page 20: Precautions
When the battery is connected and does not work for 48 hours continuously, the battery will enter sleep mode and keep low power consumption. At this time, the LCD screen cannot be lit and the motor cannot run. To wake up the battery, unplug and replug the communication cable on the battery or connect the battery to the charger for charging. -
Page 21: Transportation And Storage
6. Transportation and Storage 6.1 Transportation To avoid collision damage, please use the original packaging scheme at the time of shipment to pack the outboard motor before transportation. Note: Please carry or transport batteries in strict accordance with national and local regulations. Do not transport damaged or abnormal lithium batteries. -
Page 22: Maintenance
7. Maintenance 7.1 Matters needing attention: 1. Carry out regular maintenance to make your outboard motor keep the best working condition and prolong its service life. 2. Do not start the outboard motor in shallow water area near the shore, and adjust the motor to 70°... - Page 23 2. Check whether the propeller shaft is damaged. 3. Check whether the spline safety pin is worn or damaged. 4. Check whether there is fishing line winding on the propeller shaft. 5. Check whether the oil seal on the propeller shaft is damaged. Removing propeller: 1.
-
Page 24: Emergency Handling
8. Emergency Handling 8.1 Impact damage If the outboard motor is accidentally impacted underwater during operation, please take the following measures. 1. Stop the motor immediately, and check whether the mechanical parts of the motor are damaged and whether the control system can be controlled normally. -
Page 25: Trouble Shooting
9. Trouble shooting 9.1 Common problems and solutions Common problem Solution 1. Check whether sundries such as wires or aquatic plants are wrapped around the propeller, and then clean up the propeller. The propeller does 2. Check whether the battery power is too low and not rotate charge the battery in time. -
Page 26: Warranty
10. Warranty Parsun undertakes limited warranty for quality problems caused by materials or craftsmanship of its products. The warranty period of the whole motor is 1 year, starting from the date of original purchase note of the first-hand buyer.
