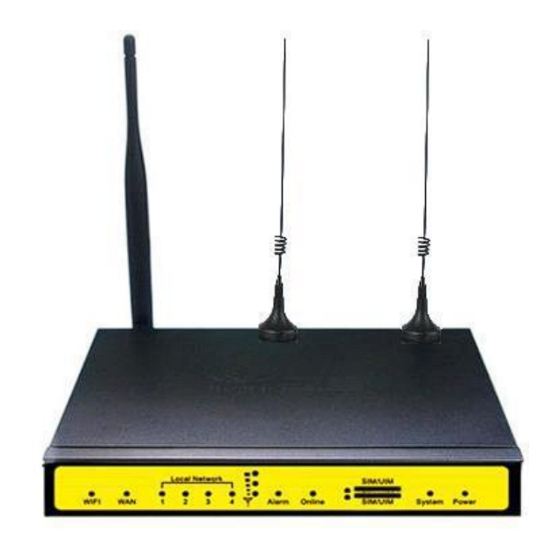

F3X46 Series
User Manual
F3X46 Series User Manual
The user manual is suitable for the following model:
Product Version
V1.0
Product Name：F3X46
Model
F3446
F3746
LTE/TD-SCDMA Dual-SIM WIFI ROUTER
F3846
LTE/WCDMA Dual-SIM WIFI ROUTER
F3A46
Four-Faith Smart Power Technology Co., Ltd.
Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China
Zip Code:361008
Tel：+86+17750019379
Email:Business@four-faith.com
Website:
http://en.four-faith.net
Product Type
WCDMA Dual-SIM WIFI ROUTER
LTE Dual-SIM WIFI ROUTER
Page
Total:86

Advertisement

Table of Contents
loading

Related Manuals for Four-Faith F3 46 Series

Summary of Contents for Four-Faith F3 46 Series

  • Page 1 WCDMA Dual-SIM WIFI ROUTER F3746 LTE/TD-SCDMA Dual-SIM WIFI ROUTER F3846 LTE/WCDMA Dual-SIM WIFI ROUTER F3A46 LTE Dual-SIM WIFI ROUTER Four-Faith Smart Power Technology Co., Ltd. Add：Floor 11, Area A06, No 370, chengyi street, Jimei, Xiamen, China Zip Code:361008 Tel：+86+17750019379 Email:Business@four-faith.com Website: http://en.four-faith.net...
  • Page 2 F3X46 Series Router User Manual Files Revised Record Date Version Remark Author 2015.09.05 V1.0 First created...
  • Page 3 Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 4 F3X46 Series Router User Manual...

  • Page 5: Table Of Contents

    F3X46 Series Router User Manual Contents Contents Contents...............................5 Contents Chapter 1 Brief Introduction of Product..................... 7 1.1 General..........................7 1.2 Features and Benefits......................7 1.3 Working Principle.......................8 1.4 Specifications........................9 Chapter 2 Installation Introduction....................12 2.1 General..........................12 2.2 Encasement List....................... 12 2.3 Installation and Cable Connection...................
  • Page 6 F3X46 Series Router User Manual 3.3.7.2 Port Range Forward..................57 3.3.7.3 DMZ......................57 3.3.8 QoS Setting......................58 3.3.8.1 Basic......................58 3.3.8.2 Classify......................59 3.3.9 Applications.......................59 3.3.9.1 Serial Applications..................59 3.3.10 Administration....................60 3.3.10.1 Management....................60 3.3.10.2 Keep Alive....................62 3.3.10.3 Commands....................63 3.3.10.4 Factory Defaults..................64 3.3.10.5 Firmware Upgrade..................64 3.3.10.6 Backup......................65 3.3.11 Status.........................65 3.3.11.1 Router......................

  • Page 7: Chapter 1 Brief Introduction Of Product

    F3X46 Series Router User Manual Chapter 1 Brief Introduction of Product 1.1 General F3X46 series ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network. Also, it supports double link backup function It adopts high-powered industrial 46-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

  • Page 8: Working Principle

    F3X46 Series Router User Manual Ethernet and WIFI devices directly  Support standard WAN port and PPPOE protocol that can connect to ADSL directly  Support intellectual mode, enter into communication state automatically when powered  Provide management software for remote management ...

  • Page 9: Specifications

    F3X46 Series Router User Manual 1.4 Specifications Cellular Specification ITEM CONTENT F3446 WCDMA WIFI Router UMTS/WCDMA/HSDPA/HSUPA /HSPA+ 850/1900/2100MHz Standard and 850/900/1900/2100MHz(optional) Band GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 HSUPA:5.76Mbps(Upload speed) HSDPA:7.2Mbps(Download speed) Bandwidth UMTS:384Kbps (DL/UL) HSPA+:21 Mbps(Download speed) 5.76Mbps（Upload speed） <24dBm TX power RX sensitivity <-109dBm F3746 LTE/TD-SCDMA+WIFI Router...
  • Page 10 F3X46 Series Router User Manual WCDMA(Download speed:42Mbps，upload speed:5.76Mbps) TD-SCDMA(Download speed:4.2Mbps，upload speed:2.2Mbps) TX power <23dBm RX sensitivity <-93.3dBm WIFI Specification Item Content Standard IEEE802.11b/g/n Bandwidth IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) Security WEP, WPA, WPA2, etc. WPS (optional) TX power 20dBm（11n） ，24dBm（11g） ，26dBm（11b） RX sensitivity <-72dBm@54Mpbs Hardware System...
  • Page 11 F3X46 Series Router User Manual Power Input Item Content Standard Power DC 12V/1.5A Power Range DC 5~36V Consumption Working Consumption condition Schedule 2.57~4.2mA@12DVC shutdown F3436 WCDMA ROUTER 272～295mA@12VDC Standby Communication 283～360mA@12VDC F3736 LTE/TD-SCDMA ROUTER Standby 281～328mA@12VDC Communication 322～563mA@12VDC F3836 LTE/WCDMA ROUTER Standby 280～330mA@12VDC Communication...

  • Page 12: Chapter 2 Installation Introduction

    F3X46 Series Router User Manual Chapter 2 Installation Introduction 2.1 General The router must be installed correctly to make it work properly. Warning: Forbid to install the router when powered! 2.2 Encasement List Name Quantity Remark Router host Cellular antenna (Male SMA) WIFI antenna (Female SMA) Network cable Console cable...
  • Page 13 F3X46 Series Router User Manual Installation of SIM/UIM card: SIM/UIM-1: For the main link SIM/UIM-2: For the backup link Firstly power off the router, and press the out button of the SIM/UIM card outlet with a needle object. Then the SIM/UIM card sheath will flick out at once. Put SIM/UIM card into the card sheath (Pay attention to put the side which has metal point outside), and insert card sheath back to the SIM/UIM card outlet.
  • Page 14 F3X46 Series Router User Manual RJ45-1 RJ45-2 Insert the RJ45 end of the console cable into the RJ45 outlet with sign “console”, and insert the DB9F end of the console cable into the RS232 serial interface of user’s device. The signal connection of the console cable is as follows: RJ45 DB9F The signal definition of the DB9F serial communication interface is as follows:...

  • Page 15: Power

    F3X46 Series Router User Manual RS232 signal name The direction for Router output output input input output input output 2.4 Power The power range of the router is DC 5~35V. Warning: When we use other power, we should make sure that the power can supply power above 8W.

  • Page 16: Reset Button Introduction

    F3X46 Series Router User Manual BLINK System works properly System System does not work The main link has logged on network Online-1 The main link hasn’t logged on network The backup link has logged on network Online-2 The backup link hasn’t logged on network The corresponding interface of switch is not connected Local ON /...

  • Page 17: Chapter 3 Configuration And Management

    F3X46 Series Router User Manual Chapter 3 Configuration and Management This chapter describes how to configure and manage the router. 3.1 Configuration Connection Before configuration, you should connect the router and your configuration PC with the supplied network cable. Plug the cable’s one end into the Local Network port of the router, and another end into your configure PC’s Ethernet port.
  • Page 18 F3X46 Series Router User Manual After access to the information main page Users need to input user name and password if it is their first time to login.

  • Page 19: Management And Configuration

    F3X46 Series Router User Manual Input correct user name and password to visit relevant menu page. Default user name is root, password is admin. (available to modify user name and password on management page, then click submit) 3.3 Management and configuration 3.3.1 Setting The Setup screen is the first screen users will see when accessing the router.
  • Page 20 F3X46 Series Router User Manual Note: when users enable dual link option, they need to configure relevant keep online function if connection type of main link and backup link is 'Static IP' or 'DHCP'. Detailed configuration refer to Keep Online section. Connection type of main link and backup link forbid to be the same, and not under the same Ethernet port.
  • Page 21 F3X46 Series Router User Manual Service Name: provided by ISP server, if not, keep it null PPP Compression (MPPC): provides a method to negotiation and use of compressed in PPP encapsulation link protocol T-Home VDSL VLAN 7/8 Tagging: enable to support the front of the modem is vdsl MPPE Encryption: Microsoft point to point encryption.
  • Page 22 F3X46 Series Router User Manual Connection type: Auto, Force 3G, Force 2G, Prefer 3G, Prefer 2G options. If using 4G module, there has 4G network option. Users select different mode depending on their need DHCP-4G IP address of WAN port gets automatic via DHCP-4G Keep Online This function is used to detect whether the Internet connection is active, if users set it and when the router detect the connection is inactive, it will redial to users' ISP immediately to make the...
  • Page 23 F3X46 Series Router User Manual Force reconnect: this option schedules the pppoe or 3G reconnection by killing the pppd daemon and restart it. Time: needed time to reconnect Enable Dial Failure to Restart: If the dial failure will be in the default time to restart STP (Spaning Tree Protocol) can be applied to loop network.
  • Page 24 F3X46 Series Router User Manual These settings for the router's Dynamic Host Configuration Protocol (DHCP) server functionality configuration. The Router can serve as a network DHCP server. DHCP server automatically assigns an IP address for each computer in the network. If they choose to enable the router's DHCP server option, users can set all the computers on the LAN to automatically obtain an IP address and DNS, and make sure no other DHCP server in the network.

  • Page 25: Dynamic Dns

    DNS service, which allows them to register their domain to their IP address, and will forward traffic directed at their domain to their frequently-changing IP address. DDNS Service: Four-Faith router currently support DynDNS, freedns, Zoneedit, NO-IP,...

  • Page 26: Clone Mac Address

    F3X46 Series Router User Manual 3462, easyDNS, TZO, DynSIP and Custom based on the user. User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 46 characteristic Host Name: users register in DDNS server, no limited for input characteristic for now Type: depends on the server Wildcard: support wildcard or not, the default is OFF.

  • Page 27: Advanced Router

    F3X46 Series Router User Manual Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address.

  • Page 28: Vlans

    F3X46 Series Router User Manual Static Routing Select set number: 1-50 Route Name: defined routing name by users, up to 25 characters Metric: 0-9999 Destination LAN NET: the Destination IP Address is the address of the network or host to which users want to assign a static route Subnet Mask: the Subnet Mask determines which portion of an IP address is the network portion, and which portion is the host portion...

  • Page 29: Networking

    F3X46 Series Router User Manual VLANs function is to divide different VLAN ports by users' will. The system supports 16 VLAN port from VLAN0-VLAN15. However there is only 5 time ports (1 WAN port and 4 LAN port) divided by users themselves,and LAN port and WAN port disable to divide into one VLAN port meanwhile.
  • Page 30 F3X46 Series Router User Manual Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority. Bridging - Assign to Bridge: allows users to assign any valid interface to a network bridge.
  • Page 31 F3X46 Series Router User Manual To make br1 bridge has the same function with DHCP assigned address, users need to set multiple DHCP function, see the introduction of multi-channel DHCPD: Port Setup: Set the port property, the default is not set Choose not bridge to set the port's own properties, detailed properties are as below: MTU: maximum transfer unit Multicast forwarding: enable or disable multicast forwarding...

  • Page 32: Wireless

    F3X46 Series Router User Manual Multiple DHCPD: using multiple DHCP service. Click 'Add' in multiple DHCP server to appear relevant configuration. The first means the name of port or bridge (do not be configured as eth0), the second means whether to on DHCP. Start means start address, Max means maximum assigned DHCP clients, Leasetime means the client lease time, the unit is second, click 'Save' or 'Apply' to put it into effect after setting.
  • Page 33 F3X46 Series Router User Manual B-only：Only supports the 802.11b standard wireless devices. G-only：Only supports the 802.11g standard wireless devices. NG-Mixed：Support 802.11g, 802.11n wireless devices. N-only：Only supports the 802.11g standard wireless devices. 8021.11n Transmission Mode：In the wireless network mode to "N-only" choose to transfer its transmission mode.

  • Page 34: Wireless Security

    F3X46 Series Router User Manual AP Isolation：This setting isolates wireless clients so access to and from other wireless clients are stopped. Note ： Save your changes, after changing the "Wireless Mode", "Wireless Network Mode", "wireless width", "broadband" option, please click on this button, and then configure the other options.
  • Page 35 F3X46 Series Router User Manual Key1-Key4：Manually fill out or generated according to input the pass phrase. WPA Personal/WPA2 Personal/WPA2 Person Mixed: ， TKIP/AES/TKIP+AES ， dynamic encryption keys. TKIP + AES, self-applicable TKIP or AES. WPA Person Mixed, allow WPA Personal and WPA2 Personal client mix. WPA Shared Key：Between 8 and 63 ASCII character or hexadecimal digits.。...

  • Page 36: Services

    F3X46 Series Router User Manual 802.1x: 802.1x for user to connect to a wireless access point and cable converter to provide the certification. It will limit without obtaining the user credentials to connect to the Internet, credentials - for example, a separate server authentication user name and password. Peap: PEAP (Protected Extensible Authentication Protocol) is a version of EAP, the authentication protocol used in wireless networks and Point-to-Point connections.
  • Page 37 F3X46 Series Router User Manual Set Vendorclass: the DHCP server can automatically identify the specific identifier of the computer running certain operating systems to send, such as the DHCP server can identify the DHCP client running the operating systerm is Windows 2000 or Windows 98. Identification identifier DHCP option can be assigned to DHCP clients based on specific operating system.
  • Page 38 F3X46 Series Router User Manual Local DNS enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames. Local DNS: enables DHCP clients on the LAN to resolve static and dynamic DHCP hostnames No DNS Rebind: when enabled, it can prevent an external attacker to access the router's internal Web interface.
  • Page 39 F3X46 Series Router User Manual SSH TCP Forwarding: enable or disable to support the TCP forwarding root Password Login: allows login with the router password (username is Port: port number for SSHd (default is 22) Authorized Keys: here users paste their public keys to enable key-based login (more secure than a simple password) System log Enable Syslogd to capture system messages.

  • Page 40: Vpn

    F3X46 Series Router User Manual 3.3.4 VPN 3.3.4.1 PPTP PPTP Server Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data DNS1/DNS2/WINS1/WINS2: set DNS1/DNS2/WINS1/WINS2 Server IP: input IP address of the router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx CHAP Secrets: user name and password of the client using PPTP service Note: client IP must be different with IP assigned by router DHCP.

  • Page 41: L2Tp

    F3X46 Series Router User Manual Server IP or DNS Name: PPTP server’s IP Address or DNS Name Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。 MTU: maximum Transmission Unit MRU: maximum Receive Unit NAT: network Address Translation...

  • Page 42: Openvpn

    F3X46 Series Router User Manual Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx.xxx.xxx.xxx CHAP Secrets: user name and password of the client using L2TP service Note: client IP must be different with IP assigned by router DHCP. The format of CHAP Secrets is user * password *.
  • Page 43 F3X46 Series Router User Manual Start Type: WAN UP----start after on-line, System----start when boot up Config via: GUI----Page configuration, Config File----config File configuration Server mode: Router (TUN)-route mode, Bridge (TAP)----bridge mode Router (TUN): Network: network address allowed by OPENVPN server Netmask: netmask allowed by OPENVPN server Bridge (TAP): DHCP-Proxy mode: enable or disable DHCP-Proxy mode...
  • Page 44 F3X46 Series Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn TUN MTU Setting: set the value of TUN MTU TCP MSS: MSS of TCP data TLS Cipher: TLS (Transport Layer Security) encryption standard supports AES-128 SHA and...
  • Page 45 F3X46 Series Router User Manual Additional Config: additional configurations of the server CCD-Dir DEFAULT file: other file approaches TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server Port: listen port of OPENVPN client Tunnel Device: TUN----Router mode, TAP----Bridge mode Tunnel Protocol: UDP and TCP protocol...
  • Page 46 F3X46 Series Router User Manual Use LZO Compression: enable or disable use LZO compression for data transfer NAT: enable or disable NAT through function Bridge TAP to br0: enable or disable bridge TAP to br0 Local IP Address: set IP address of local OPENVPN client TUN MTU Setting: set MTU value of the tunnel TCP MSS: mss of TCP data TLS Cipher: TLS (Transport Layer Security) encryption standard supports AES-128 SHA and...

  • Page 47: Ipsec

    F3X46 Series Router User Manual 3.3.4.4 IPSEC Connect Status and Control Show IPSEC connection and status of current router on IPSEC page. Name: the name of IPSEC connection Type: The type and function of current IPSEC connection Common name: local subnet, local address, opposite end address and opposite end subnet of current connection Status: connection status: closed, negotiating, establish Closed: this connection does not launch a connection request to opposite end...
  • Page 48 F3X46 Series Router User Manual Name: to indicate this connection name, must be unique Enabled: If enable, the connection will send tunnel connection request when it is reboot or re-connection, otherwise it is no need if disable Local WAN Interface: local addresss of the tunnel Remote Host Address: IP/domain name of end opposite;...

  • Page 49: Gre

    F3X46 Series Router User Manual ESP Keylife: set ESP keylife, current unit is hour, the default is 0 IKE aggressive mode allowed: negotiation mode adopt aggressive mode if tick; it is main mode if non-tick Negotiate payload compression: Tick to enable PFS, non-tick to diable PFS Authentication: choose use share encryption option or certificate authentication option.

  • Page 50: Security

    F3X46 Series Router User Manual Local Netmask：Netmask of local network Keepalive：Enable or disable GRE Keepalive function Retry times：GRE keepalive detect fail retries Interval：The time interval of GRE keepalive packet sent Fail Action：The action would be exec after keeping alive failed Click on “View GRE tunnels”...
  • Page 51 F3X46 Series Router User Manual otherwise disabled. Filter Java Applets: If refuse to Java, you may not be able to open web pages using the Java programming.. Click the check box to enable the function otherwise disabled. Filter ActiveX: If refuse to ActiveX, you may not be able to open web pages using the ActiveX programming.
  • Page 52 F3X46 Series Router User Manual Log Management The router can keep logs of all incoming or outgoing traffic for your Internet connection. Log: To keep activity logs, select Enable. To stop logging, select Disable. When select enable, the following page will appear. Log Level: Set this to the required log level.

  • Page 53: Access Restrictions

    F3X46 Series Router User Manual 3.3.6 Access Restrictions 3.3.6.1 WAN Access Use access restrictions, you can block or allow specific types of Internet applications. can set specific PC-based Internet access policies. This feature allows you to customize up to ten different Internet Access Policies for particular PCs, which are identified by their IP or MAC addresses.
  • Page 54 F3X46 Series Router User Manual Website Blocking by URL Address: You can block access to certain websites by entering their URL. Website Blocking by Keyword: You can block access to certain website by the keywords contained in their webpage set up Internet access policy 1.

  • Page 55: Packet Filter

    F3X46 Series Router User Manual 3. Enter a name in the Policy Name field. 4. Click the Edit List of PCs button. 5. On the List of PCs screen, specify PCs by IP address or MAC address. Enter the appropriate IP addresses into the IP fields.

  • Page 56: Nat

    F3X46 Series Router User Manual Direction input: packet from WAN to LAN output: packet from LAN to WAN Protocol: packet protocol type Source Ports: packet's source port Destination Ports: packet's destination port Source IP: packet's source IP address Destination IP: packet's destination IP address Note: "Source Port"...

  • Page 57: Port Range Forward

    F3X46 Series Router User Manual Source Net: Forward only if sender matches this ip/net (example 192.168.1.0/24). Port from: Enter the number of the external port (the port number seen by users on the Internet). IP Address: Enter the IP Address of the PC running the application. Port to: Enter the number of the internal port (the port number used by the application).

  • Page 58: Qos Setting

    F3X46 Series Router User Manual Any PC whose port is being forwarded must should have a new static IP address assigned to it because its IP address may change when using the DHCP function. DMZ Host IP Address: To expose one PC to the Internet, select Enable and enter the computer's IP address in the DMZ Host IP Address field.

  • Page 59: Classify

    3.3.9.1 Serial Applications There is a console port on Four-Faith router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server.

  • Page 60: Administration

    Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol.
  • Page 61 F3X46 Series Router User Manual It is strongly recommended that you change the factory default password of the router, which is admin. All users who try to access the router's web-based utility or Setup Wizard will be prompted for the router's password. Web Access This feature allows you to manage the router using either HTTP protocol or the HTTPS protocol.

  • Page 62: Keep Alive

    F3X46 Series Router User Manual Telnet Management：Enable or disable remote Telnet function Cron ： The cron subsystem schedules execution of Linux commands. You'll need to use the command line or startup scripts to actually use this. Language：Set up the router page shows the type of language, including simplified Chinese and English.

  • Page 63: Commands

    F3X46 Series Router User Manual Schedule Reboot You can schedule regular reboots for the Router : Regularly after xxx seconds. At a specific date time each week or everyday. Note： For date based reboots Cron must be activated. See Management for Cron activation.

  • Page 64: Factory Defaults

    3.3.10.5 Firmware Upgrade Firmware Upgrade：New firmware versions are posted at www.four-faith.com and can be downloaded. If the Router is not experiencing difficulties, then there is no need to download a more recent firmware version, unless that version has a new feature that you want to use.

  • Page 65: Backup

    F3X46 Series Router User Manual 3.3.10.6 Backup Backup Settings：You may backup your current configuration in case you need to reset the router back to its factory default settings.Click the Backup button to backup your current configuration. Restore Settings： Click the Browse... button to browse for a configuration file that is currently saved on your PC.Click the Restore button to overwrite all current configurations with the ones in the configuration file.
  • Page 66 F3X46 Series Router User Manual Router Model: model of the router, unavailable to modify Firmware Version: software version information MAC Address: MAC address of WAN, settingClone MAC Address to modify Host Name: host name of the router, settingbasic setting to modify WAN Domain Name: domain name of WAN, settingbasic setting to modify LAN Domain Name: domain name of LAN, unavailable to modify Current Time: local time of the system...

  • Page 67: Wan

    F3X46 Series Router User Manual Active IP Connections: total active IP connections Protocol: connection protocol Timeouts: connection timeouts, unit is second Source Address: source IP address Remote Address: remote IP address Service Name: connecting service port Status: displayed status 3.3.11.2 WAN Connection Type: disabled, static IP, automatic configuration-DHCP, 3G Link 1, 3G Link 2 Connection Uptime: connecting uptime;...
  • Page 68 F3X46 Series Router User Manual Subnet Mask: subnet mask of router WAN Gateway: the gateway of router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way DHCP Release: release DHCP address DHCP Renew: renew IP address in DHCP way, default is 1 day Login Status: connection status of WAN Disconnection: disconnect...

  • Page 69: Bkup Wan

    F3X46 Series Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month Backup: backup data administration Restore: restore data administration Delete: delete data administration...
  • Page 70 F3X46 Series Router User Manual IP Address: IP address of router WAN Subnet Mask: subnet mask of router WAN Gateway: the gateway of router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way DHCP Release: release DHCP address DHCP Renew: renew IP address in DHCP way, default is 1 day Login Status: connection status of WAN...

  • Page 71: Lan

    F3X46 Series Router User Manual Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month Backup: backup data administration Restore: restore data administration Delete: delete data administration...
  • Page 72 F3X46 Series Router User Manual MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client...
  • Page 73 F3X46 Series Router User Manual Local IP: IP address assigned by PPPoE client Delete: click to delete PPPoE client Interface: the interface assigned by dial-up system Local IP: tunnel IP address of local L2TP Remote IP: tunnel IP address of L2TP server Delete: click to disconnect L2TP Interface: the interface assigned by dial-up system User Name: user name of the client...

  • Page 74: Wireless

    F3X46 Series Router User Manual 3.3.11.5 Wireless MAC Address: MAC address of wireless client Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network Encryption-Interface wl0: enable or diasbal Encryption-Interface wl0 PPTP Status: show wireless pptp status...

  • Page 75: Bandwidth

    F3X46 Series Router User Manual Noise: the noise of wireless client SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client Neighbor's Wireless Network: display other networks nearby SSID: the name of wireless network nearby Mode: operating mode of wireless network nearby MAC Address: MAC address of the wireless nearby Channel: the channel of the wireless nearby...
  • Page 76 F3X46 Series Router User Manual Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-BKUP WAN Graph abscissa axis: time vertical axis: speed rate...

  • Page 77: Sys-Info

    F3X46 Series Router User Manual Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate 3.3.11.7 Sys-Info Router Name: the name of the router Router Model: the model of the router LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of Main WAN port BKUP WAN IP: IP address of bkup WAN port...
  • Page 78 F3X46 Series Router User Manual Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network Received (RX): received data packet Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client...
  • Page 79 F3X46 Series Router User Manual DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes) Free: free memory, the router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers, total available memory minus allocated memory...

  • Page 80: Chapter 4 Appendix

    F3X46 Series Router User Manual Chapter 4 Appendix The following steps describe how to setup Windows XP Hyper Terminal. 1. Press “Start””Programs””Accessories””Communications””Hyper Terminal” 2. Input connection name, choose “OK” 3. Choose the correct COM port which connects to modem, choose “OK” 4.
  • Page 81 F3X46 Series Router User Manual Bits per second: 115200 Data bits: 8 Parity: None Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following...
