TN004
GB
Product scope
TN004 is a RJ45 connector to be installed in
a wall mounting equipment supporting unit or
communication box.
Technical specifications
- Product complies with Standard: EN 60603-7-5.
-
Conformity
- Self-stripping contacts (no tool required).
- Standard Colour Code: EIA/TIA 568 A & B.
- Connector RJ45, Category 5e UTP.

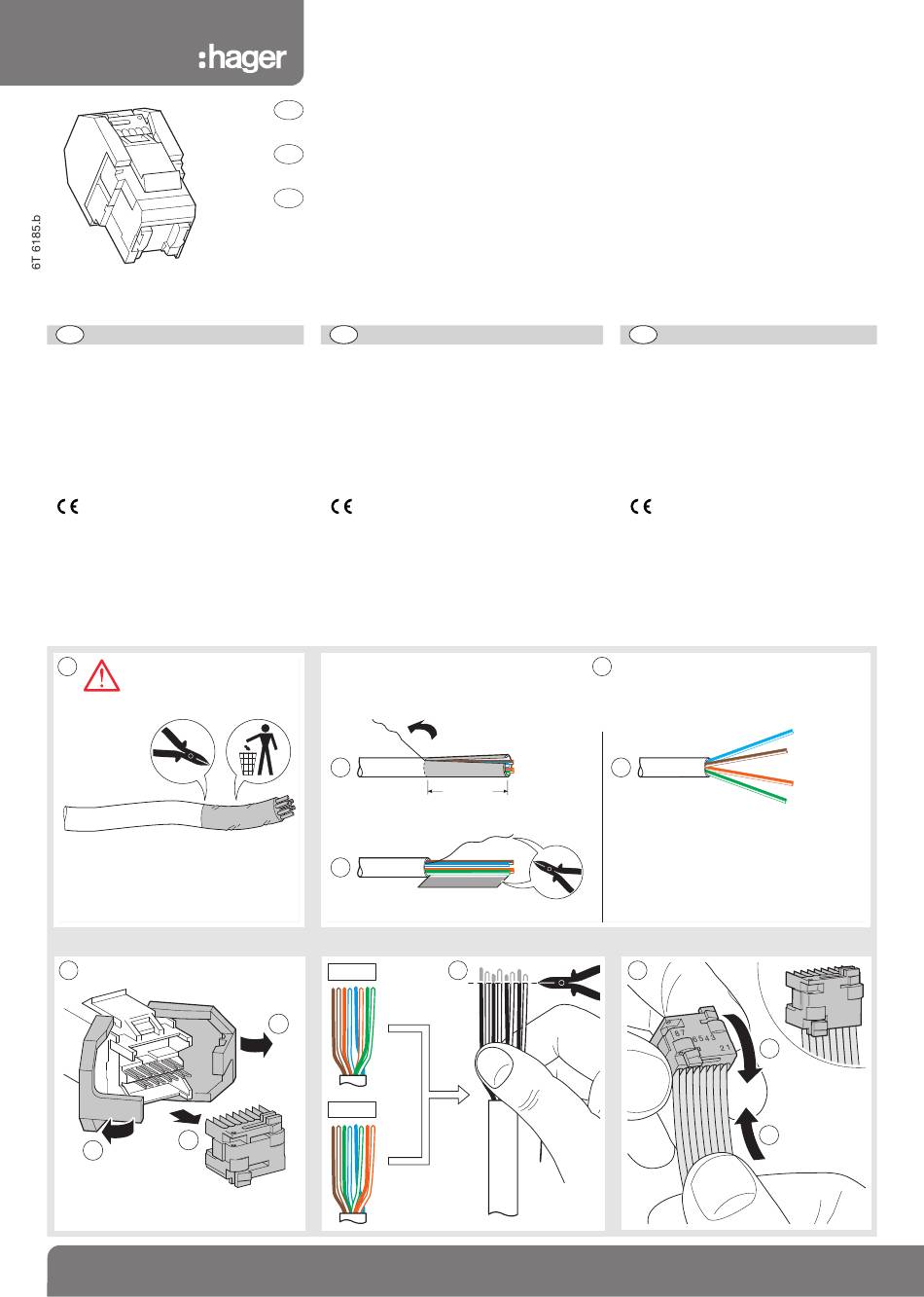

Installation - Montage - Montage
1
3
B
A
1
4 RJ45 connectors
GB
cat. 5e UTP
4 Steckverbinder RJ45
DE
cat. 5e UTP
4 RJ45 kontaktdon
SE
cat. 5e UTP
DE
Produktbeschreibung
Der TN004 ist ein RJ45-Anschluss für die
Montage in einer Wandtafel bzw. einem
Datenübertragungsschrank
Technische Spezifikationen
- Entspricht der Norm: EN 60603-7-5.
-
Konformität
- Selbstschneidende Kontakte (kein Werkzeug
erforderlich).
- Norm-Farbencode: EIA/TIA 568 A & B.
- Steckverbinder RJ45, Kategorie 5e UTP.
Cable Category 5e UTP
Kabel Kategorie 5e UTP
Kabel av kategori 5e UTP
A
B
T568A
A
T568B
8 7 6 5 4 3
2 1
2
C
> 60 mm
4
User instructions
Bedienungsanleitung
Bruksanvisning
SE
Presentation av produkten
TN004 är ett RJ45 kontaktdon avsett för
montering i en vägghållare för utrustning eller
apparatdosa.
Tekniska data
- Uppfyller norm: EN 60603-7-5.
-
Märkt
- Kontakterna är självavskalande (utan verktyg).
- Standardiserad färgkod: EIA/TIA 568 A & B.
- RJ45 Kontaktdon, Kategori 5e UTP.
5
B
A
8 7
6 5 4 3
2 1
6T 6185.b
