Summary of Contents for elive YD1003

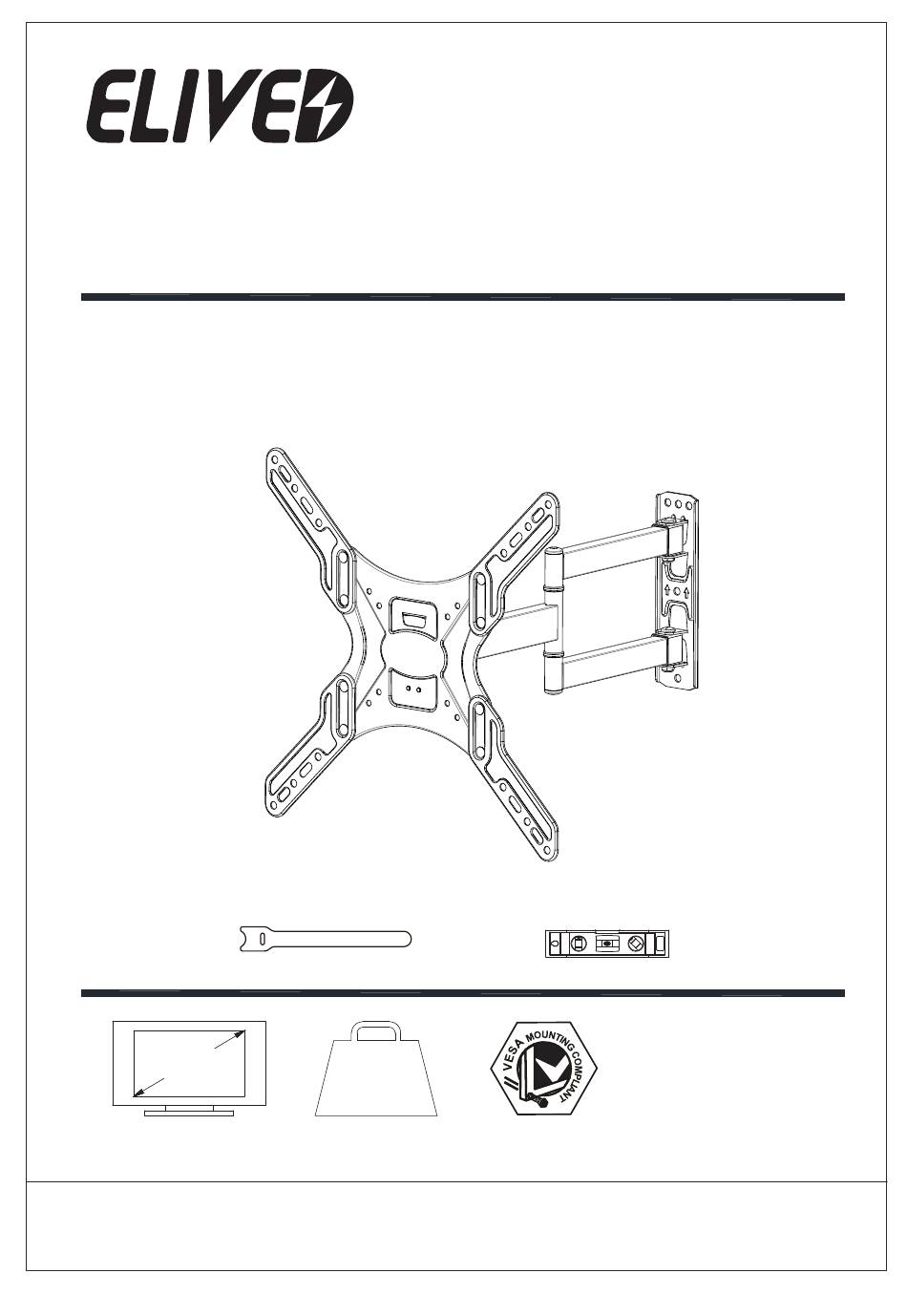

- Page 1 YD1003 INSTALLATION INSTRUCTION Velcro cable ties X5 Bubble level X1 Max:400x400mm/16x16" Max: 26"~55" 88LBS Min:100x100mm/4x4" 40KG (V3) If you have any questions, please contact us via help@elivedglobal.com - 1 -...
- Page 2 Before getting started, let’s make sure this mount is perfect for you! Is your TV VESA MAX:400mm/16" equal to/greater than 100x100mm/4x4" andequal to/less than Yes --- Perfect! MAX: 400x400mm/16x16"? 400mm/16" No --- This mount is NOT compatible. Does your TV Max: Yes --- Perfect! (including accessories)
-
Page 3: Hardware Included
Hardware Included Monitor Plate Extenders Nuts Bolts Arm and Wall Plate Hardware WARNING: （Wall /Product) This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify Washers Open end wrench Lag Bolts Ø8mm all parts are included and undamaged. If 5/16 x 2½... - Page 4 STEP 1 Select Proper TV Screw 1. Select TV screw diameter: Thread screws by hand into the threaded holes on the back of your TV to select which screw diameter fits your TV. 2. Select TV screw length: When attaching brackets to the TV, be careful not to over tighten screws and be sure that screws do not bottom out in the mounting holes.
- Page 5 STEP 3-1 Select monitor plate configuration Select the configuration A , B , C, D, or E to use based on the measurement from STEP 200 mm 130 mm VESA Patter VESA Pattern Configuration Configuration 100 mm (WxH) (WxH) 100mm x 100mm 300mm x 200mm 130mm x 130mm 300mm x 300mm...
-
Page 6: Step 3-3 Attach The Brackets
STEP 3-2 Assemble Monitor Plate and Extenders If your TV hole pattern is greater than 200x200mm, attach extenders [3A] and [3B] to monitor plate [02] using Nut [4A] and Bolt [4B]. STEP 3-3 Attach the Brackets (a) for Flat Back Use the shorter screws Not for M8 screws (b) for Round Back / Extra space... - Page 7 STEP 4A Wall Plate Installation (Wood stud) 4A-1 Locate your studs. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge-to-edge stud finder. 4A-2 Position the wall plate your desired height and line up the holes with your stud center line.
- Page 8 4A-4 Install wall plate using lag bolts and washers B . Tighten the lag bolts until they are pulled firmly against the wall plate STEP 4B Wall Plate Installation (Concrete or Brick) Position the wall plate 4B-1 your desired height , level the wall plate and mark the pilot hole locations x3.
- Page 9 Concrete wall anchor (NOT INCLUDED) Contact us by email help@elivedglobal.com to have these additional pieces shipped directly to you. Concrete Wall Anchor 3pcs Concrete Wall Install wall plate using lag bolts washers and anchors (not included). Tighten the lag bolts until they are Concrete Wall pulled firmly against the wall plate...
-
Page 10: Tighten Screws
Adjustments (Tool-free Tilting Adjustment) If necessary If TV keeps tilting down, Pull TV to desired angle then fasten tilting nuts with open end wrench. -10° +5° Loosen Tighten Leveling adjustment (-3°/+3°) (Leveling) If needed, TV can be leveled ±3 degrees via adjusting the 2 screws with the open end wrench. -
Page 11: Product Dimensions
Product dimensions: 400mm(15.7”) 200mm(7.9”) 100mm(3.9”) 484mm(19”) +5°/-10° 245mm(9.6”) - 11 -...
