Summary of Contents for elive YD2002

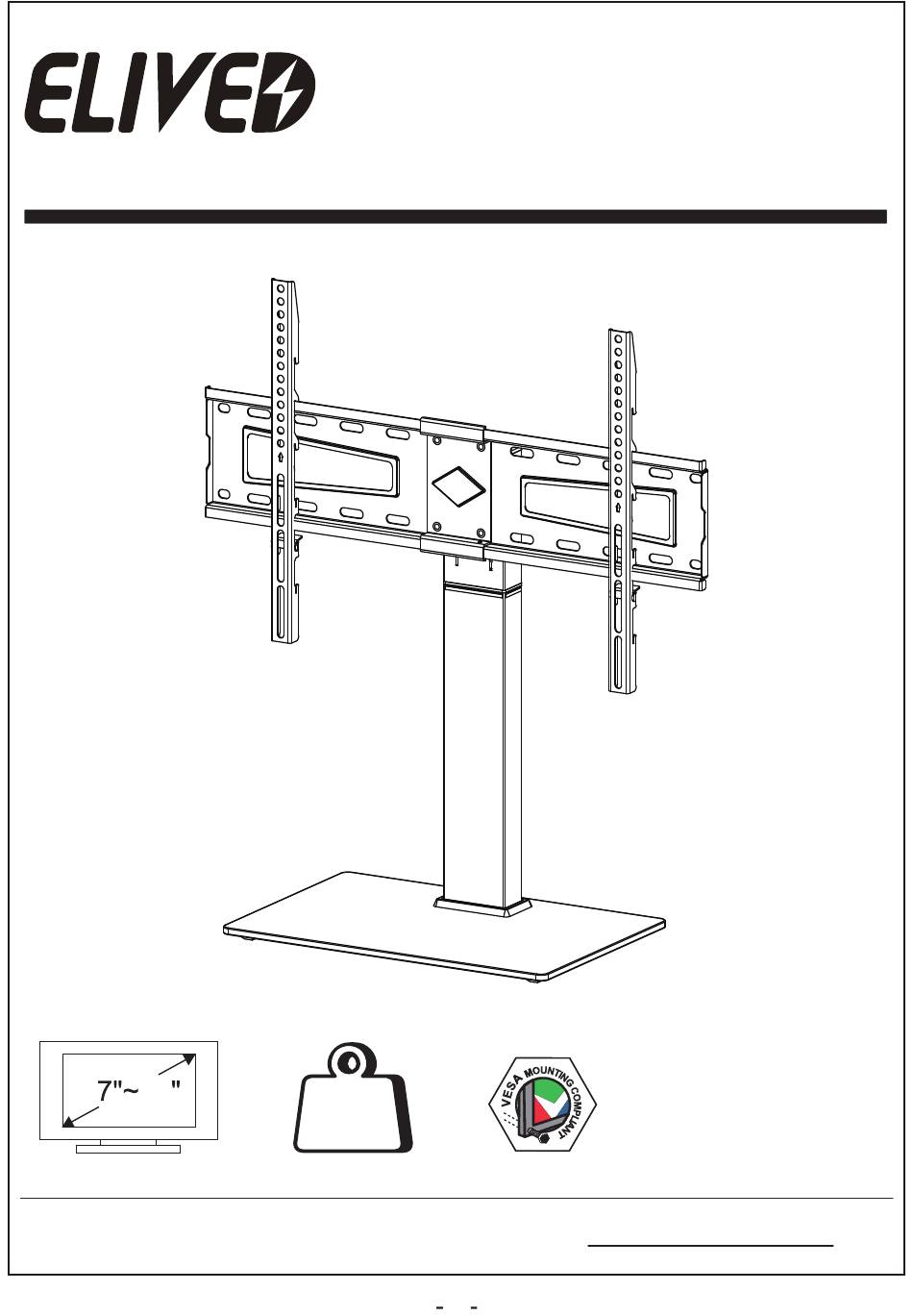

- Page 1 YD2002 INSTALLATION INSTRUCTION Max:600x400mm /24x16" Max: 40KG Min:100x100mm /4x4" (88LBS) （V1） If you have any questions, please contact us via help@elivedglobal.com...
-
Page 2: Installation Tools
Before getting started, let’s make sure this mount is perfect for you! MAX:600mm/24" Is your TV VESA equal to/greater than Yes --- Perfect! MAX: 100x100mm/4x4" and 400mm/16" No --- This mount is NOT compatible. equal to/less than 600x400mm/24x16"? Does your TV Yes --- Perfect! (including accesso- Max:... - Page 3 M8X25 Ф30*Ф10*1.0 Support Pillar Plastic Washer Bolt Ф30*Ф10*1.5 Support Pillar Steel Washer TV Bracket 80X40 Foot Pad Plastic Gasket TV Plate 1.5mm 4mm Allen Key Steel Gasket Tempered Glass Base M6X50 Ф16*Ф6*1.5 5mm Allen Key Bolt Washer Connecting Plate Wire Clip M6&M10 Wrench Tilt Angle Adjuster Plastic Cover...
- Page 4 ① ⑤ STEP 1 Connecting the Support Pillar to Tempered Glass Base M8X25 Steel Gasket Attach foot pads (H) on the bottom of the tempered ⑤ 5mm Allen Key glass base at the corners. D Steel Gasket ⑤ Put tempered glass base on the table.
- Page 5 ② ① Connecting the Support Pillar to Support Pillar STEP 2 G Steel Washer Plastic Gasket G Plastic Washer Plastic Washer Steel Washer I Wrench C Plastic Gasket I Wrench Note: Arrow should be on the back of the support pillar ①. ②...
- Page 6 Connecting the TV Plate with Tilt Angle Adjuster STEP 3 I Wrench ④ ⑥ ⑦ Connecting the two TV plates by using connecting plate , tilt angle adjuster nuts (B). Then tighten the nuts (B) with the wrench (I).
- Page 7 STEP 4 4mm Allen Key M6X50 Ф16*Ф6*1.5 E Washer E Bolt Note: Three choices for height 4mm Allen Key adjustment ④ ② Connecting TV plate to support pillar Choose the appropriate position (three options) using bolts (E) and washers (E). ④...
- Page 8 Choose TV Screws and Spacers STEP 5 STEP 6 M-A/M-B Choose the appropriate M-C/M-D/M-E length screws for your TV. Choose the appropriate quantity spacers for your TV. May be 0~4pcs. Alternate spacers setup below: M-G/M-H Spacer-1 Spacer-2...
- Page 9 STEP 7 Choose the appropriate position (three options) for your TV. ③ ④ Hang the TV bracket onto the TV plate ⑩ Put the safety lock in place and fasten the ④ fixing screw to the TV plate securely.
- Page 10 Adjustments STEP 8 8-1 Tilting angle adjustment (0°/+5°) 8-1-1 Loosen 2 tilting bolts showing below figures by 1-2 turns. 8-1-2 Hold the TV with your hands,Adjust TV to your desired angle. 8-1-3 Tighten 2 tilting bolts with 5mm allen key (I). 8-1-4 Move your hands away.
-
Page 11: Product Dimension
Product dimension: +5° 0° +25°/-25°... - Page 12 CAUTION AND MAINTENANCE: • Never allow children to climb, stand, hang, or play on any part of monitor or stand. • This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury. •...
