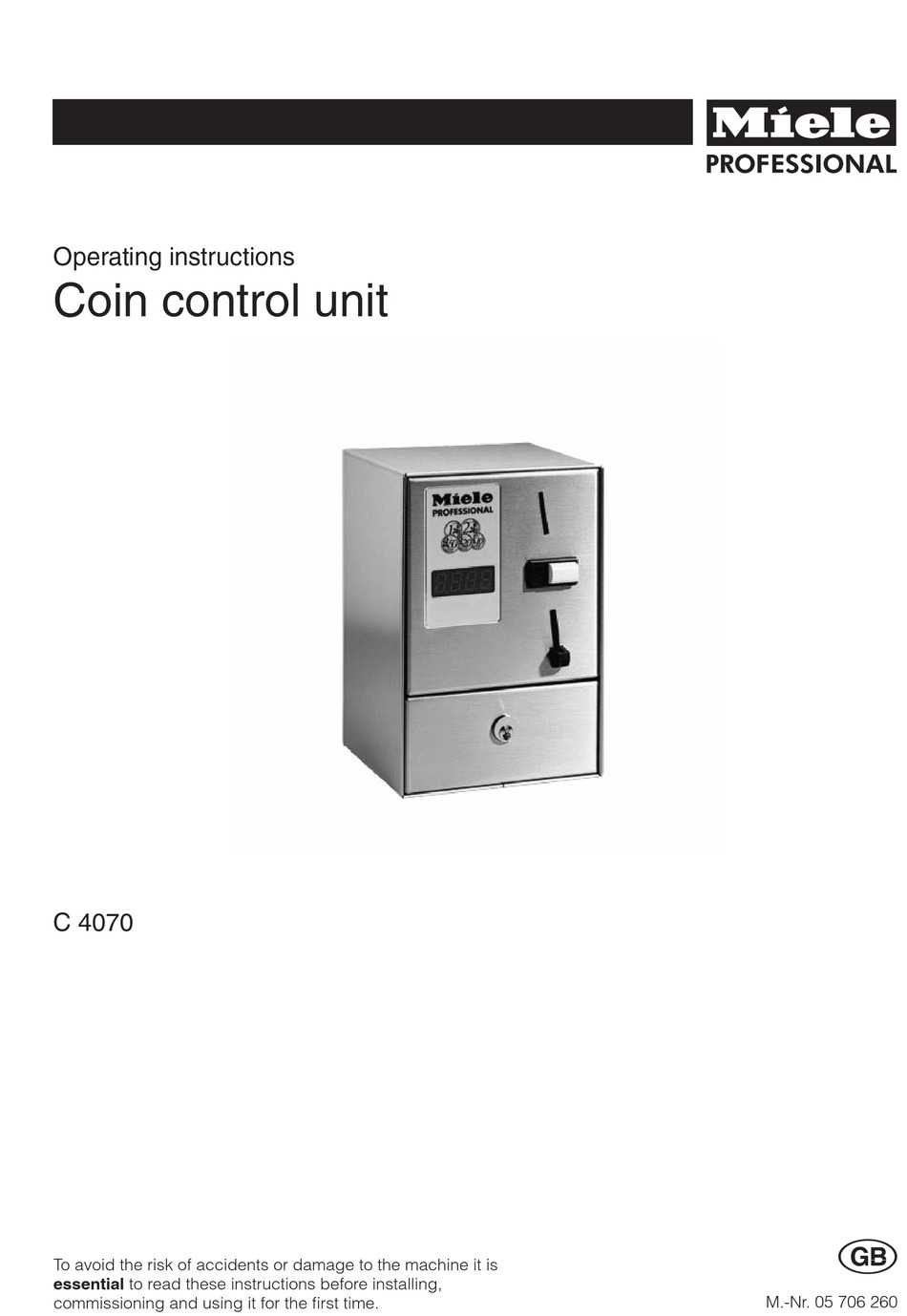

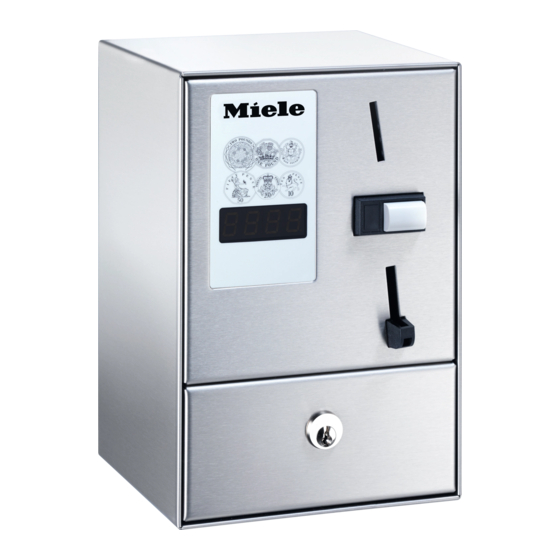

- Page 1 Operating instructions Coin control unit C 4070 To avoid the risk of accidents or damage to the machine it is essential to read these instructions before installing, M.-Nr. 05 706 260 commissioning and using it for the first time.
-
Page 3: Table Of Contents
General information about the C 4070 Coin control unit ....... -
Page 4: Warning And Safety Instructions
Warning and Safety instructions The machine is only completely isolated Read the operating and programming in- from the electricity supply either when it structions before using the coin control is switched off at the isolator switch or the unit for the first time. mains fuse has been withdrawn. -
Page 5: Caring For The Environment
Caring for the environment Disposal of the packing material The transport and protective packing has been selected from materials which are envi- ronmentally friendly for disposal and can normally be recycled. Packaging e.g. cling film, polystyrene and plastic wrappings must be kept out of the reach of babies and young children. -
Page 6: Description Of The Machine
The tester is divided into two blocks. Block 1 (Channels 1-6) is for coins and Block 2 (Channels 7-12) is for tokens (see page 20 for details on how to change over). The C 4070 can be used as a timer or programme control unit for Miele laundry machines. For programme operation (standard setting): As a control unit for machines which are fitted with a programme timer or an electronic control unit where a complete programme sequence is required (e.g. - Page 7 Description of the machine Display Programming buttons The display can show the following: – the amount of money to be inserted, The progamming buttons are used for se- – the operating status of the connected ap- lecting various input positions and setting pliance (programme operation, time oper- different options.
-
Page 8: Programming
Programming Access to programming level Before you begin, first ensure that: – the machine is switched on and – washer extractor or tumble dryer doors are shut. The option for the input position then ap- pears to the right of the display (e.g. " 1 "). Selecting an "... -
Page 9: List Of Input Positions
- Can be changed in one minute increments from 1 to 120 minutes. ** this function is not the same as it was for the C 4030. When upgrading a C 4030 to a C 4070 please bear this in mind! See Adapter leaflet, M.-Nr. 4423920. - Page 10 0 barred Block 2 1 free ** this function is not the same as it was for the C 4030 or C 4031. When upgrading to a C 4070 please bear this in mind! - Continued next page - M.-Nr. 05 706 260...
- Page 11 2 Block 2 (Channel 7 - 12 for tokens) ** this function is not the same as it was for the C 4030 or C 4031. When upgrading to a C 4070 please bear this in mind! M.-Nr. 05 706 260...
-
Page 12: Display Example
Display example Display total day count of all coins Contents of the total sum count (cannot be deleted) ^ Press and release the " Enter " button. General The contents of the total day count for coins (amount) and the total count for coins can be called up without going into program- ming level. -
Page 13: Display Total Day Count Of All Coins (After Entering Into Programming Level)
Display example Display total day count of all coins Larger amounts (over 99.00 or 99.80 GBP depending on coin acceptor being used) are shown scrolling across the screen. Amounts with 4 digits or less do not rotate in Before you begin, first ensure that: the display. -
Page 14: Programming Example
Programming example To change the cost from the standard op- tion of 2.00 EUR to 2.50 EUR Before you begin, first ensure that: – The machine is switched on and washer extractor or tumble dryer doors are shut. ^ Press the " + " button until the amount " The coin control unit will display the pro- 2.50 EUR "... -
Page 15: Of 60 Minutes To 30 Minutes
Programming example To change the main time (in timed ^ Press the " + " button until input position " 03 " shows in the display. operation) from the standard option of 60 minutes to 30 minutes ^ Press the " Enter " button. Before you begin, first ensure that: –... - Page 16 Programming example ^ Press the " - " button once. To block channel 3 ( 0.50 EUR ) Before you begin, first ensure that: – The machine is switched on and washer extractor or tumble dryer doors are shut. The " 0 " on the right of the display shows that the channel is "...
-
Page 17: Displays
Displays Total day count of all coins To delete the total day count The total day count counter adds up all coin payments according to the coins received. This can only be deleted if it has been se- The total day count can be deleted. lected and is visible in the display. -
Page 18: Displays In Programme Operation
Displays in programme operation Display before and after programme The point will disappear after a maximum of 3 minutes (see P07). access has been granted At this stage the coin control unit will not ac- In programme operation the amount of cept any more money. -
Page 19: Programming In Timed Operation
Programming in timed operation Programming the main time The main time can only be altered in steps to match the coin time of the lowest value coins. The limits for this time lie between once and 1440 times. Programming coin time for the lowest value coin Coin time for the coin can be programmed between 1 and 120 minutes. -
Page 20: Special Functions
Special functions Programming the brightness of the This function can also be used to avoid over payment by barring a coin higher in value display than the payment amount, e.g. if the cost is The brightness of the display can be ad- 1.00 EUR the 2.00 EUR coin can be barred. -
Page 21: Allocating A Value To The Coin
Special functions Allocating a value to the coin Example 2 To allocate a value of 1.00 EUR to coin 7 (To- ken WM2). All coins (e.g. coin 7, Token WM 2) can be allocated a specific value - ^ Follow the same procedure as given in ex- from 0.10 EUR to 99.90 EUR - (Standard op- ample 1, however allocating a value of tion 2.00 EUR). -
Page 22: To Switch From Block 1 To Block 2
Special functions To switch from Block 1 to Block 2 Programming from Block 1 to Block 2 To switch from Block 1 to Block 2 The coin tester has 12 channels in Block 1 (channels 1 - 6) for coins and Block 2 (chan- Before you begin, first ensure that: nels 7 -12) for tokens. -
Page 23: Cleaning And Maintenance
Cleaning and maintenance Do not use a high pressure cleaner or hose to clean the machine. The stainless steel outer casing should be cleaned using a suitable proprietary stain- less steel cleaning agent. Do not use abra- sive cleaning agents as they will damage the surface material. -
Page 24: After Sales Service
After sales service In the event of any faults please contact your Dealer or the nearest Service Depart- ment. When contacting the Service Department please quote the model and serial number of your machine. This information is given on the data plate lo- cated at the back of the coin control unit or inside the unit behind the coin/token box. -
Page 25: Abbreviated Operating Instructions
Abbreviated operating instructions Before starting to use the C 4070 coin control unit: Instructions on how to use the coin control unit with a Miele washer extractor, dryer or Miele ro- tary ironer are also given in the Instruction Booklet supplied with the relevant machine. - Page 26 M.-Nr. 05 706 260...
