- Page 1 OPERATION MANUAL RK-2001AT2 SOLID FUEL FIRED BOILER TEMPERATURE CONTROLLER Version AC22...
- Page 2 Product history: Date Version Changes 2010-08-03 A803 Exhaust gas thermostat is used solely for „no fuel” detection. 2010-09-13 A913 Exhaust gas temperature drop below value set with thermostat knob will stop the fan and central heating pump. This will not work if boiler temperature is below minimum temperature.
-
Page 3: Operation

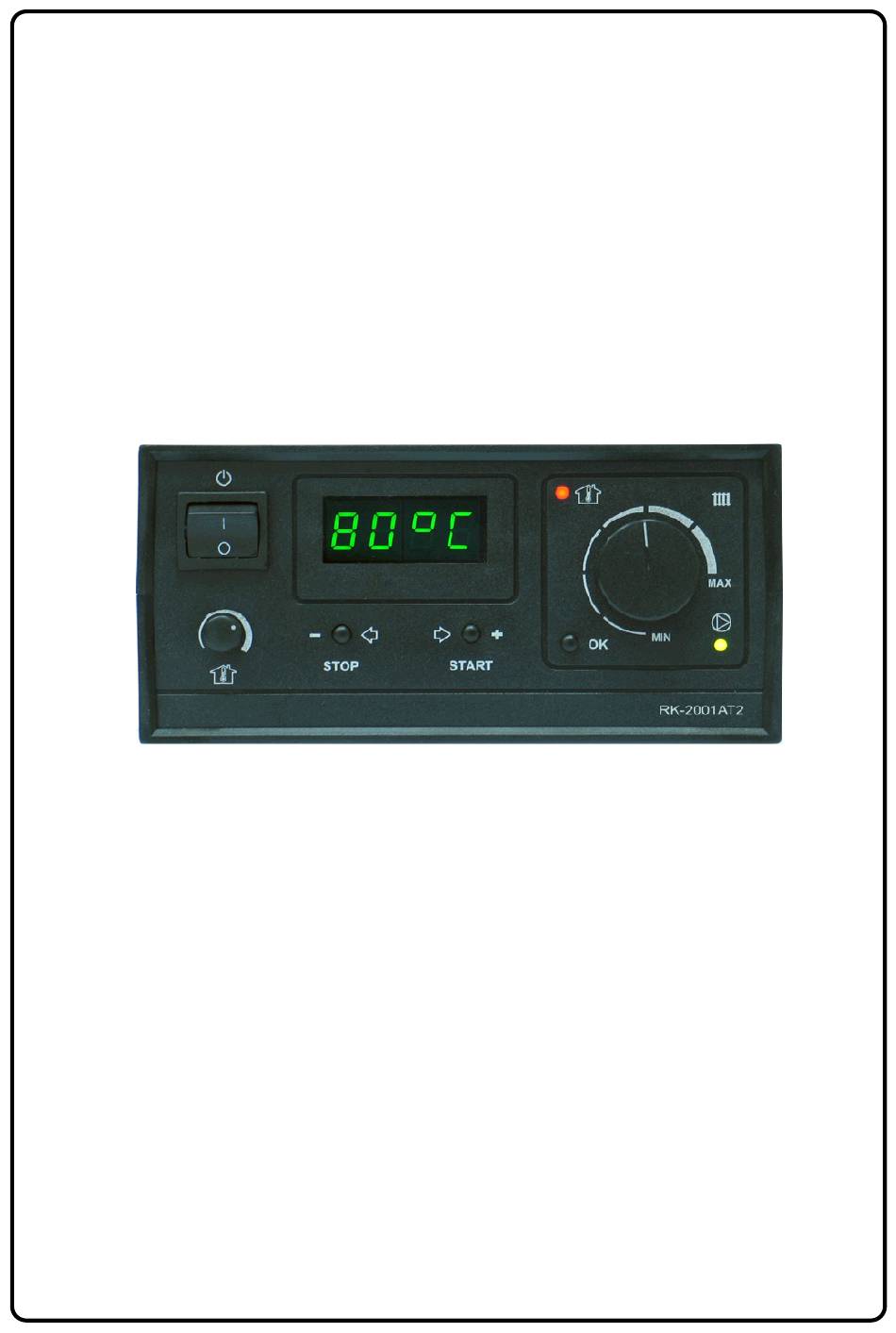

1. Application. RK-2001AT2 controller is a device designed for temperature control of solid fuel fired boilers. The temperature of the boiler is kept on level set by user, by controlling the speed of the pressure fan. The controller monitors temperature of water in the boiler, displays it on the display, and controlls circulating pump. - Page 4 Picture 1. Front of the device. Basic operation of the device is done by setting desired temperature with boiler thermostat knob, other functions are realized according to parameters programmed in service mode. While changing boiler temperature settings with the knob, the change is displayed on the display for a few seconds (for example [C 75]) and this value means the temperature, which the controller will be trying to achieve.
- Page 5 5. Temperature viewing mode. To enter temperature viewing mode press OK. Entering this mode will be signaled by fast blinking of room thermostat indicator. Use < and > buttons to move between viewing different temperatures. To exit temperature viewing mode select [End ] option and press OK button or wait for 1 min.
- Page 6 Table 2. Service parameter's list Factory Disp. Parameter Min Max Step default Fan max work power or max power when Πr Π100 0-10. n 40 Minimum fan power. Πh10 Fan speed decrease coefficient. Automatic fan speed control and time of fan Πr 1 --, 0 start.
- Page 7 6.1. Pressure fan work parameters. Fan power [Π100] - this value defines power of the fan. When „Πr” parameter is set to „0-10” this is the maximum power of the fanwhich can be achieved during automatic fan control. Minimum fan power [n 40] - lowest fan power which can be used when automatic fan speed control is on and when fan speed is gradually increased during boiler start.
- Page 8 - mode [Pr 0] – continuous work. - mode [Pr 1] - pomp work depends on additional thermostat work mode. In [Fc 0] mode central heating pump is turned on when room temperature is too low (additional thermostat connection shorted or room temperature lower than temperature set with additional thermostat knob).
- Page 9 - mode [Fc 0] - means that room temperature sensor is connected to the additional sensor connection. RK-2001AT2 will compare measured room temperature with temperature set with additional thermostat knob. When room temperature is lower than the desired temperature, room thermostat indicator will be lit meaning that boiler should keep temperature set with boiler thermostat knob.
- Page 10 Maximum exhaust gas temperature hysteresis [Fh20] – this parameter describes how much exhaust gas temperature should drop in relation to maximum temperature for the controller to stop [Hot ] alarm and resume normal work. 6.7. Fuel shortage testing. If central heating installation is equipped with exhaust gas temperature sensor ([Fc 1]), then fuel shortage testing starts when exhaust gas temperature falls below temperature set with additional thermostat knob.
-
Page 11: Device Failures
6.9. Testing of device's outputs. To make checking the controller work easier, it is possible to test output circuits which control the fan and the pump, and the circuit which controls additional boiler. By choosing [outP] on the display and pressing OK button you can turn on the circulating pump for a while, by choosing [outΠ] and pressing OK you can turn on the pressure fan and by choosing [outr] and pressing OK you can turn the additional boiler, the alarm signaling system or the mixing valve servo-motor on (if the additional module is... -
Page 12: Specifications
9. Specifications. Voltage: 230V ± 10%, 50Hz Power consumption: <4VA Temperature measurement range: -9–109°C ± 1°C Boiler temperature adjustment range: 30–90°C ± 1°C Programmable boiler overheating protection: 90 –99°C ± 1°C Hardware boiler overheating protection: >95°C ± 1°C Circulating pump launch temperature: 30–70°C ±... - Page 13 Picture 2. RK-2001AT2 connection scheme Picture 3. UM-1 module connection scheme.
- Page 14 10. Notes. Disp. Parameter User Π100 Fan max work power or max power when Πr 0-10. n 40 Minimum fan power. Πh10 Fan speed decrease coefficient. Πr 1 Automatic fan speed control and time of fan start. Πn 5 Fan work time. Πu 6 Fan pause time.
