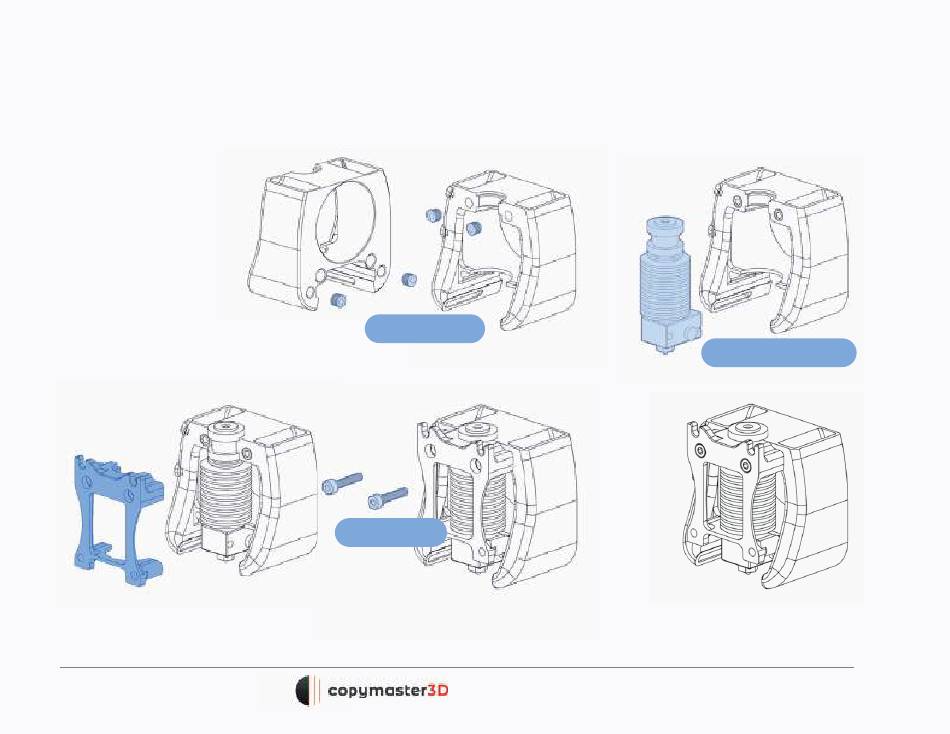

- Page 1 TOOL CARTRIDGE WWW.VORONDESIGN.COM AVAILABLE MOUNTS We also provide mounts for the Slice Engineering Mosquito and TriangleLab/Phaetus Dragon Hotend. They are assembled in a similar manner. Heat Set Insert E3D V6 Style Hotend M3x16 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 2 TOOL CARTRIDGE WWW.VORONDESIGN.COM PTFE Tube M3x40 SHCS PTFE STICKOUT The PTFE tube should end 10mm above the surface of the printed part. www.copymaster3d.com sales@copymaster3d.com...
- Page 3 TOOL CARTRIDGE WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 4 CLOCKWORK WWW.VORONDESIGN.COM Heat Set Insert www.copymaster3d.com sales@copymaster3d.com...
- Page 5 CLOCKWORK WWW.VORONDESIGN.COM BMG Drive Pinion Stepper Motor STEPPER WIRES If the steppers has wires cut them to approximately 150mm. Wires/connector to the right hand side. M3x8 SHCS M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 6 CLOCKWORK WWW.VORONDESIGN.COM BMG Thumb Screw Heat Set Insert BMG Idler Assembly LUBRICATE BEARINGS A light lubrication film will help with smooth operation and longevity. www.copymaster3d.com sales@copymaster3d.com...
- Page 7 CLOCKWORK WWW.VORONDESIGN.COM BMG Drive Assembly CHECK BEARING FIT The bearings must slip on and off the shaft easily. Pressing the bearings on the shaft will damage them. Lightly sand the shaft if required. www.copymaster3d.com sales@copymaster3d.com...
- Page 8 CLOCKWORK WWW.VORONDESIGN.COM M3x30 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 9 CLOCKWORK WWW.VORONDESIGN.COM M3x20 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 10 CLOCKWORK WWW.VORONDESIGN.COM PTFE Tube M3x6 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 11 CLOCKWORK WWW.VORONDESIGN.COM M3x30 SHCS M3x20 SHCS www.copymaster3d.com sales@copymaster3d.com...
-
Page 12: Fan Assembly
FAN ASSEMBLY WWW.VORONDESIGN.COM REMOVE TOP COVER Split the fan open by DON’T OVER TIGHTEN bending the taps on the The screws are screwd side. directly into plastic. M3x16 SHCS www.copymaster3d.com sales@copymaster3d.com... - Page 13 FAN ASSEMBLY WWW.VORONDESIGN.COM Piece of Filament www.copymaster3d.com sales@copymaster3d.com...
- Page 14 FAN ASSEMBLY WWW.VORONDESIGN.COM M3x30 SHCS M3x12 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 15 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 16 PRINT BED & WIRE PATH WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 17 Y ENDSTOP WWW.VORONDESIGN.COM SOLDER WIRES Solder 500mm of wire to the microswitch before inserting it flush into the housing. M3x16 SHCS M5x16 BHCS Microswitch PRELOADED NUTS The nuts have been installed several chapters before. www.copymaster3d.com sales@copymaster3d.com...
- Page 18 M2x10 Self Tapping Apply the required force to fully seat the pulley in the printed part. REMOVE FLANGE & GRUB SCREWS Use a bottle opener or some pliers to remove the top flange. Remove the grub screws from the pulley. www.copymaster3d.com sales@copymaster3d.com...
- Page 19 Z ENDSTOP WWW.VORONDESIGN.COM 5mm Shaft M3x20 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 20 CABLE CHAIN WWW.VORONDESIGN.COM FIXED END VS. FREE END Some cable chains only have one end that is able to swing freely. Use this end on the back of the Afterburner. M3x6 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 21 CABLE CHAIN WWW.VORONDESIGN.COM M3x6 BHCS FIXED END VS. FREE END If you cable chain as a fixed and use this end on the XY joint. www.copymaster3d.com sales@copymaster3d.com...
-
Page 22: Print Bed
A removable surface is recommended. Preinstalling the screws is possible but not recommended as those will interfere with the heater application. Read/watch a guide about the proper application if you are unsure. www.copymaster3d.com sales@copymaster3d.com... - Page 23 PRINT BED WWW.VORONDESIGN.COM HEATER APPLICATION Attach the heater to the bottom of the plate with wires facing away from the center hole. Read/watch a guide on heater installation if you are unsure about the procedure. Heater Pad Thermal Fuse www.copymaster3d.com sales@copymaster3d.com...
- Page 24 PRINT BED WWW.VORONDESIGN.COM SCREW ACCESS HOLES Cut holes for the screws. M3x16 SHCS REPEAT FOR SECOND MOUNT M3 Shim M3 Thumb Nut www.copymaster3d.com sales@copymaster3d.com...
- Page 25 PRINT BED WWW.VORONDESIGN.COM M3x40 SHCS Die Spring M3 Thumb Nut www.copymaster3d.com sales@copymaster3d.com...
- Page 26 Z ENDSTOP WWW.VORONDESIGN.COM ADJUST Z ENDSTOP POSITION The shaft of the Z Endstop must not touch the print bed. Adjust the position if required. www.copymaster3d.com sales@copymaster3d.com...
- Page 27 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 28 SKIRTS & BOTTOM COMPARTMENT WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
-
Page 29: Power Inlet
POWER INLET WWW.VORONDESIGN.COM Heat Set Insert Keystone Blank RJ45 Keystone Adapter RJ45 Keystone Adapter Power Inlet www.copymaster3d.com sales@copymaster3d.com... - Page 30 SKIRTS & DISPLAY WWW.VORONDESIGN.COM Heat Set Insert M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 31 DISPLAY WWW.VORONDESIGN.COM Mini12864 Display M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 32 SKIRTS WWW.VORONDESIGN.COM M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 33 SKIRTS WWW.VORONDESIGN.COM M3x8 SHCS M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 34 SKIRTS & DISPLAY WWW.VORONDESIGN.COM M3x8 SHCS M5x10 BHCS www.copymaster3d.com sales@copymaster3d.com...
-
Page 35: Deck Panel
DECK PANEL WWW.VORONDESIGN.COM DIN Rail DECK PLATE DIMENSIONS Refer to Github for drawings and dimensions. M5x16 BHCS www.copymaster3d.com sales@copymaster3d.com... -
Page 36: Electronics Compartment
ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com... - Page 37 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM M5x10 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 38 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM M5x10 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 39 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM CUTOUT TOWARDS THE BACK The wires will be routed through the cutouts. Make sure they are pointing towards the back of the printer. www.copymaster3d.com sales@copymaster3d.com...
- Page 40 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM M5x10 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 41 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM DIN Rail M3x16 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 42 ELECTRONICS COMPARTMENT WWW.VORONDESIGN.COM M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 43 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 44 ELECTRONICS WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 45 ELECTRONICS WWW.VORONDESIGN.COM SSR Din Mount M4x6 BHCS M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 46 ELECTRONICS WWW.VORONDESIGN.COM M2x10 Self Tapping M2x10 Self Tapping www.copymaster3d.com sales@copymaster3d.com...
- Page 47 ELECTRONICS WWW.VORONDESIGN.COM M2x10 Self Tapping M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 48 ELECTRONICS WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 49 ELECTRONICS WWW.VORONDESIGN.COM M4x6 BHCS M4x6 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 50 ELECTRONICS WWW.VORONDESIGN.COM M5x10 BHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 51 ELECTRONICS WWW.VORONDESIGN.COM SPRING LOADED Use a flat head screw driver to pull the latch open. It will lock open. Be careful when releasing the latch, it will snap back into place. Mind your fingers. www.copymaster3d.com sales@copymaster3d.com...
- Page 52 ELECTRONICS WWW.VORONDESIGN.COM APPLY VHB TAPE 3M VHB tape is a double sided adhesive tape. Other vendors have similar products that you can use as a substitute. www.copymaster3d.com sales@copymaster3d.com...
- Page 53 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 54 REAR PANEL & EXHAUST WWW.VORONDESIGN.COM WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 55 EXHAUST WWW.VORONDESIGN.COM Heat Set Insert www.copymaster3d.com sales@copymaster3d.com...
- Page 56 EXHAUST WWW.VORONDESIGN.COM BSPP ADAPTER Some adapters have a small lip that prevents the PTFE tube from passing through. Inspect the adapter and if necessary use a drill to carefully remove the lip. www.copymaster3d.com sales@copymaster3d.com...
- Page 57 EXHAUST WWW.VORONDESIGN.COM M3x8 SHCS M3x30 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 58 EXHAUST WWW.VORONDESIGN.COM APPLY VHB TAPE Filter Material VHB Tape is a double sided adhesive tape. www.copymaster3d.com sales@copymaster3d.com...
-
Page 59: Rear Panel
HAMMERHEAD NUTS? A drop of thread locker will turn the M3x8 SHCS hammerhead nuts into a 1/4 turn quick release for the panels. Best done once the M3x8 SHCS assembly is finished. M3 Hammerhead Nut M3 Hammerhead Nut www.copymaster3d.com sales@copymaster3d.com... - Page 60 REAR PANEL WWW.VORONDESIGN.COM APPLY FOAM TAPE Use foam tape on the contact areas between the panels and the frame to mitigate noise from vibrations. www.copymaster3d.com sales@copymaster3d.com...
- Page 61 WWW.VORONDESIGN.COM M3x12 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 62 REAR PANEL WWW.VORONDESIGN.COM M5x10 BHCS REMOVE TAPE BACKING www.copymaster3d.com sales@copymaster3d.com...
- Page 63 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 64 PANELS WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 65 PANEL MOUNTS WWW.VORONDESIGN.COM APPLY FOAM TAPE Use foam tape on the M3x8 SHCS M3 Hammerhead Nut highlighted areas to mitigate noise from vibrations. www.copymaster3d.com sales@copymaster3d.com...
-
Page 66: Top Panel
TOP PANEL WWW.VORONDESIGN.COM APPLY FOAM TAPE Use foam tape on the contact areas between the panels and the frame to mitigate noise from vibrations. www.copymaster3d.com sales@copymaster3d.com... -
Page 67: Side Panel
SIDE PANEL WWW.VORONDESIGN.COM WWW.VORONDESIGN.COM APPLY FOAM TAPE Use foam tape on the contact areas between the panels and the frame to mitigate noise from vibrations. www.copymaster3d.com sales@copymaster3d.com... -
Page 68: Front Panel
Magnets APPLY VHB TAPE MIND THE MAGNET POLARITY The parts will be bonded to the panels Ensure that the magnets are facing in the right using double-sided adhesive tape. direction prior to glueing them into place. M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com... - Page 69 MIND THE MAGNET POLARITY Ensure that the magnets are facing in the right direction prior to glueing them into place. APPLY VHB TAPE The parts will be bonded to the panels using double-sided adhesive tape. M3x8 SHCS M3 Hammerhead Nut www.copymaster3d.com sales@copymaster3d.com...
- Page 70 FRONT PANEL WWW.VORONDESIGN.COM M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
-
Page 71: Electronics Panel
ELECTRONICS PANEL WWW.VORONDESIGN.COM ROTATE LEVERS TO LOCK Use the levers to lock and unlock the panel for the electronics M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com... -
Page 72: Bottom Panel
BOTTOM PANEL WWW.VORONDESIGN.COM M3x6 BHCS www.copymaster3d.com sales@copymaster3d.com... - Page 73 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
- Page 74 WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
-
Page 75: Spool Holder
SPOOL HOLDER WWW.VORONDESIGN.COM PTFE Tube M5x16 BHCS www.copymaster3d.com sales@copymaster3d.com... - Page 76 BOWDEN HOLDER & XY CAPS WWW.VORONDESIGN.COM M3x8 SHCS www.copymaster3d.com sales@copymaster3d.com...
- Page 77 WWW.VORONDESIGN.COM This page intentionally left blank. www.copymaster3d.com sales@copymaster3d.com...
-
Page 78: Next Steps
If you need assistance with your build, we’re here to help. Head on over to our Discord group and post your questions. This is our primary medium to help VORON Users and we have a great community that can help you out if you get stuck. https://discord.gg/voron www.copymaster3d.com sales@copymaster3d.com... - Page 79 WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
- Page 80 WWW.VORONDESIGN.COM VORON Website Github Discord vorondesign www.vorondesign.com https://github.com/ https://discord.gg/voron www.copymaster3d.com sales@copymaster3d.com...
- Page 81 WWW.VORONDESIGN.COM www.copymaster3d.com sales@copymaster3d.com...
