Names Of Parts; Operating Instructions; Storage - Intex QuickFill AP609 Owner's Manual

Back to defl ate
AC Power plug
Detachable
DC cigarette
lighter plug
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

Operating instructions:

1. Connect the air hose to the air pump (Front to infl ate, Back to defl ate).
2. Select the power source: 12V DC cigarette
lighter outlet or 220 - 240V AC household
power outlet. Connect the DC or AC plug
to the power connector.
3. Select the desired nozzle size.
4. For faster infl ation press "–" (high volume-low pressure air fl ow) to
infl ate soft articles such as, airbeds or infl atable toys.
5. Turn the switch to "=" (low volume-high pressure air fl ow) to infl ate
articles that require fi rmness or rigidity such as, athletic balls or fi shing
boat.
NOTE: Always start with "–" high volume-low pressure setting for
faster infl ation and then turn the switch to "=" low volume-high
pressure for fi rmness if necessary. Maximum pressure: 0.083MPa
(0.83bar).
6. Infl ate article. NOTE: To prevent bursting, do not over infl ate.
7. Switch OFF by pressing "O".

Storage:

No specifi c maintenance is required for the air pump. Air pump has no
user serviceable parts.
Return pump, hose, nozzles and plugs to packing carton, and store
indoors when not in use.
©2022 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos
reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas
utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/
an Intex Development Co. Ltd., Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/
Distribué dans l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Ettenseweg 46,
4706 PB Roosendaal – The Netherlands • Distributed in the UK by Unitex Service (UK) Limited, 21 Holborn Viaduct, London EC1A 2DY, UK.
www.intexcorp.com
SAVE THESE INSTRUCTIONS
(54) AIR PUMP AP609 ENGLISH 4.875"X7.25" 03/25/2022

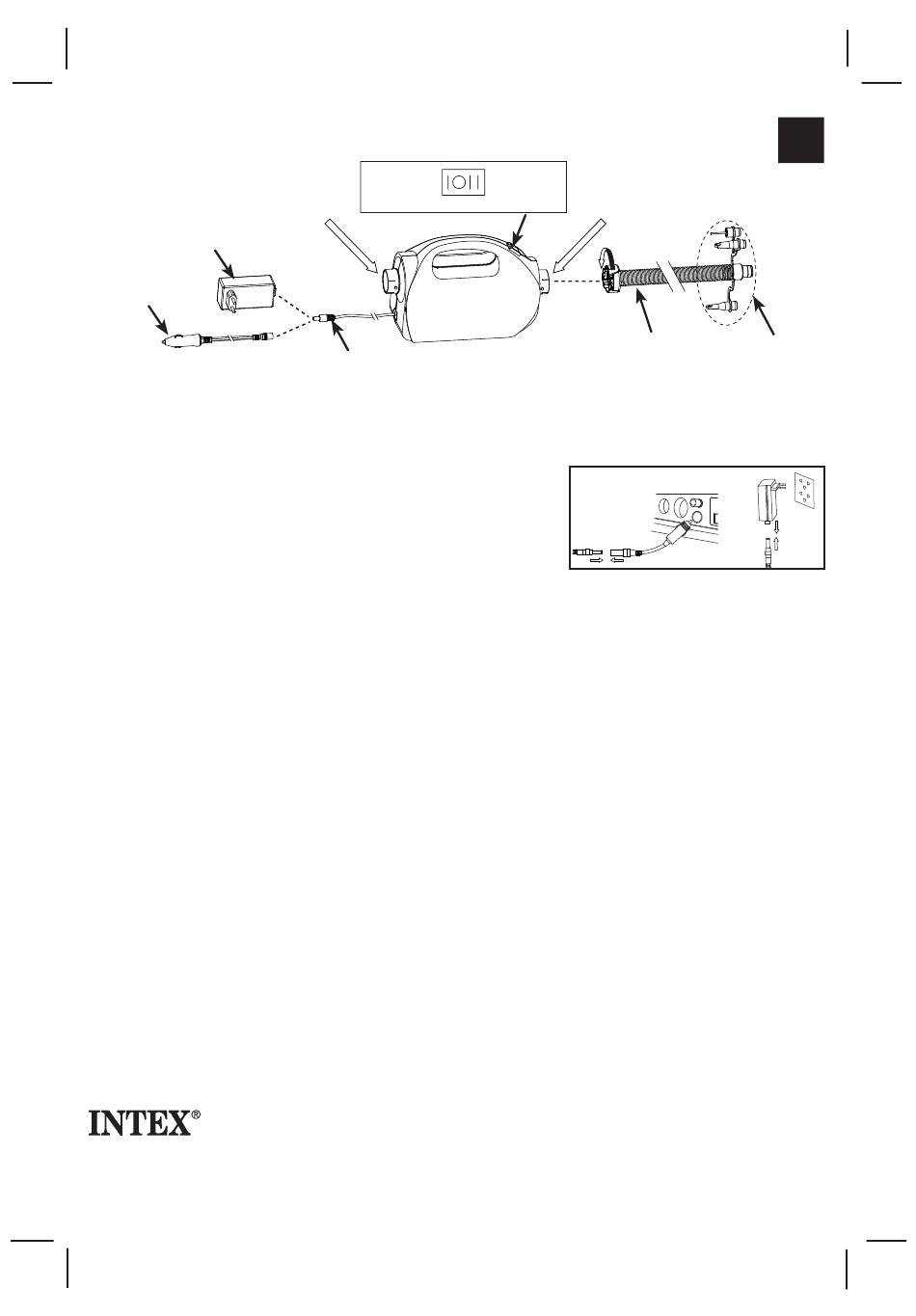

NAMES OF PARTS

High volume- Low volume-
low pressure
high pressure
Switch
Power connector
Page 2
Front to infl ate
Air hose
or
54
Nozzles
