Avnet UltraZed-EV Getting Started

UltraZed-EV Starter Kit
GETTING STARTED:
1. If not previously installed, go to avnet.me/SiLabUsbToUartVCP
download and install the Silicon Labs CP210x USB-to-UART driver.
2. Plug the UltraZed-EV SOM onto the UltraZed-EV Carrier Card via
JX1/JX2/JX3 connectors.
3. Set the UltraZed-EV SOM SW2 Boot Mode switch (MODE[0:3] = SW2[1:4]) to
OFF, ON, ON, and ON positions (Boot Mode set to QSPI, MODE[3:0] = 0x1).
4. Install a jumper on the Carrier Card JP20 pins 2-3.
5. Connect the micro USB cable to J16 on the Carrier Card and the USB port
of the PC. This will provide USB-UART connection to the board.
6. Connect 12V power supply to J18 on the Carrier Card.
7. Use Device Manager to determine the COM Port. Open a terminal program,
configure it to 115200/8/n/1/n, connect to the COM Port.
8. Slide the Carrier Card power switch (SW7) to the ON position.
9. The out-of-box design will run and you will see the following on the UART
terminal (please allow time for Linux to boot). You should also see the PS
on-board user Red LED flashing.
10. Go to avnet.me/UltraZed-EV to download
a detailed Getting Started Guide.

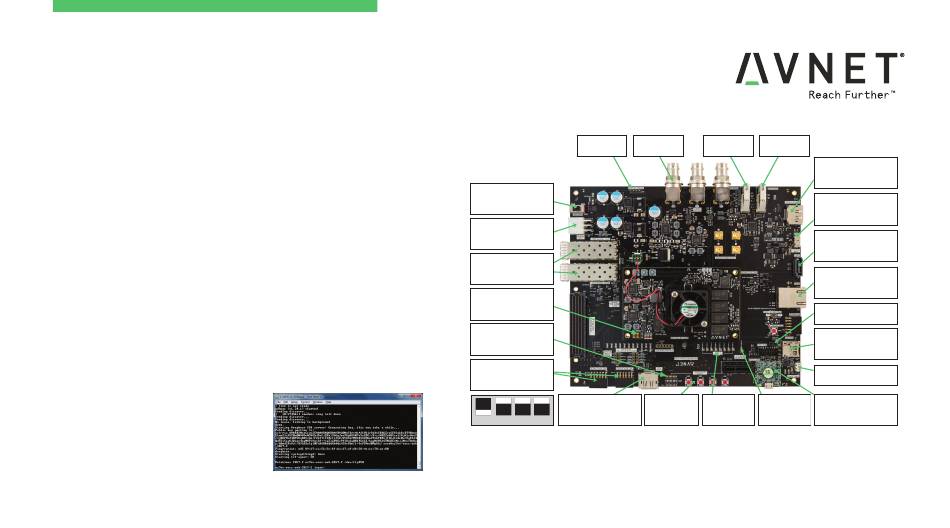

to
Power Switch
(SW7)
12V Connector
(J18)
SFP+ Connectors
(P3 and P4)
Boot Mode
Switch (SW2)
PL DIP Switches
(SW5)
PL PMOD
Headers
ON
OFF
1 2 3
SW2 Boot Mode
Switch
PMBus 3G-SDI HDMI IN
LVDS Touch Panel PL Push PL User
Connector (P2) Switches LEDs
4
HDMI Out
DisplayPort
Connector (P1)
USB2.0/3.0
Connector (J17)
SATA
Connector (J6)
RJ45
Connector (J8)
JP20 Jumper
microSD Card
(J7)
USB-UART (J16)
PS User USB-JTAG
LED Module (U14)
