Introduction
1.1 Product Description
G/EPON 1GE+1FE+WiFi+CATV ONU meets telecom operators FTTO (office), FTTD
(Desk) ,FTTH(Home) broadband speed, SOHO broadband access, video surveillance and
other requirements to design an EPON/GPON Gigabit Ethernet products
mature and stable, cost-effective EPON/GPON technology, high reliability, easy management,
configuration flexibility and good quality of service (QoS) guarantees to meet the technical
performance of IEEE802.3ah and
technical requirements and other specifications.
Dual mode

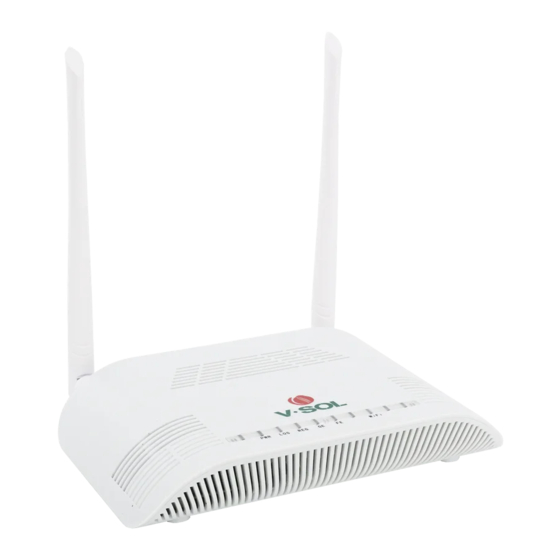

Figure 1 1GE+1FE+WiFi ONU
1.2 Product categories
Product model Product specification
V2802W
V2802WT
G/EPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1
ITU-TG.984.x
1 G/EPON+1GE+1FE+WiFi
1 G/EPON+1GE+1FE+WiFi +CATV
Table 1
, China Telecom EPON/GPON equipment
Figure 2 1GE+1FE+WiFi+CATV ONU
Chipset
Realtek
Product categories
1
It is based on
.
CATV ONU
SDRAM Memory
64MB
Access the world
Advertisement
Table of Contents
Related Manuals for V-Sol V2802W
Summary of Contents for V-Sol V2802W
- Page 1 CATV ONU Dual mode Figure 1 1GE+1FE+WiFi ONU Figure 2 1GE+1FE+WiFi+CATV ONU 1.2 Product categories Product model Product specification Chipset SDRAM Memory V2802W 1 G/EPON+1GE+1FE+WiFi Realtek 64MB V2802WT 1 G/EPON+1GE+1FE+WiFi +CATV Table 1 Product categories Access the world...
- Page 2 G/EPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 1.3 Application Chart EPON/GPON OLT Figure 3 Application Chart 1.4 Technical parameters Technical item 1GE+1FE+WiFi 1GE+1FE+WiFi+CATV 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm, Saturability: -8dBm PON interface Transmitting optical power: 0~+4dBm Transmission distance: 20KM Wavelength Tx1310nm,Rx 1490nm...
- Page 3 DC 12V/1A ≤6W ≤7W Power supply Dimension 185mm×120mm×34mm（L×W×H） Net weight 0.24Kg 0.29Kg Table 2 Technical parameters 1.5 Panel lights V2802W PWR LOS GE FE CATV WiFi V2802WT Mark Status Description Device is powered up. Power Device is powered down. Blink Device does not receive optical signals.
- Page 4 Table 3 Panel lights on Interface description Port Type Function V2802W: SC/UPC type, single mode optical fiber cable V2802WT: SC/APC type, single mode optical fiber cable with WDM GE、FE Connect device with ethernet port by RJ-45 cat5 cable. Press down reset button and keep1-5seconds to make the device restart and recover from the factory default settings.
- Page 5 G/EPON 1GE+1FE+WiFi+CATV ONU Introduction V1.1 Support 4K VLAN VLAN Support VLAN Tag/untag Support VLAN Translation Support VLAN Bound Support Auto VLAN Detection Support IGMPv1/v2 Multicast Support IGMP Snooping Support MLD Max Multicast Group 64 Support 4 queues Support SP and WRR Support 802.1P Support DHCP/PPPOE/Static IP Support NAT...
