Installation & Operating Instructions
LED 4 in 1 Hanging Sign Light Model - ELLEDH2
This unit should be installed by a competent person and in accordance the current IET Wiring
Regulations. If in doubt consult a qualified electrician. Switch off mains supply before installation,
Maintenance or replacing lamps.
This product must not be modified. Any modification will negate any Safety Mark Approvals and may
render the product unsafe. GreenBrook accepts no responsibility for modified products. This product
must be installed in accordance with these instructions.
This fitting should not be installed in close proximity to any external source of heat or covered with any
heat insulating material, air flow around the fitting should not be restricted. Note any minimum distances
to adjacent surfaces. This unit should be connected to the lighting supply circuit, or fused at a
maximum of 3A.
This unit is a maintained, self-contained LED edge-lit hanging exit sign emergency luminaire.
Follow these instructions carefully to ensure safe and reliable operation. Retain this leaflet for future
reference. The emergency luminaire should be connected to a stable and permanent mains supply of
the correct rated voltage and frequency as stated on the product specification label. This may be from
the lighting supply circuit, or fused at a maximum of 3A. To facilitate testing a switched fused spur box
can be included in the unswitched permanent live supply.
Class I. This product must be earthed.
All switching etc, shall comply with BS 5266 Part 1. Unless specifically permitted, emergency luminaires
should not be connected or controlled by any energy management device. Before commencing
installation, ensure that the electricity supply and battery pack are disconnected.
The Greenbrook ELLEDH2 sign can be mounted in a number of different ways and is supplied with the
brackets required for mounting. Diagrams 1 to 4 show the different methods of mounting this product.
All installations will require the main case to be opened.
To open the main casing, remove the screw from the end of the casing and release the clip at the
opposite end.

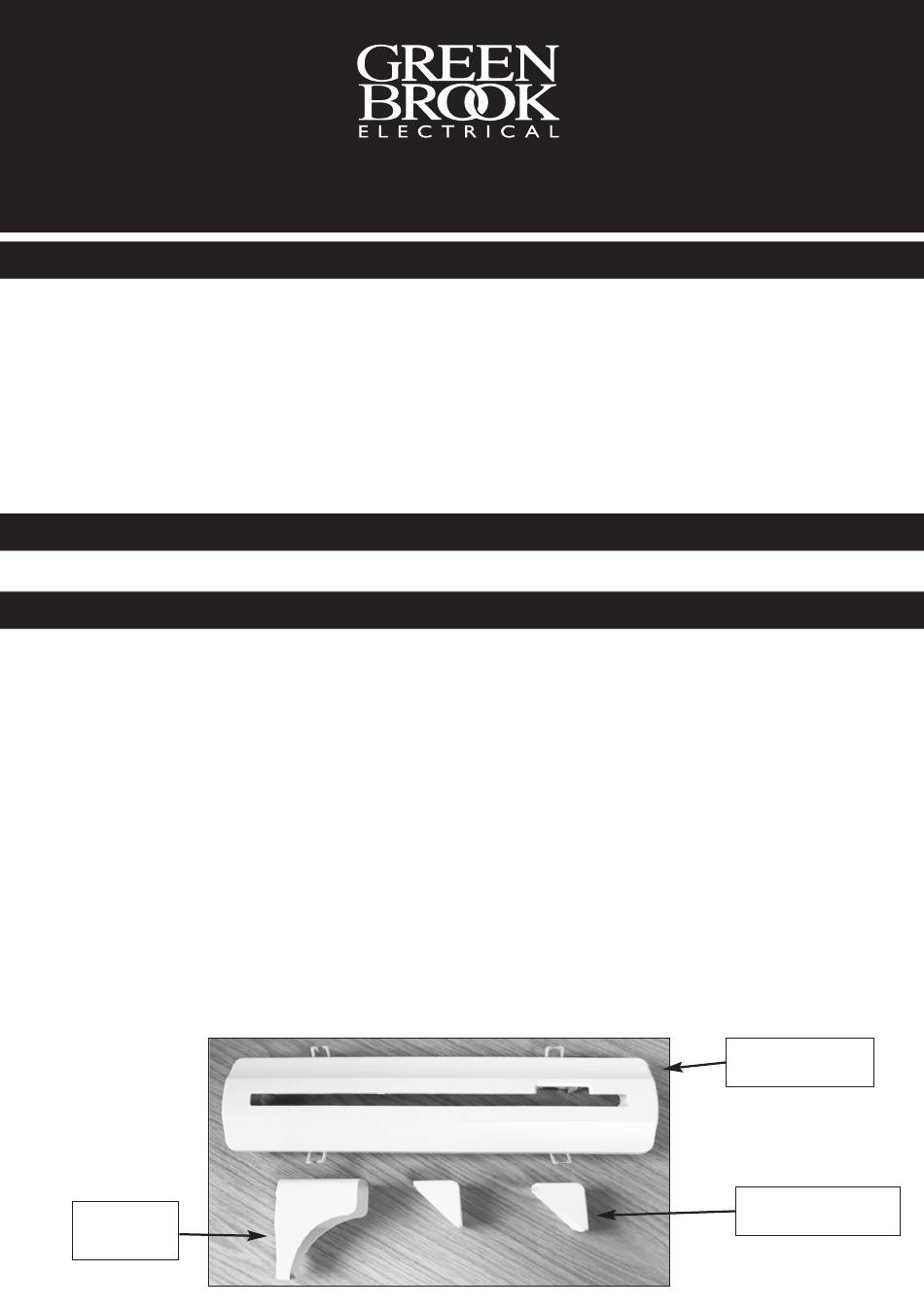

Supplied Brackets
Flagpole
Bracket

SAFETY

GENERAL DESCRIPTION

INSTALLATION INSTRUCTIONS

'Phoenix' Range
For
Recess Mounting
Bracket
Wall Mounting
Bracket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix ELLEDH2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Green Brook Phoenix ELLEDH2

  • Page 1 Installation & Operating Instructions ‘Phoenix’ Range LED 4 in 1 Hanging Sign Light Model - ELLEDH2 SAFETY This unit should be installed by a competent person and in accordance the current IET Wiring Regulations. If in doubt consult a qualified electrician. Switch off mains supply before installation, maintenance or replacing lamps.
  • Page 2 Note: To remove hanging fitting from the main body unscrew metal cap as shown. Remove screw to release fixing screws to attached chosen bracket. For Hanging Sign - Dia 1 To install the unit as a hanging sign, open main case and connect battery. Close case and screw shut. Using the ceiling mount bracket as a template mark the location of the fixing holes the cable can be side or rear entry.
  • Page 3 Flagpole Wall Mounted Wall Wall Dia.3. Dia.4. WIRING INSTALLATION Wiring Diagram (N)Neutral - Blue (L) Switched Live - Brown (E)Earth - (L)Permanent Live - Green/Yellow Brown Terminal (L1): On this unit continuous illumination is provided by a link connected between the L1 and L terminal, this can be replaced by a switch for on/off control.
  • Page 4 To change the sign: This product can be used with interchangeable legends - (ELLEDHL Arrow Left , ELLEDHR Arrow Right and ELLEDHDN Arrow down). (1 ) 1. To remove the legends there is one on each side of the light panel, undo the 3 clamping screws (1) positioned along the bottom of the legend.
  • Page 5 ROUTINE INSPECTION & TEST PROCEDURE All tests should be undertaken during daylight hours at times of minimum risk and be in accordance with the recommendations of BS 5266 Part1. DAILY - Check that the three green LED battery charging / lamp failure indicators are illuminated. MONTHLY - In addition to the daily check, a functional test through simulation of mains supply failure should be carried out to confirm lamps are illuminated from the battery cell pack supply.
  • Page 6 TECHNICAL INFORMATION Power Rating: 230V/240V AC - 50Hz Colour Temp: 6500K Power Maintained Consumption: Lamp Type: LED Non-replaceable Lumen Output: Maintained 20 lm Battery 20 lm (Emergency mode) Battery Life at 20°C: > 4 years Class Type: Operating Temp Range: 0°C - 40°C Emergency Light Response Time (S): 1 second...
