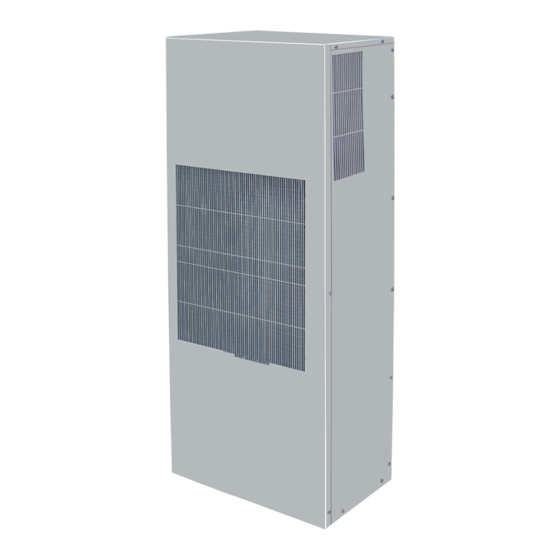

Kooltronic K3NA4C18DP53L Installation Instructions

I. Introduction

These instructions provide you with the general information necessary for proper installation of the air conditioners.
BEFORE INSTALLING THE AIR CONDITIONER, IT IS IMPORTANT THAT THESE INSTRUCTIONS BE READ AND UNDERSTOOD THOROUGHLY

II. Incoming Inspection

Kooltronic Air Conditioners are designed, built and packaged to withstand the shock and vibration normally associated with shipment by common carriers. Occasionally
improper handling during shipping causes damage. Such handling could include unbanding of palletized shipments, failing to respect "This Side Up" arrows, rough
handling, falling off conveyors, excessive vibration, crushing, etc. Therefore, a thorough inspection should be done upon receipt of all shipments. Any carton tears, dents,
scratches, loose articles or evidence of oil are signs of damage and should be noted on the Freight Bill. Cartons should be opened promptly and the units inspected for
CONCEALED DAMAGE. Kooltronic Air Conditioners must be delivered in the proper mounting position to assure that damage to the compressor has not occurred during
shipping. Any Kooltronic Air Conditioner that is delivered removed from the banded pallet, lying down or double stacked should be refused.
An immediate claim MUST be filed with the freight carrier and an inspection requested. Retain all packing materials. Kooltronic cannot assume responsibility for Consignee's
failure to file a timely freight claim.

II. Pre-Installation Testing

1. The unit must be operated in its proper mounting position. If attempts are made to operate the unit not in its designed mounting position, permanent compressor
damage will occur. This action will void the warranty. The unit must sit in its proper mounting position for a minimum of five (5) minutes to allow the compressor oil to
settle, at a minimum room temperature of 65ºF.
2. Refer to the nameplate for proper electrical voltage and current requirements. Connect the power cord to a properly grounded and fused electrical supply, leaving electrical
power to the unit turned off.
3. Turn the electrical power on.
4. Verify that the evaporator blower or fan is running.
5. Observe the temperature on the digital display. The thermostat must be set a minimum of 10ºF below this temperature for the compressor to operate (the factory setting
is 75ºF). To adjust the thermostat, push the set button for two (2) seconds, then use the arrows to set the temperature.
6. Operate the air conditioner for approximately ten (10) minutes. During this period the evaporator fan should operate continuously and no unusual noise or vibration should
be evident. The condenser blower is controlled by a pressure switch and may not start for several minutes. Depending on ambient conditions, the condenser blower may
cycle during the test. The cool air discharged should be less than 70ºF when the room temperature is between 70ºF and 80ºF. It is normal for the condenser blower to
cycle on/off during this period.
7. Reset the thermostat to the factory setting. WARNING: Operating the unit below 75ºF may result in freezing of the evaporator coil.
8. Turn off the electrical power and disconnect the air conditioner from the power source.

IV. Mounting

Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your air conditioner, please read the following information before installation:
1. It is recommended that a lift truck be used for installation.
2. Attach the mounting bracket to the enclosure using (3)
customer enclosure (see mounting drawing).
3. Place the air conditioner on the lift truck.
4. Adjust the lift truck height so that the air conditioner hook is located approximately
bracket.
5. Move the air conditioner toward the enclosure panel so that the gap between the hook and the enclosure is
1 /
about -inch.
2
6. Slowly move the lift truck down until the hook engages with the mounting bracket. Continue to lower the lift
truck. The air conditioner will hang from the mounting bracket flush against the mounting panel.
1 /
7. Insert (8) -inch hex bolts with sealing washers through mounting holes in the enclosure into the cage nuts
4
in the air conditioner and tighten (see mounting drawing).
Kooltronic Air Conditioners must be standing in their proper mounting position for a minimum of
five (5) minutes prior to testing. Failure to follow this procedure will cause permanent damage to
the compressor. To avoid compressor damage do not tip the unit more than 45 ° from its proper
.
mounting position
Kooltronic Air Conditioners must be operated in their proper mounting position. If attempts are made
to operate a unit that is not in its designed mounting position, permanent compressor damage will
occur. This action will void the warranty.
If the air conditioner is mounted to the cabinet door you must be sure that the door hinges will support
the additional weight of the air conditioner. Also be certain that when the door is opened fully, the
cabinet does not become unbalanced. The weight of the unit is 224 lbs. Additional technical data can
be found in the performance specifications in the Operator's Manual available online.
1 /
-inch nuts, (3) sealing washers and (3)
4
CAUTION
KOOLTRONIC, INC. 30 Pennington-Hopewell Road Pennington, NJ 08534
609 • 466-3400 FAX: 609 • 466-1114
CAUTION
1 /
-inch mounting nuts. Sealing washers must be placed against
4
1 /
-inch above the mounting
2
kooltronic.com
Installation Instructions
Model K3NA4C18DP53L
Model K3NA6C18DP53L
MOUNTING BRACKET
MOUNTED ONTO
CUSTOMER'S ENCLOSURE
A/C
UNIT
1/4" CAGE NUT
ON THE INSIDE
OF A/C UNIT (8)

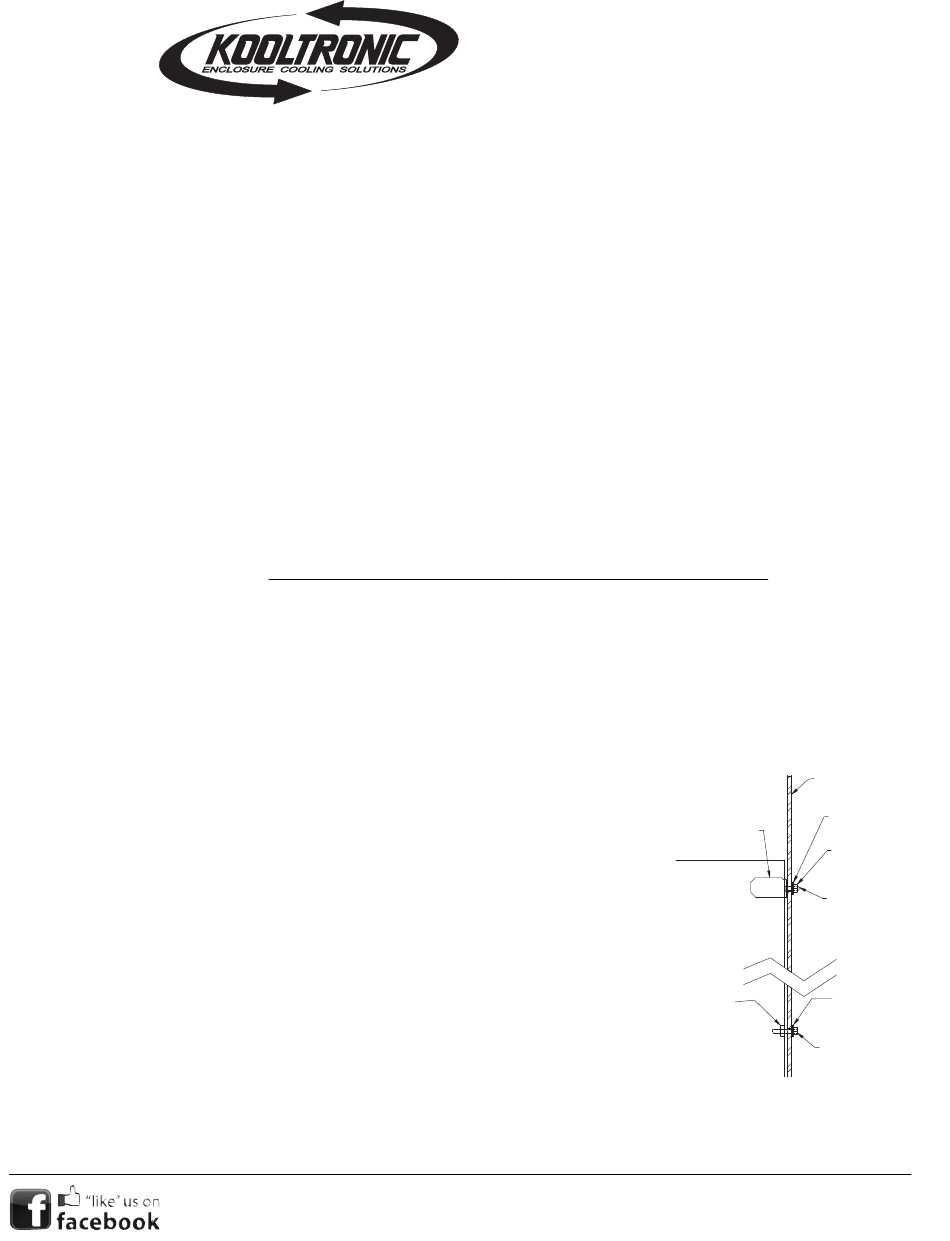

MOUNTING DRAWING
ENCLOSURE WALL
WASHER W/ NEOPRENE (8)
(NEOPRENE SIDE AGAINST
ENCLOSURE)
1/4" NUT (3)
STUD FROM BRACKET (3)
WASHER W/ NEOPRENE (8)
(NEOPRENE SIDE AGAINST
ENCLOSURE)
1/4" HEX BOLT
1-1/4" LONG (8)
900-090-21 (10/21)
(CDR: 20368)
