MyTana ACB18 User Manual

Control box
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Inspect your unit carefully
upon receipt. Let us know right
away of any damage you may note.
Included with your purchase are:
WiFi Router (dongle) enables
wireless connection to your
phone or tablet (with our
Viewer APP). Plugs in to USB
port. See separate instructions
for WiFi operations.
Removable USB (flash) drive
Warranty Information Inspection Systems
All products are warranted against defects in material and workmanship for one year from date of purchase.
All products are individually tested prior to shipment. Damage due to negligence, abnormal usage, accidents,
or alteration is not covered by this warranty. Examples of damage not covered by warranty:
Damaged Camera Head Connector Ends
For PGR systems: see back page for how to care for the camera
head connection.
For our older systems with pin connectors on the camera head,
we recommend keeping the head attached to the push rod at
all times to avoid accidental damage.
Damaged or Broken Connection Pins
For current PGR systems with a patch cord, care should be taken
to avoid damage to the pins. Read all instructions carefully.
For our older systems with pin connectors on the patch cord.
Be sure to line up all notches and pin holes when connecting.
Don't force any connection.
052622
Manufacturers of Quality
Sewer and Drain Cleaning
Equipment since 1957

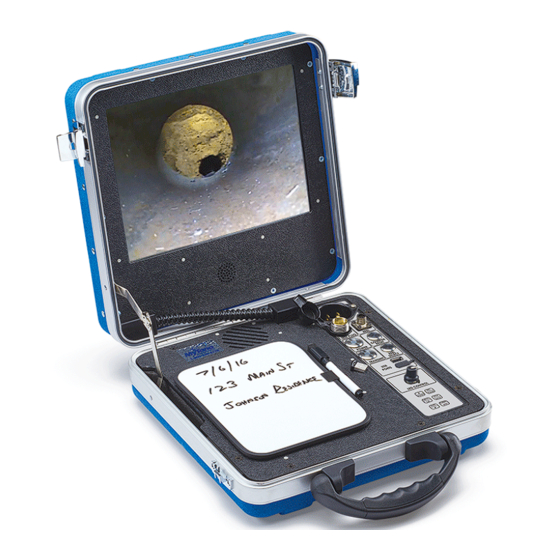

ACB18 Control Box
User Guide
Replaces our older ACB13 Monitor/Control Box for MyTana Classic style cameras
www.MyTana.com
746 Selby Ave • St. Paul, MN 55104
fax: (651) 222-1739
Broken Sapphire Window
The sapphire is nearly as hard as
diamond; however it can break with
extreme impact, especially on sharp
edges of broken concrete or clay tile.
Using our IceBall, Snoball or other protec-
tive guides greatly reduces impact to the
camera head.
Damaged Pushrod
The camera should not be forced through blockages. This
can cause the wires inside the push rod to become kinked,
buckled or severed. Guides and running water can help
reduce friction as you push the camera through a pipe.
(800) 328-8170
Factory Direct Customer Service
M –F 7am – 5pm CST
Competent • Polite • Clear
Help prevent
repairs, see our
Care Tips
back cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACB18 and is the answer not in the manual?

Questions and answers

Related Manuals for MyTana ACB18

Summary of Contents for MyTana ACB18

  • Page 1 ACB18 Control Box User Guide Replaces our older ACB13 Monitor/Control Box for MyTana Classic style cameras Inspect your unit carefully upon receipt. Let us know right away of any damage you may note. Included with your purchase are: WiFi Router (dongle) enables...

  • Page 2: Controls And Ports

    PG 2 MyTana ACB18 MONITOR / CONTROL BOX User Manual Controls and Ports TEST PLUG Allows you to test camera head POWER SOURCE RECEPTACLE Any 3 prong extension cord can be used to separately from push rod MyTana classic style power unit or recharge battery.

  • Page 3: Operating The System

    PG 3 MyTana ACB18 MONITOR / CONTROL BOX User Manual Operating the System BASICS RECORDING VIDEO – Push REC/PAUSE We strongly recommend doing a test recording BEFORE you perform your first inspection in the field. – Use the Control Panel arrow buttons to choose the drive you want to record to: Internal, External or Both.

  • Page 4: Screen Menus

    PG 4 MyTana ACB18 MONITOR / CONTROL BOX User Manual Screen Menus MAIN MENU FILE MANAGEMENT MENU Menu Play Video Push on the control If an external (flash) drive is NOT inserted MENU/OK View snapshots panel to bring up the Main Menu...
  • Page 5 PG 5 MyTana ACB18 MONITOR / CONTROL BOX User Manual TO COPY/MOVE OR DELETE FILES File Management Delete files from internal There must be a flash drive inserted in the USB port to Copy or Move files. Select files : Individual Read information in previous section (left) before doing these procedures.

  • Page 6: Overlay Menu

    PG 6 MyTana ACB18 MONITOR / CONTROL BOX User Manual Screen Menus continued OVERLAY MENU Tasks that do not The Overlay menu lets you edit the text field overlays that appear on your videos or images. require a keyboard are You can also change the time format of the time/date stamp.
  • Page 7 PG 7 MyTana ACB18 MONITOR / CONTROL BOX User Manual WORKING WITH CUSTOM TITLES CHANGE A FILE NAME Entering a Custom Title Replaces the default file name (ex: 20171116-01.mp4) with your own text. Consider using what you use for – Push...

  • Page 8: Camera Care Tips

    During transport, to avoid jarring the camera head/push- for damage, replace as rod connection, tuck the camera head inside the reel. needed. (800) 328-8170 MyTana.com mytana@mytana.com youtube.com/videoMyTana EMAIL M–F 7a to 5p CST MYTANA LLC 746 SELBY AVE • ST. PAUL, MN 55104...
