MyTana CBX17 User Manual

Inspect your unit carefully

upon receipt. Let us know right
away of any damage you may note.
Included with your purchase are:
WiFi Router (dongle) enables
wireless connection to your
phone or tablet (with our
Viewer APP). Plugs in to USB
port. See separate instructions
for WiFi operations.
Removable USB (flash) drive
Patch Cord
050322
Manufacturers of Quality
Sewer and Drain Cleaning
Equipment since 1957

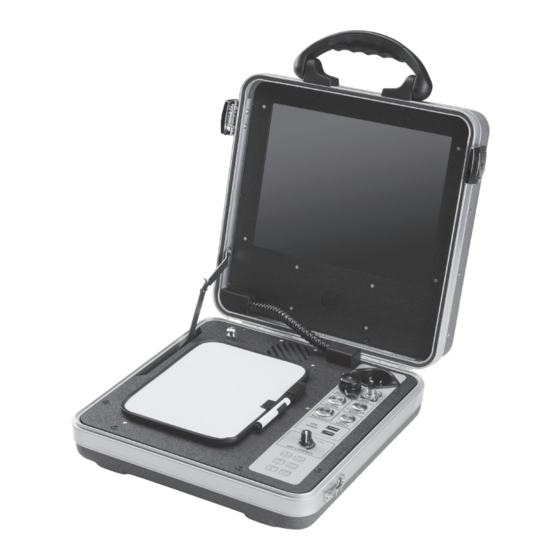

CBX17 Monitor / Control Box
User Guide
Please read these instructions and follow the steps in the
PGR200, PGR400 Reel Set Up Guide before you use your system.
Do a test recording before
you perform your first
job in the field.
The CBX17 connects to the push rod using a patch cord.
It is important to follow instructions carefully when
connecting or you could damage or break the pins.
These instructions also are on the Reel Set Up Guide.
A Make sure cord notch hole is properly aligned
with the notch on the Control Box port.
B DON'T force the connection.
Hand tighten ONLY at knurled base until snug.
This bottom segment with the knurled base is the
ONLY part that turns, forcing the other discs
to turn will damage the patch cord.
DON'T power up the system until patch cord is connected.
Leave the cord connected to the push rod reel.
