Summary of Contents for BERG SR59V

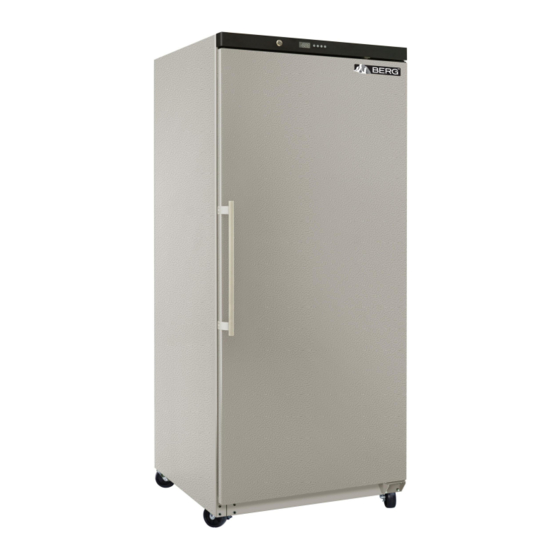

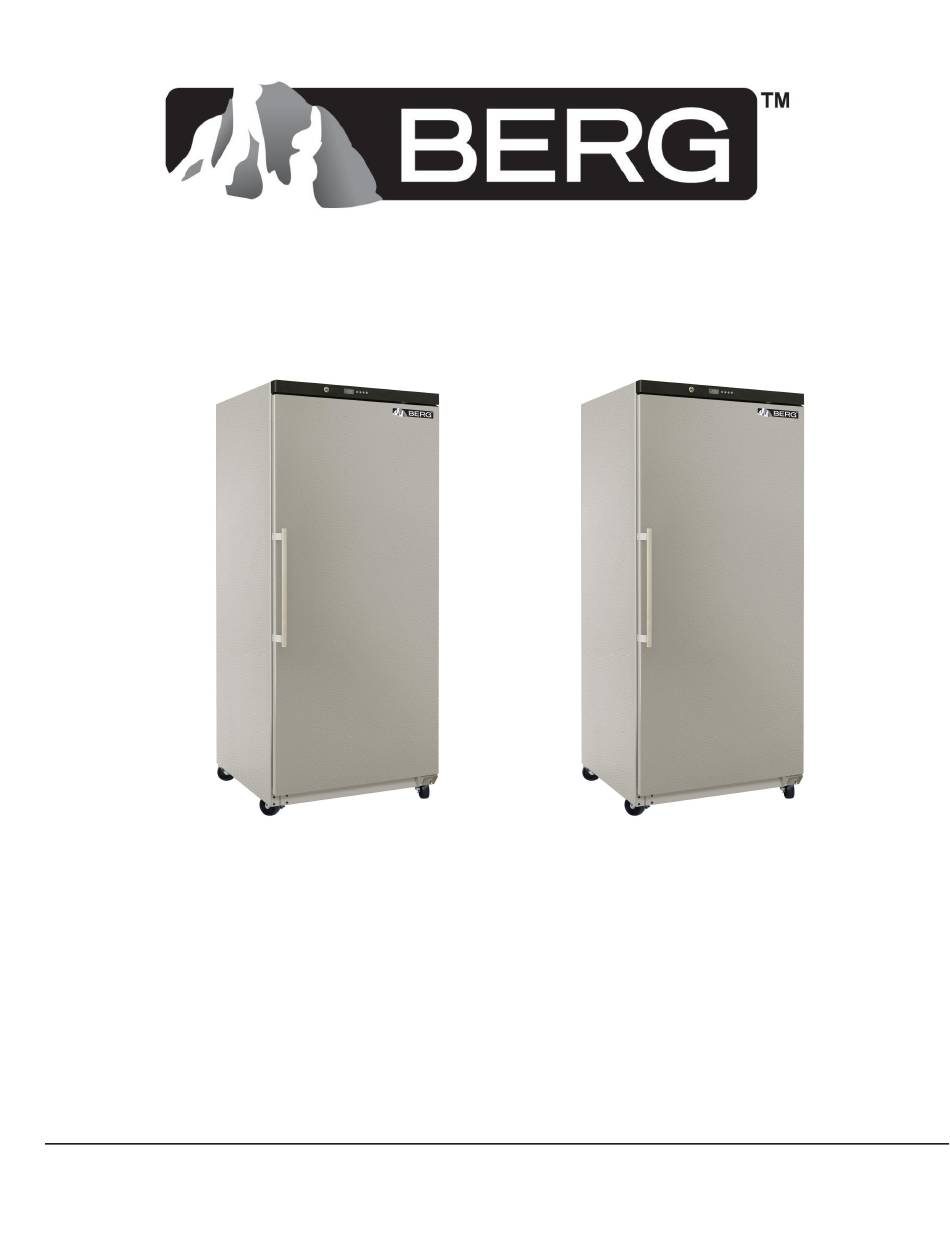

- Page 1 Upright Refrigerator & Freezer Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. See page 2. SR59V SF59V IMPORTANT INFORMATION BEFORE USE...
-
Page 2: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT..................2 SPECIFICATIONS............................ 3 INSTALLATION............................4 OPERATION.............................. 6 MAINTENANCE............................13 WIRING DIAGRAM…..........................15 WARRANTY…............................18 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 3: Specifications
ServiceandInstallation Manual SPECIFICATION STORAGE SHIP NEMA CAPACITY CHARGE WEIGHT MODEL# V/Hz/Ph AMPS BTU/H PLUG Cu-ft SR59V 115/60/1 19.3 5-15P SF59V 115/60/1 19.3 2167 3.88 5-15P... -
Page 4: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. - Page 5 ServiceandInstallation Manual Outside cabinet: Be sure that the unit has access to ample air. Avoid hot corners and locations near stoves and ovens. It is recommended that the unit be installed no closer than 2" from any wall with at least 12" of clear space above the unit Leveling A level cabinet looks better and will perform better because the doors will line up with the frames properly.
-
Page 6: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. REFRIGERATED CYCLE Refrigerators : During the refrigeration cycle, the evaporator fans will run continuously, will stop when the door is open to avoid the hot air be sucked into the box. - Page 7 Service and Installation Manual 2. Put the door with care horizontally. 3. Use slot type screwdriver to remove the upper hinge axis in position 2 and screw it into the opposite side position 3. 4. Use hexagon wrench to remove the hinge axis D from the door and the bottom hinge, insert it into the opposite hole of bottom hinge, position 4, and screw into position upper axle hole, position 5.
- Page 8 Service and Installation Manual 5. Revolve the door with care, and put it in the correct position, insert the upper hinge axis into the axle hole of the door and hold the door. 6. Fix the bottom hinge with four screws. THERMOSTAT OPERATION ...
- Page 9 Service and Installation Manual 2. Parameter list HK-01 HK-02 Menu Functions Setting range Unit Freezer Refrigerator Common user menu Temperature set value Upper limit～Lower limit -8℉ 36℉ ℃/℉ 00～99（password is Administrator menu Password 55,unmodified） Administrator’s menu 0.5℃～9.0℃ Hysteresis value 7℉ 7℉...
- Page 10 Service and Installation Manual 0:Electric heating defrost Defrost type 1:Hot gas defrost 0:Fan and compressor run or stop synchronically 1:Fan runs continuously, stops during defrost 2: Fan runs continuously, stops Fan running mode during defrost and defrost dripping 3: Fan runs continuously, stops during defrost, fan time delay after defrost 4:Controlled by defrost sensor, fan...
- Page 11 Service and Installation Manual 0:Door switch is canceled 1:Close fan during door open 2: Turn on the light when door open, turn off the light when door closed 3:Close fan and turn on the light Control output of door switch when door open, Turn off the light when door closed 4: When door is open, it is the...
- Page 12 Service and Installation Manual When it displays the code St，press the key ，display the code Po，then press Set key, display 00, at this time, press to input the password of administrator menu. Press Set key again to confirm the password input, and the controller will automatically verify the correctness of password.
-
Page 13: Maintenance
Service and Installation Manual MAINTENANCE The unit must be turned OFF and disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. Refrigerators and Freezers The interior and exterior can be cleaned using soap and warm water. If this isn't sufficient, try ammonia and water or a nonabrasive liquid cleaner. - Page 14 Service and Installation Manual Gaskets can easily be replaced and don’t require the use of tools or authorized service technicians. The gaskets are "Dart" style and can be pulled out of the groove in the door and be replaced by pressing the new one back into place.
-
Page 15: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: SR59V MODEL: SF59V... - Page 16 WIRING DIAGRAM MODEL: SR59V...
- Page 17 Service and Installation Manual WIRING DIAGRAM MODEL: SF59V...
-
Page 18: Warranty
7) When the Berg product is defective, but the defect does not involve malfunction or defects in materials or workmanship. 8) When the Berg product is used in a way that is not in accordance with provided instructions and intended purpose. - Page 19 13) When the Berg product has been repaired, modified or altered by the owner or a third party. 14) Damage to the Berg product as a result of misuse, abuse, neglect, accidents, fire, flooding, or acts of God. 15) Damage to the Berg product relating to improper utility connection or supply and problems due to improper ventilations.
