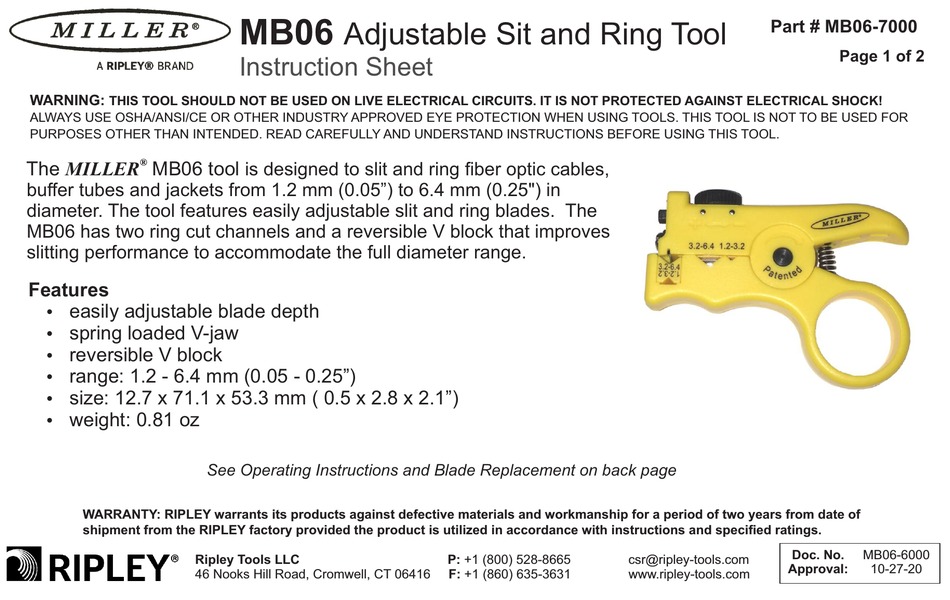

Ripley MILLER MB06 Instruction Sheet

WARNING:
THIS TOOL SHOULD NOT BE USED ON LIVE ELECTRICAL CIRCUITS. IT IS NOT PROTECTED AGAINST ELECTRICAL SHOCK!
ALWAYS USE OSHA/ANSI/CE OR OTHER INDUSTRY APPROVED EYE PROTECTION WHEN USING TOOLS. THIS TOOL IS NOT TO BE USED FOR
PURPOSES OTHER THAN INTENDED. READ CAREFULLY AND UNDERSTAND INSTRUCTIONS BEFORE USING THIS TOOL.
®
The MILLER MB06 tool is designed to slit and ring fiber optic cables,
buffer tubes and jackets from 1.2 mm (0.05") to 6.4 mm (0.25") in
diameter. The tool features easily adjustable slit and ring blades. The
MB06 has two ring cut channels and a reversible V block that improves
slitting performance to accommodate the full diameter range.
Features
easily adjustable blade depth
Ÿ
spring loaded V-jaw
Ÿ
reversible V block
Ÿ
range: 1.2 - 6.4 mm (0.05 - 0.25")
Ÿ
size: 12.7 x 71.1 x 53.3 mm ( 0.5 x 2.8 x 2.1")
Ÿ
weight: 0.81 oz
Ÿ
WARRANTY: RIPLEY warrants its products against defective materials and workmanship for a period of two years from date of
shipment from the RIPLEY factory provided the product is utilized in accordance with instructions and specified ratings.
Ripley Tools LLC
46 Nooks Hill Road, Cromwell, CT 06416
MB06
Adjustable Sit and Ring Tool
Instruction Sheet
See Operating Instructions and Blade Replacement on back page
P: +1 (800) 528-8665
F: +1 (860) 635-3631
Part # MB06-7000
Doc. No.
csr@ripley-tools.com
Approval:
www.ripley-tools.com
Page 1 of 2
MB06-6000
10-27-20
