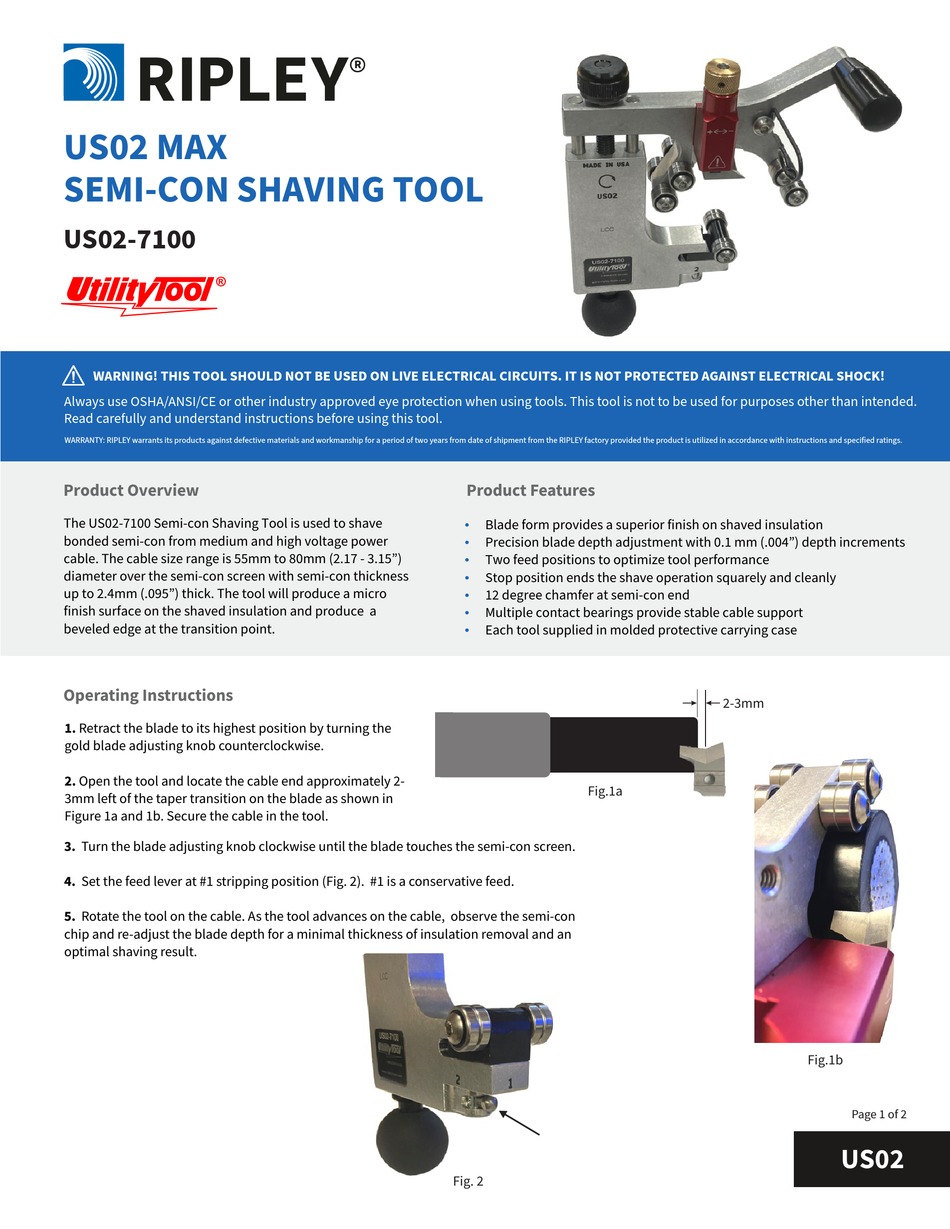

Ripley UtilityTool US02 MAX Quick Start Manual

US02 MAX
SEMI-CON SHAVING TOOL
US02-7100
WARNING! THIS TOOL SHOULD NOT BE USED ON LIVE ELECTRICAL CIRCUITS. IT IS NOT PROTECTED AGAINST ELECTRICAL SHOCK!
Always use OSHA/ANSI/CE or other industry approved eye protection when using tools. This tool is not to be used for purposes other than intended.
Read carefully and understand instructions before using this tool.
WARRANTY: RIPLEY warrants its products against defective materials and workmanship for a period of two years from date of shipment from the RIPLEY factory provided the product is utilized in accordance with instructions and specified ratings.
Product Overview
The US02-7100 Semi-con Shaving Tool is used to shave
bonded semi-con from medium and high voltage power
cable. The cable size range is 55mm to 80mm (2.17 - 3.15")
diameter over the semi-con screen with semi-con thickness
up to 2.4mm (.095") thick. The tool will produce a micro
finish surface on the shaved insulation and produce a
beveled edge at the transition point.
Operating Instructions
1. Retract the blade to its highest position by turning the
gold blade adjusting knob counterclockwise.
2. Open the tool and locate the cable end approximately 2-
3mm left of the taper transition on the blade as shown in
Figure 1a and 1b. Secure the cable in the tool.
3. Turn the blade adjusting knob clockwise until the blade touches the semi-con screen.
4. Set the feed lever at #1 stripping position (Fig. 2). #1 is a conservative feed.
5. Rotate the tool on the cable. As the tool advances on the cable, observe the semi-con
chip and re-adjust the blade depth for a minimal thickness of insulation removal and an
optimal shaving result.
Product Features
Blade form provides a superior finish on shaved insulation
Ÿ
Precision blade depth adjustment with 0.1 mm (.004") depth increments
Ÿ
Two feed positions to optimize tool performance
Ÿ
Stop position ends the shave operation squarely and cleanly
Ÿ
12 degree chamfer at semi-con end
Ÿ
Multiple contact bearings provide stable cable support
Ÿ
Each tool supplied in molded protective carrying case
Ÿ
Fig.1a
Fig. 2
2-3mm
Fig.1b
Page 1 of 2
US02
