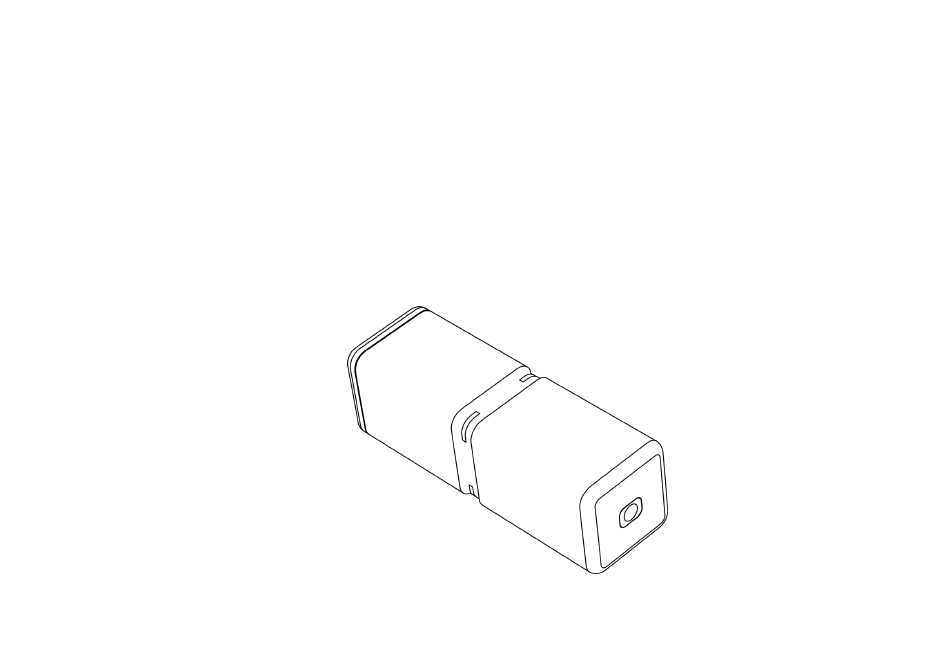

- Page 1 WWDZWx User Manual Date:9-Jun-2021 Custos Wireless Water Detector Technology for Humanity Ubitech Ltd. Version:0.3...
-
Page 2: Table Of Contents
5 INSTALL & CHANGE THE BATTERY...............................6 5.1 Battery Support..................................6 5.2 How to change battery................................6 6 ACTION SENSOR & INDICATORS BEHAVIOR............................7 6.1 3-Axial Action Sensor................................7 6.2 Visual Indicator..................................7 6.3 Sound Indicator..................................7 7 HOW 3-Axial ACTION SENSOR WORKS..............................8 Ubitech Ltd. Version:0.3... - Page 3 12.3 Remove Custos WWD from Z-Wave Network........................14 12.4 Factory Default Reset................................15 13 NOTIFICATION & BATTERY REPORT..............................16 13.1 Notification Report & Battery Report............................16 14 WATER LEAK DETECTION & ALARM..............................17 14.1 Water Leak Detection & Alarm...............................17 Ubitech Ltd. Version:0.3...
- Page 4 16.10 Configuration CC................................23 16.11 SmartStart Labeling................................31 17 APPENDIX......................................32 17.1 Z-Wave Terminology................................32 17.2 Event Status..................................32 17.3 System Event..................................32 17.4 3-Axial Sensor Processing..............................32 17.5 Network Event..................................33 17.6 Water Leak Alarm Status...............................33 17.7 Patents....................................33 Ubitech Ltd. Version:0.3...
-
Page 5: Introduction
SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity. Ubitech Ltd. Version:0.3... -
Page 6: Features & Specifications
Temperature Sensor Range from -40°C to +125°C / (-40°F to +257°F) Action Sensor 3-Axial Sensor LED Indicator 3 colors LED. (Green, Yellow & Red) Power Supply ER14250 - Battery 3.6V 1200mAH Battery Life Standby: ~4.uA over 10 Years Ubitech Ltd. Version:0.3... -
Page 7: Software Specifications
Support: After powering on, SmartStart will be activated automatically if it’s out of Z-Wave network Firmware Update Support: Firmware upgrade support via RF, “Over The Air (OTA)” Association Support 5 Groups. Lifeline, Built-in Water Leak Alarm, Remote Water Leak Alarm, Overheat & Underheat Factory Default Reset Support: Device Locally Reset Ubitech Ltd. Version:0.3... -
Page 8: What's Inside In The Box
WHAT’S INSIDE IN THE BOX Standard Custos Wireless Water Detector (WWD) package comes with below items Custos WWD Main Unit x 1 “Figure 3A” Remote Water Detection Probe x 1 (Optional) “Figure 3B” Figure 3A Figure 3B Ubitech Ltd. Version:0.3... -
Page 9: Understanding Custos Wwd
○ ○ k Battery Cover Battery Contact ○ 3-Axial Sensor ○ ○ ○ i Dust Cover n Gasket h SN & Product Info ○ ○ b LED Indicator c Buzzer ○ d Temperature Sensor ○ m Battery Ubitech Ltd. Version:0.3... -
Page 10: Install & Change The Battery
Make sure the Gasket is installed between the cover & body for waterproof (Figure 5B) Put the battery cover and align with two battery metal contacts then tighten the screws. Battery Metal Contacts Gasket Figure 5A Figure 5B Ubitech Ltd. Version:0.3... -
Page 11: Action Sensor & Indicators Behavior
Sensor is activated, you also can see below Visual and Sound Indicators response with the 3-Axial Action Sensor. Visual Indicator 3 Colors LED: GREEN, YELLOW & RED Effect: ON, quick blinking and slow blinking Sound Indicator Buzzer: Long & short beep sound. Ubitech Ltd. Version:0.3... -
Page 12: How 3-Axial Action Sensor Works
Perform Exclusion Gesture, (Refer to item 12.3) Perform Factory Default Reset Gesture, (Refer to item 12.4) iii. Custos WWD only supports below movement as wake up WWD from sleep mode, shake it vertically or horizontally as below, Shaking in Horizontal Shaking in Vertical Ubitech Ltd. Version:0.3... -
Page 13: How Water Leak Sensor Works
To make sure Sensor Probe works properly show as below pictures, please make sure insert the Remove Sensor Probe tightly “Figure 8B” and there is no any gap allowed “Figure 8C” between 3.5mm jack and housing. Figure 8C Figure 8B Ubitech Ltd. Version:0.3... -
Page 14: Working Mode Support
Water Leak Sensor & Alarm Water Leak Alarms refer to two Water Detection Probes “Built-in & Remote Figure 9A” Custos WWD also can send Battery Report and Temperature Report to Z-Wave Gateway. Water Detection Probe Socket for Remote Probe Figure 9A Ubitech Ltd. Version:0.3... -
Page 15: Physical Installation
Remove Dust Cover. (Please do not remove Dust Cover if Remote Sensor Probe not installed) “Figure 10A” Insert the 3.5mm jack of Socket for Remote Water Detection Probe tightly. “Figure 10B” iii. Place the Custos WWD on the floor horizontally Dust Cover Figure 10A Figure 10B Ubitech Ltd. Version:0.3... -
Page 16: User Interface Behaviors
Shipping Triggering Built-in Yellow x1 @ Sec Device is in Shipping Mode; all functions are disabled Mode Sensor Probe Normal Red x1 @ Sec 1 time @ second Device is in Normal Mode; all functions are enabled Ubitech Ltd. Version:0.3... -
Page 17: Setup Z-Wave Network
Set your Z-Wave Gateway into Inclusion Mode / Add Device processing; Trigger Built-in Water Leak Sensor for 2 Seconds; iii. 2 x Buzzer Sound and 2 GREEN LED ON UI to confirm enter into Inclusion Mode; YELLOW LED will be flashing when Inclusion is processing. Ubitech Ltd. Version:0.3... -
Page 18: Remove Custos Wwd From Z-Wave Network
While GREEN & RED LED are flashing alternative for Gesture Recognition then turn Custos WWD from Horizontal to Vertical position “90°”and stick close to table surface as Figure 12B; Wait for Gesture Recognition configuration UI with Buzzer Sounds & GREEN LED flashing 2 times “Event success UI” for completion. Figure 12A Figure 12B Ubitech Ltd. Version:0.3... -
Page 19: Factory Default Reset
Then WWD will perform soft reset after GREEN LED is flashing for 2 seconds; vii. After soft reset with RED LED & Buzzer Sound x1 to finished Factory Default Reset action then SmartStart also will be activated. Roll 360° Figure 12D Figure 12C Ubitech Ltd. Version:0.3... -
Page 20: Notification & Battery Report
By default, the Battery report will be sent out when every 10% change, “Refer to Parameter #0x20 Battery Level Change Auto Report of item 16.10 Configuration CC” and it wake up every time “Refer to Wake up interval setting of item 16.7”. Ubitech Ltd. Version:0.3... -
Page 21: Water Leak Detection & Alarm
Water Leak Alarm Cancellation action sets Basic SET to Associated Group and it can be configured with Configuration CC, Built-in Water Detection Probe sends Basic SET to Association Group 2; Remote Water Detection Probe sends Basic SET to Association Group 3. Ubitech Ltd. Version:0.3... -
Page 22: Temperature Report
The Heat Alarm “Overheat and Underheat” also will send to Gateway at wake-up every time, once the Overheat or Underheat is detected, regarding the Overheat and Underheat setting with Configuration CC “Please refer to item 16.10”, Custos WWD reports to gateway the temperature unit °F in US version and °C for other frequency versions. Ubitech Ltd. Version:0.3... -
Page 23: Wave Software Definitions
0x01 Number of firmware targets 0x00 16.3 Manufacturer Specific Parameter Value Manufacturer ID 1 0x02 Manufacturer ID 2 0x70 Product Type ID 1 0x02 Product Type ID 2 0x01 Product ID 1 0x01 Product ID 2 0x0B Ubitech Ltd. Version:0.3... -
Page 24: Notification Cc
Time Min Wake Up Interval (Seconds) 0x000014 20 Seconds Max Wake Up Interval (Seconds) 0x015180 86400 Seconds (24 Hours) Default Wake Up Interval (Seconds) 0x001C20 7200 Seconds (2 Hours) Wake Up Interval Step (Seconds) 0x000014 20 Seconds Ubitech Ltd. Version:0.3... -
Page 25: Association Group Info (Agi)
0x00 = IDEL / CANCEL (Based on Configuration Parameter 0x45 Setting) 0xFF = TRIGGERED (Based on Configuration Parameter 0x44 Setting) Underheat Alarm - Basic Set (Freeze) 0x00 = IDEL / CANCEL (Based on Configuration Parameter 0x47 Setting) 0xFF = TRIGGERED (Based on Configuration Parameter 0x46 Setting) Ubitech Ltd. Version:0.3... -
Page 26: Supported Command Classes In Nif
Support Support SECURITY_2 Support Support Support SUPERVISION Support Support Support FIRMWARE_UPDATE_MD Support Support Support SENSOR_MULTILEVEL - Temperature Support Support Support CONFIGURATION Support Support Support APPLICATION STATUS Support Support Support WAKE_UP Support Support Support BATTERY Support Support Support Ubitech Ltd. Version:0.3... -
Page 27: Configuration Cc
Configure Water Leak Cancellation Basic SET for Built-in (AG2) / Remote Sensor (AG3) Probes, related parameters 0x41 & 0x43 Value Function 0x00 (0) Send Basic SET when Water Alarm Cancelled “Either” Built-in “or” Remote Water Detection Probe 0x01 (1) Send Basic SET when Water Alarm Cancelled Built-in “And” Remote Water Detection Probe Ubitech Ltd. Version:0.3... - Page 28 Configure Temperature Unit report. The default unit is depended on Regional Frequency Setting. *(By default, US=°F and EU=°C) Value Function 0x00 (0) Disable Temperature Report 0x01 (1) Report Celsius °C unit 0x02 (2) Report Fahrenheit °F unit Ubitech Ltd. Version:0.3...
- Page 29 False Altering capabilities Advanced Description Configure Overheat Trigger Value. (Higher byte 0x00 represents Celsius °C unit, 0x01 represents Fahrenheit °F unit) Value Function 0x0000 ~ 0x00FF From 0°C to 255°C 0x0100 ~ 0x01FF From 0°F to 255°F Ubitech Ltd. Version:0.3...
- Page 30 Altering capabilities Advanced Description Configure Freeze Recover Report Value. (Higher byte 0x00 represents Celsius °C unit, 0x01 represents Fahrenheit °F unit) Value Function 0x0000 ~ 0x00FF From 0°C to 255°C 0x0100 ~ 0x01FF From 0°F to 255°F Ubitech Ltd. Version:0.3...
- Page 31 False False Altering capabilities Advanced Description Configure Association Group 3 Basic Set value when Remote Water Leak triggered Value Function 0x00 (0) Disable Basic Set (Send nothing) 0x01 (1) Basic ON (0xFF) 0x02 (2) Basic OFF (0x00) Ubitech Ltd. Version:0.3...
- Page 32 Default Value False False Altering capabilities Advanced Description Configure Association Group 4 Basic Set value when Overheat Recovered Value Function 0x00 (0) Disable Basic Set (Send nothing) 0x01 (1) Basic ON (0xFF) 0x02 (2) Basic OFF (0x00) Ubitech Ltd. Version:0.3...
- Page 33 Default Value False False Altering capabilities Advanced Description Configure Association Group 5 Basic Set value when Freeze Recovered Value Function 0x00 (0) Disable Basic Set (Send nothing) 0x01 (1) Basic ON (0xFF) 0x02 (2) Basic OFF (0x00) Ubitech Ltd. Version:0.3...
- Page 34 Configure Buzzer Sound works for first 3 Seconds only when Water Leak is detected if Saving Mode enabled *(Default 0x01=Enable) Value Function 0x00 Disable Saving mode (Buzzer sound works during whole Water Leak is detected) 0x01 Enable Saving mode (Buzzer function only works 3’s when Water Leak is detected) Ubitech Ltd. Version:0.3...
-
Page 35: Smartstart Labeling
-PIN code with QR Code on WWD housing “Refer to item 4.1” PIN Code: 12345 -QR Code with full DSK string printed on outside of Packing Box, the first 5 digits are PIN code for SmartStart use 12345-xxxxx-xxxxx-xxxxx -xxxxx-xxxxx-xxxxx Ubitech Ltd. Version:0.3... -
Page 36: Appendix
Waked up and 3-Axial sensor is ready. In Mesh Network Mode 17.4 3-Axial Sensor Processing Event Action Buzzer Sound Remark Position Recognizing Green flashing Position is under recognizing; timeout is 5 seconds Gesture Recognizing G & R flashing Gesture is under recognizing; timeout is 10 seconds Ubitech Ltd. Version:0.3... -
Page 37: Network Event
Buzzer keeps beep sound continually at 1 sound per second. Alarm Detection Probe Saving mode Red x1 @ sec First 3 times only Only 3 beep sounds in first 3 seconds at 1 sound per second. 17.7 Patents CN Patent: ZL 2019 2 1399174.4 Ubitech Ltd. Version:0.3... - Page 38 WWDZWx User Manual Date:9-Jun-2021 Contact us if you have any questions https://www.facebook.com/g http://www.ubitech.hk roups/283898176125297 Ubitech Ltd. Version:0.3...
