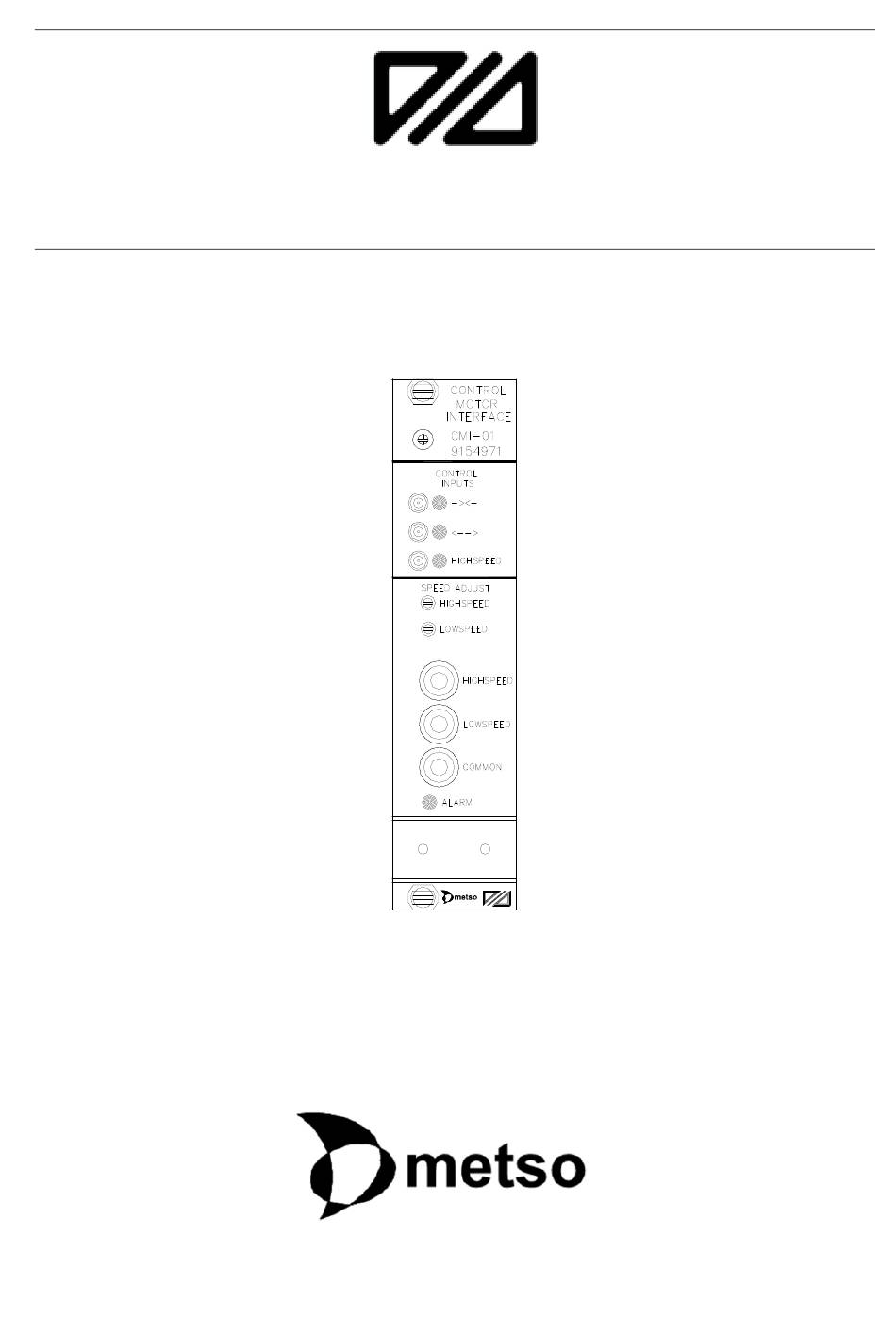

- Page 1 CMI-01 CMI-01 VAL0122827 / SKC9154971 CONTROL MOTOR INTERFACE MANUAL CMI-01_Eng.doc Oct. 1, 2004 / BL 1(4)
- Page 2 CMI-01 CONTENTS PLACEMENT OF COMPONENTS DESCRIPTION TECHNICAL DESCRIPTION SETTINGS ADJUSTMENTS PLACEMENT OF COMPONENTS CMI-01_Eng.doc Oct. 1, 2004 / BL 2(4)
- Page 3 The unit is mounted into the card slots of the rack unit (CMR-01). The CMI-01 Control Motor Interface is used in combination with the control motor driver, CMD- RM1. Together they will form an interface to control 5-phase or 2-phase stepping motors.
- Page 4 CMI-01 SETTINGS Adjustment screw, pitch of thread, mm GAP/360 degrees Gap change in mm 1.41 SW1/1 SW1/2 Default setting: /1 = on /2 = off /3= on /4= on Pulses to step motor driver card SW1/3 on = CMD-RM2 (2-phase stepping motor) version 1.1 or later...
