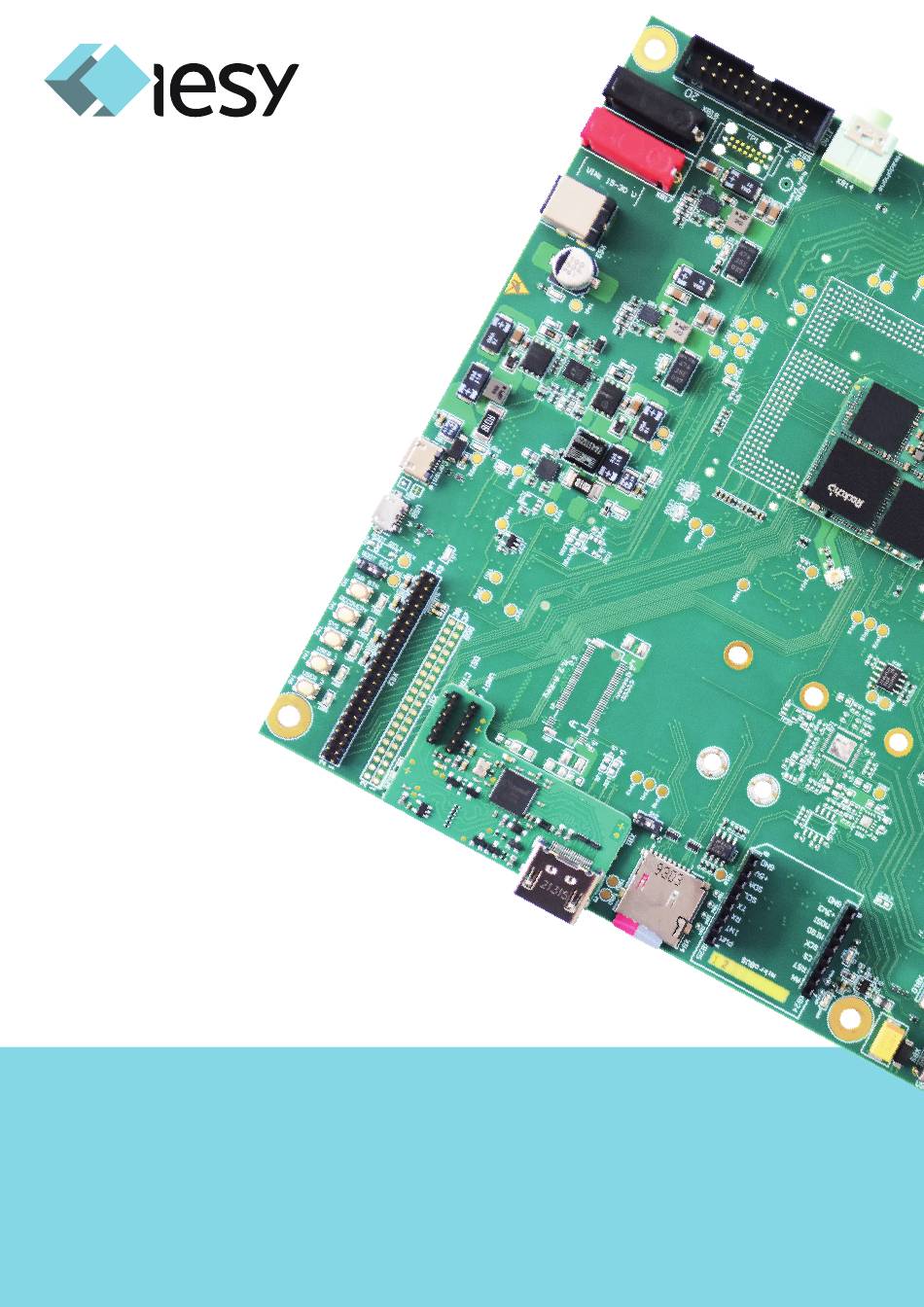

- Page 1 Quick Start Guide iesy RPX30 EVA-MI V1.01 Open Standard Module™ The Standard for Solder-on Computer Modules Document REV1.00...
- Page 2 INDEX Components Eval-Kit External Power Supply Getting Started The Eval-Kit iesy RPX30 EVA-Mi Basic Configuration Technical Data Block Diagram Baseboard General Information Revision History Quick Start Guide - iesy RPX30 EVA-MI 2022...
- Page 3 ▶ Micro USB cable for console port and USB OTG The design of the base board of the iesy RPX30 EVA-MI already contains functions for future OSM modules. For the iesy RPX30 OSM-SF these functions are not needed and therefore not equipped.
-
Page 4: External Power Supply
3. GETTING STARTED Step 1 - Boot-Medium The iesy RPX30 EVA-MI supports boot from microSD and e-MMC on the module. Per default the system boots from microSD containing the pre-installed iesy demo image. Ensure that the DIP- Switch (SH1) is in position ON to select microSD. - Page 5 Click board ™ Click board ™ MIKROE-1200 MIKROE-4422 (I2C EEPROM) (SPI EEPROM) DIP-Switch BOOT_SEL0 (SH1) Please note right alignment of the Config- Button (TA1) Click Module by installation. Reset- Button (TA2) *Interface without function 2022 Quick Start Guide - iesy RPX30 EVA-MI...
-
Page 6: Basic Configuration
Boot-Configuration For the iesy RPX30 EVA-MI the boot configuration and selection is done with a single DIP Switch SH1 (BOOT_SEL0). microSD (ON) and e-MMC (OFF) can be selected. Documentation on how to setup the boot device can be found within the Wiki pages of the meta- iesy-osm Repository. - Page 7 BOOT-Config UART UART B GPIO User-Button UART / ADC / GPIO GPIO / PWM / GPIO User-LED Power 5 V, 3.3 V I2C A EEPROM Temp.-Sensor Level-Shifter mikroBUS SPI B (Click module) 2022 Quick Start Guide - iesy RPX30 EVA-MI...
-
Page 8: General Information
On the SGET website you can find and download the currently valid OSM specification. Soon you will find more information and documents there, such as the Carrier Design Guide. https://sget.org 9. REVISION HISTORY Date Revision Description 30.08.2022 REV1.00 Document created Quick Start Guide - iesy RPX30 EVA-MI 2022... - Page 9 YOUR EXPERT FOR INDIVIDUAL EMBEDDED SYSTEMS iesy GmbH T : +49 2354 70655 0 E : sales@iesy.com Darmcher Grund 22 58540 Meinerzhagen Germany www.iesy.com...
