- Page 1 AIR CONDITIONER Wall mounted type DESIGN & TECHNICAL MANUAL INDOOR ASHG07KPCE ASHG09KPCE ASHG12KPCE OUTDOOR AOHG07KPCA AOHG09KPCA AOHG12KPCA DR_AS152EG_01 2021.12.16...
- Page 2 Notices: • Product specifications and design are subject to change without notice for future improvement. • For further details, please check with our authorized dealer. Trademarks ™ FGLair is trademark of Fujitsu General Limited in the United States, other countries or both. ™...
-
Page 3: Table Of Contents
CONTENTS Part 1. INDOOR UNIT................1 1. Specifications....................2 2. Dimensions....................4 2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE.........4 3. Wiring diagrams ....................6 3-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE.........6 4. Capacity table....................7 4-1. Cooling capacity.......................7 4-2. Heating capacity ......................8 5. Fan performance ...................9 5-1. Air velocity distributions....................9 5-2. - Page 4 CONTENTS (continued) Part 2. OUTDOOR UNIT..............27 1. Specifications....................28 2. Dimensions....................29 2-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA........29 3. Installation space ..................30 3-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA........30 4. Refrigerant circuit ..................33 4-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA........33 5. Wiring diagrams ..................34 5-1.
-
Page 5: Part 1. Indoor Unit

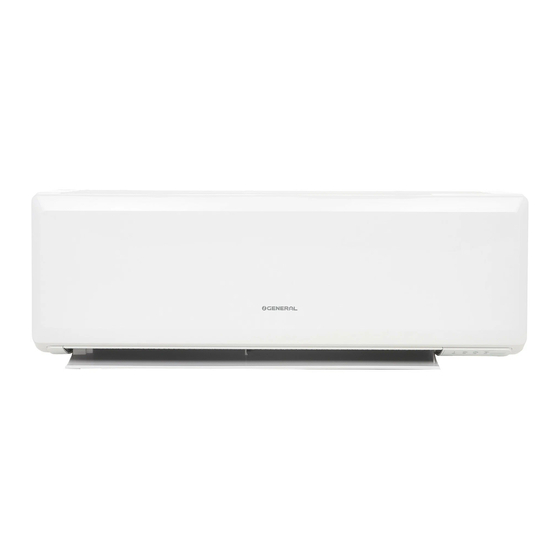

Part 1. INDOOR UNIT WALL MOUNTED TYPE: ASHG07KPCE ASHG09KPCE ASHG12KPCE... -
Page 6: Specifications
1. Specifications Wall mounted Type Inverter heat pump Model name ASHG07KPCE ASHG09KPCE ASHG12KPCE Power supply 230 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 198—264 V 2.00 2.50 3.40 Rated Btu/h 6,800 8,500 11,600 Cooling 0.9—2.8 0.9—3.0... - Page 7 Specifications for Lot10 Model name ASHG07KPCE ASHG09KPCE ASHG12KPCE Cooling Energy efficiency class Heating (Average) Cooling 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C) P design Heating (Average) 2.2 (-10 °C) 2.4 (-10 °C) 2.5 (-10 °C) SEER Cooling kWh/kWh...
-
Page 8: Dimensions
2. Dimensions 2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE Unit: mm Outline of indoor unit for pipe inlet Ø65 - 4 - 2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE 2. Dimensions... - Page 9 30 or more 40 or more Wall hook bracket Outline of the indoor unit 107 or more 163 or more 1,500 or more The flare connection part should be installed outdoors. - 5 - 2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE 2. Dimensions...
-
Page 10: Wiring Diagrams
3. Wiring diagrams 3-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE - 6 - 3-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE 3. Wiring diagrams... -
Page 11: Capacity Table
Airflow Rate (AFR): For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP) For heating capacity: Total Capacity (TC) and Input Power (IP) 4-1. Cooling capacity ¢ Model: ASHG07KPCE Indoor temperature °CDB °CWB °CDB... -
Page 12: Heating Capacity
4-2. Heating capacity NOTE: Values mentioned in the table are calculated based on the maximum capacity. ¢ Model: ASHG07KPCE Indoor temperature °CDB °CWB 1.84 0.88 1.83 0.90 1.79 0.92 1.75 0.94 1.70 0.96 2.14 0.93 2.09 0.95 2.04 0.97 1.98 0.99... -
Page 13: Fan Performance
5. Fan performance 5-1. Air velocity distributions ¢ Models: ASHG07KPCE and ASHG09KPCE Fan speed Operation mode Measuring conditions HIGH Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Center Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Left &... - Page 14 ¢ Model: ASHG12KPCE Fan speed Operation mode Measuring conditions HIGH Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Center Unit: m/s Top view Vertical airflow direction louver: Up Horizontal airflow direction louver: Left & Right Unit: m/s Side view Vertical airflow direction louver: Up...
-
Page 15: Airflow
5-2. Airflow ¢ Models: ASHG07KPCE and ASHG09KPCE Cooling Fan speed Airflow HIGH QUIET Heating Fan speed Airflow HIGH QUIET - 11 - 5-2. Airflow 5. Fan performance... - Page 16 ¢ Model: ASHG12KPCE Cooling Fan speed Airflow HIGH QUIET Heating Fan speed Airflow HIGH QUIET - 12 - 5-2. Airflow 5. Fan performance...
-
Page 17: Operation Noise (Sound Pressure)
6. Operation noise (sound pressure) 6-1. Noise level curve ¢ Models: ASHG07KPCE and ASHG09KPCE Cooling Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 HIGH NC-50 NC-50 HIGH NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 QUIET NC-20... -
Page 18: Sound Level Check Point
6-2. Sound level check point Microphone Microphone NOTE: Detailed shape of the actual indoor unit might be slightly different from the one illustrated above. - 14 - 6-2. Sound level check point 6. Operation noise (sound pressure) -
Page 19: Safety Devices
7. Safety devices Model Type of Protection form protection ASHG07KPCE ASHG09KPCE ASHG12KPCE Circuit Current fuse (PCB*) 250 V, 3.15 A protection More than 170 °C Activate Fan motor stop Fan motor Thermistor protection protection 145 °C or less Reset Fan motor restart... -
Page 20: Remote Controller
8. Remote controller 8-1. Wireless remote controller ¢ Overview a MODE button • Switches operation mode (AUTO, COOL, DRY, FAN, and HEAT). • Starts/ends the remote controller custom code (max. 4 types) change. b FAN SPEED button c POWERFUL button d ECONOMY button e CANCEL button f SLEEP TIMER button... - Page 21 ¢ Specifications Controller Unit: mm Top view Front view Side view Size (H × W × D) 162 × 45 × 17 Weight 65.5 (without batteries) Holder Unit: mm Top view Ø 3.9 (Hole) Hole 26.6 49.3 Front view Side view Size (H ×...
-
Page 22: Function Settings
9. Function settings To adjust the functions of this product according to the installation environment, various types of function settings are available. NOTE: Incorrect settings can cause a product malfunction. 9-1. Function settings by using remote controller Some function settings can be changed on the remote controller. After confirming the setting proce- dure and the content of each function setting, select appropriate functions for your installation envi- ronment. - Page 23 STEP 2: Selecting the function number and setting value 1. Press the TEMP./SELECT ( ) buttons to select the function Function number number. To switch between the left and right digits, press the MODE button. 2. Press the FAN SPEED button to proceed the setting value. To re- turn the function number selection, press the FAN SPEED button again.
- Page 24 ¢ Contents of function setting Each function setting listed in this section is adjustable in accordance with the installation environ- ment. NOTE: Setting will not be changed if invalid numbers or setting values are selected. Function setting list Function no. Functions Filter sign 30/31...
- Page 25 2) Room temperature control for indoor unit sensor Depending on the installed environment, correction of the room temperature sensor may be re- quired. Select the appropriate control setting according to the installed environment. The temperature of the room temperature sensor is corrected as follows: Corrected temp.
- Page 26 5) Indoor unit fan control for energy saving for cooling Enables or disables the power-saving function by controlling the indoor unit fan rotation when the outdoor unit is stopped during cooling operation. Function number Setting value Setting description Factory setting Disable Enable ♦...
-
Page 27: Custom Code Setting For Wireless Remote Controller
9-2. Custom code setting for wireless remote controller ¢ Custom code setting for wireless remote controller To interconnect the air conditioner and the wireless remote controller, assignment of the custom code for the wireless remote controller is required. NOTE: Air conditioner cannot receive a signal if the air conditioner has not been set for the custom code. -
Page 28: Accessories
10. Accessories 10-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE Part name Exterior Q’ty Part name Exterior Q’ty Operating manual Tapping screw (large) Operating manual Tapping screw (small) (CD-ROM) Installation manual Remote controller Remote controller Wall hook bracket holder Battery Cloth tape - 24 - 10-1. -
Page 29: Optional Parts
11. Optional parts 11-1. Others Exterior Part name Model name Summary Air cleaning filter can be mounted to Air cleaning filter UTR-FA16-5 the indoor unit. Remotely manage an air conditioning system using mobile devices such as Wireless LAN smartphones and tablets. UTY-TFSXF2 adapter Appropriate application for each region... - Page 30 - 26 - 11-1. Others 11. Optional parts...
-
Page 31: Part 2. Outdoor Unit
Part 2. OUTDOOR UNIT SINGLE TYPE: AOHG07KPCA AOHG09KPCA AOHG12KPCA... -
Page 32: Specifications
1. Specifications Type Inverter heat pump Model name AOHG07KPCA AOHG09KPCA AOHG12KPCA Power supply 230 V ~ 50 Hz Power supply intake Outdoor unit Available voltage range 198—264 V Starting current Cooling 1,650 1,700 Airflow rate Heating 1,450 1,470 Type × Q'ty Propeller fan ×... -
Page 33: Dimensions
2. Dimensions 2-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA Unit: mm 4-M10 hole Pitch of bolts for installation Top view Side view Front view Side view Airflow Drain port Ø42 Bottom view Side view (Valve part) - 29 - 2-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA 2. -
Page 34: Installation Space
3. Installation space 3-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA ¢ Space requirement Provide sufficient installation space for product safety. CAUTION Keep the space shown in the installation examples. If the installation is not performed accordingly, it could cause a short circuit and result in a lack of operating performance. - Page 35 Multiple outdoor unit installation • Provide at least 250 mm of space between the outdoor units if multiple units are installed. • When routing the piping from the side of an outdoor unit, provide space for piping. • No more than 3 units must be installed side by side. When 4 units or more are arranged in a line, provide the space as shown in the following ex- ample “When an obstruction in the upper space:”.
- Page 36 Outdoor units installation in multi-row Unit: mm Single parallel unit arrangement Multiple parallel unit arrangement 100 or more 200 or more 1,000 or more 2,000 or more 200 or more 400 or more 500 or more 1,000 or more 200 or more 250 or more 1,000 or more...
-
Page 37: Refrigerant Circuit
4. Refrigerant circuit 4-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA Heat exchanger 3-way (INDOOR) valve 2-way Muffler valve 4-way valve Strainer Expansion valve Heat exchanger Strainer (OUTDOOR) Cooling Heating : Thermistor (Discharge temperature) : Thermistor (Outdoor temperature) : Thermistor (Heat exchanger out temperature) : Thermistor (Room temperature) : Thermistor (Pipe temperature) - 33 -... -
Page 38: Wiring Diagrams
5. Wiring diagrams 5-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA - 34 - 5-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA 5. Wiring diagrams... -
Page 39: Capacity Compensation Rate For Pipe Length And Height Difference
6. Capacity compensation rate for pipe length and height difference Height difference H Indoor unit is higher than outdoor unit Indoor unit is lower than outdoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Connection pipe Connection pipe 6-1. Models: AOHG07KPCA and AOHG09KPCA NOTE: Values mentioned in the table are calculated based on the maximum capacity. -
Page 40: Model: Aohg12Kpca
6-2. Model: AOHG12KPCA NOTE: Values mentioned in the table are calculated based on the maximum capacity. Pipe length (m) COOLING — — — 0.858 0.868 — — 0.929 0.872 0.882 Indoor unit is higher than outdoor unit *1 — 0.960 0.933 0.876 0.885... -
Page 41: Additional Charge Calculation
7. Additional charge calculation 7-1. Models: AOHG07KPCA and AOHG09KPCA Refrigerant type Refrigerant amount ¢ Refrigerant charge Total pipe length 15 or less 20 (Max.) 20 g/m Additional charge 7-2. Model: AOHG12KPCA Refrigerant type Refrigerant amount ¢ Refrigerant charge Total pipe length 15 or less 20 (Max.) 20 g/m... -
Page 42: Airflow
8. Airflow 8-1. Models: AOHG07KPCA and AOHG09KPCA Cooling 1,650 Heating 1,450 8-2. Model: AOHG12KPCA Cooling 1,700 1,001 Heating 1,470 - 38 - 8-1. Models: AOHG07KPCA and AOHG09KPCA 8. Airflow... -
Page 43: Operation Noise (Sound Pressure)
9. Operation noise (sound pressure) 9-1. Noise level curve ¢ Model: AOHG07KPCA Cooling Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000... -
Page 44: Sound Level Check Point
¢ Model: AOHG12KPCA Cooling Heating NC-65 NC-65 NC-60 NC-60 NC-55 NC-55 NC-50 NC-50 NC-45 NC-45 NC-40 NC-40 NC-35 NC-35 NC-30 NC-30 NC-25 NC-25 NC-20 NC-20 NC-15 NC-15 1,000 2,000 4,000 8,000 1,000 2,000 4,000 8,000 Octave band center frequency, Hz Octave band center frequency, Hz 9-2. -
Page 45: Electrical Characteristics
10. Electrical characteristics Model name AOHG07KPCA AOHG09KPCA AOHG12KPCA Voltage 230 ~ Power supply Frequency Max operating current *1 Starting current Circuit breaker current Power cable Cross- Wiring sectional spec. *2 area Connection cable *3 Limited wiring length *1: Maximum operating current is the total current of the indoor unit and the outdoor unit. *2: Selected sample based on Japan Electrotechnical Standards and Codes Committee E0005. -
Page 46: Safety Devices
11. Safety devices Model Type of Protection form protection AOHG07KPCA AOHG09KPCA AOHG12KPCA 250 V, 20 A Circuit protection Current fuse (Main PCB) 250 V, 5 A 85—122 °C Activate Fan motor stop Fan motor Thermistor protection protection 77—114 °C Reset Fan motor restart 110 °C Activate... -
Page 47: Accessories
12. Accessories 12-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA Part name Exterior Q’ty Part name Exterior Q’ty Drain pipe - 43 - 12-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA 12. Accessories...
