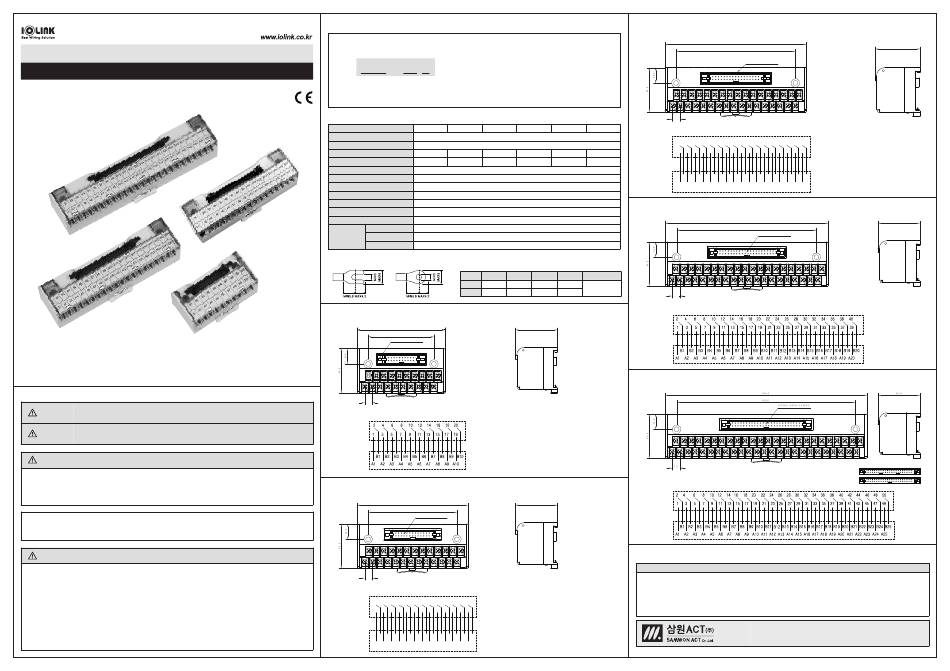

XTB Series
7mm Pitch，Interface terminal
User's Guide
Thank you for purchasing product of SAMWON ACT.
Please check model of product that you purchase first, and read this manual prior to use it.
Caution for Safety
●
Case that results in serious damage in human body or equipment, and fire if user handles
Caution
this equipment wrongly
Case that results in slight damage in human body or equipment, and fire if user handles
Warning
this equipment wrongly
Caution
1. When wiring, do not let any foreign material such as dust or cable sheath go into terminal.
It may cause damage, overheat or fire.
2. When wiring or handing, turn off the power.
※ We are providing the connection cable for PLC per each maker.
For detail on model and specification, refer to our catalog or contact us.
Warning
1. Use in permissible temperature range. (-10℃~+50℃)
It may cause damage to extermal case.
2. Use in permissible rated voltage (125V) or rated current range. (1A)
It may cause malfunction by misconnection.
3. Use AWG16(1.25㎟ Max.) wire and applicable crimp terminals the terminal block.
4. Read the user manual carefully and check the specification, wiring, dimension, etc.
5. If you make the connection cable between the controller such as PLC and our product, carefully
check the internal wiring of terminal block and pin array of controller.
It may cause damage to controller or our product.
Model Configuration
●
❶
XTB Series 7mm Pitch Interface terminal
❷
No. of Poles
20 : 20P
26 : 26P
XTB - 40 H
34 : 34P
40 : 40P
50 : 50P
❶ ❷ ❸ ❸
Connector type
H : MIL-C-83503 Connector
(50P polarity guide : 2EA)
B : 50P polarity guide : 1EA(Only 50P)
Product/Specification
●
Model XTB-20H XTB-26H XTB-34H
Rated voltage 125V AC / 24V DC
Rated current 1A
Number of connectors 20Pin 26Pin 34Pin
Number of terminals 20ea 26ea 34ea
Terminal pitch 7.0㎜
Applicable wires AWG22-16 (1.5㎟ / MAX)
Insulation resistance 100MΩ (DC 500V)
Dielectric strength AC500V 1min
Screw M3 X 8L
Screw torque 1.2N·m (12kgf·cm)
Ambient temperature -10℃ ~ +50℃ (No freezing)
Case Modifide PPO
Material Protective cover Polycarbonate
PCB Epoxy 1.6t
Applicable Crimp Terminal
●
A
Forked Min. 4.1
Round Min. 4.1
● XTB-20H
• Dimension
80.0
60.0
HIF3BA-20PA-2.54DSA
7.0
• Wiring Diagram
Connector Side
Terminal Side
XTB-26H
●
• Dimension
101.0
81.0
HIF3BA-26PA-2.54DSA
7.0
• Wiring Diagram
2 4 6 8 10 12 14 16 18 20 22 24 26
Connector Side
1 3 5 7 9 11 13 15 17 19 21 23 25
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13
Terminal Side
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13
XTB-34H
●
• Dimension
7.0
XTB-40H XTB-50H XTB-50B • Wiring Diagram
2 4
Connector Side
1 3
40Pin 50Pin 50Pin
40ea 50ea 50ea
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17
Terminal Side
A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17
XTB-40H
●
• Dimension
(Unit : ㎜)
B C D Applicable wire
Max. 16.0 Min. 3.0 Max. 5.9
AWG 22-16
(0.30~1.25㎟)
Max. 16.0 Min. 3.0 Max. 5.9
7.0
• Wiring Diagram
Connector Side
40.8
Terminal Side
XTB-50H/XTB-50B
●
• Dimension
• Wiring Diagram
Connector Side
40.8
Terminal Side
※ The above specifications are subject to change without notice.
※ Please contact HQ or branch office where you purchased product for A/S of this product or technique.
■ Relay terminal 1, 2, 4, 6, 8, 16, 32point
■ Interface terminal 20, 24, 26, 34, 40, 50, 40 x 2pole
■ PLC I/O Connecting cables MITSUBISHI, LSIS, CIMON, OMRON, FUJI, YOKOGAWA, HITACHI, SIEMENS, AB, etc.
■ Servo Connecting cables Encoder cable, Power cable, Motion cable / MITSUBISHI, YASKAWA, OMRON, PANSONIC,
■ Wiring harness / Special cable assembly
129.0
109.0
HIF3BA-34PA-2.54DSA
6 8 10 12 14 16 18 20 22 24 26 28 30 32 34
5 7 9 11 13 15 17 19 21 23 25 27 29 31 33
149.0
128.0
HIF3BA-40PA-2.54DSA
•XTB-50H
•XTB-50B
