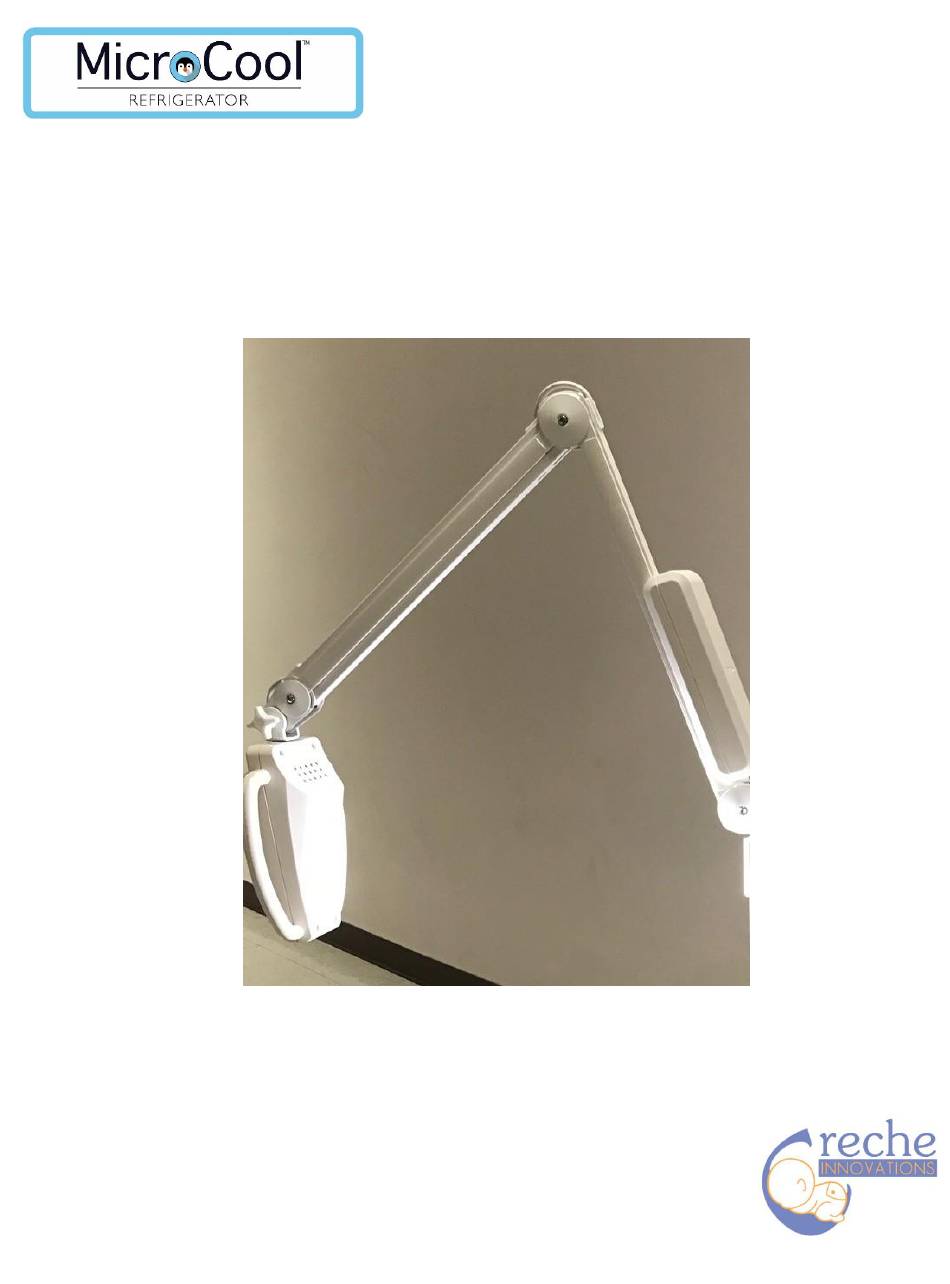

- Page 1 The MicroCool™ LED Examination Light User Manual Instructions for Use & Maintenance...
-
Page 2: Table Of Contents
Table of Contents Please read this manual carefully before starting the machine. Keep it in a safe place for future reference. If the device is resold, this manual must be handed over to the purchaser along with the device. Table of Contents 1. -
Page 3: Technical Description & Specifications
Technical Description & Specifications Technical Description & Specifications The MicroCool™ LED Examination Light is durable, attractive light designed to deliver high quality illumination in modern hospital or clinics for examination applications. Its design offers excellent dual brightness, color rendition, large field size and convenient positioning with easy-grip handles. -
Page 4: Technical Information
Technical Information Classification Type of protection against electric shock……………………………………………….…………...……...Class 1 Allowable leakage current…………………………………………………………..……..does not exceed 200µa Reliability of earth protection………………………………………….………………does not exceed 0.1 ohm Mode of operation………………………………………………………………………………....continuous Protection against explosion hazards.…..not to be used in presence of flammable anesthetics Protection against hazardous parts and ingress of liquids………………………………………………..IP20 Safety tests…………………….…UL 60601-1, 3 Edition;... -
Page 5: Set-Up And Operation
1.1.4 If Shortage or Damage Occurs You, the receiver, NOT CRECHE INNOVATIONS, are responsible for filing any claim(s) with the freight carrier within five (5) days after receipt of the shipment. If damage or shortage occurs in transit, the freight carrier is required by law to make notation of a shortage or damage. -
Page 6: Wall Mount Assembly
Wall Mount Assembly Wall Mount Assembly 1.2.1. Creche Innovations recommends a wall mounting height of 55-60 inches (140-152.4 cm) from floor plane. 1.2.2. Attach the provided Wall Mount to a suitable vertical surface, it should go into wood support that may need to be constructed. It should not be anchored to the drywall alone. -
Page 7: Maintenance
Note: The LED module will outlast the life expectancy of the device (10 years) under normal conditions and it’s therefore not needed to replace before this time period. LED module replacement must be replaced by a Creche Innovations appointed technician. -
Page 8: Preventative Maintenance And Cleaning
Maintenance 2.3 Preventative Maintenance Checklists Check Corrective Action Weekly Check overall operation of the fixture: Do the switch and LED’s operate If the answer to any of these questions is NO, do not use the properly? product. Consult with your Does the light head stay in position (no maintenance personnel before drift) when the arm is moved up and... -
Page 9: Replacement Parts, Symbols And Warnings
Replacement parts, Symbols and Warnings 2.5 Replacement Parts Part Number: CI-RP00001 = Handle Part Number: CI- RP00002 = Switch Part Number: CI – RP00003 = Fuse T 0.5. Amp L Part Number: CI – RP00004 = LED Module Symbols and Warnings 3.1 Symbols This symbol on the power switch is “OFF.”... -
Page 10: Troubleshooting Guide
Troubleshooting Troubleshooting Guide Symptoms Probable Cause Remedy Not plugged in. Plug into a suitable hospital-grade grounded Switch not “on” (I or II). socket. LED failed. Turn switch on (I), left or right. Fuses failed: Because of internal short. Replace with new LED Because of high mains module. -
Page 11: Warranty And Return Policy
Warranty and Return Policy Creche Innovations warrants the MicroCool™ LED Examination Light to be free from Defect in materials and workmanship for a period of two years from the date of shipment to the user. If the product fails to perform in accordance with the product specifications, Creche will repair or replace, at its option, the defective materials or parts. - Page 12 17745 Metcalf Building One Stilwell, KS 66085 913-948-6290 www.crecheinnovations.com...
