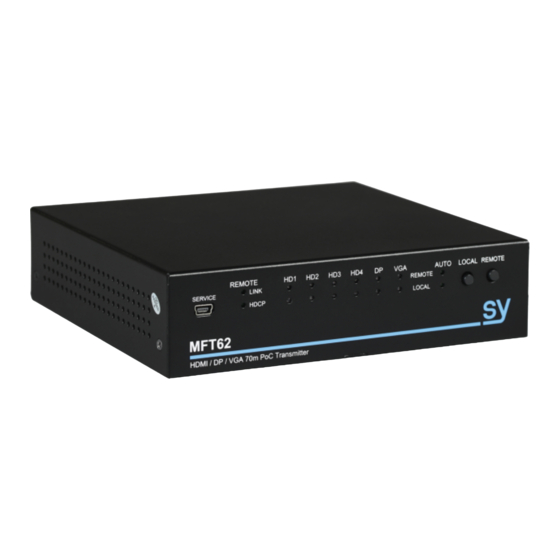

- Page 1 6 Input / 2 Output Multi-Format Switcher 4 HDMI, DisplayPort and VGA inputs with independent HDMI and HDBaseT outputs 4K UHD SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH Tel: +44 (0)161 868 3450 – Web: www.sy.uk...
-
Page 2: Specification
FRONT PANEL REAR PANEL USING THE MFT62 Front Panel Controls Local Button Remote Button AUTO Detection Mode Input LED Modes De-embedded Audio output Using an External Switches CASCADE MODE EDID SETTING CONNECTING THE MFT62 RS232-CTL COMMANDS System Commands Output Setup Commands... - Page 3 Thank you for purchasing the MFT62 Multi-format Transmitter. This product is designed with professional AV installers in mind. The many extensive features assist with system integration, validation and maintenance. Please carefully read this manual prior to installation and keep for future reference. You can download further supporting documentations from our web site (sy.co.uk)
-
Page 4: Front Panel
The MTF62 is a 4K 6-input Multi-Format Switcher with 2 independent outputs, Local HDMI and HDBaseT Transmitter. The HDBaseT output can broadcast up to 70m @ 1080p or 40m @ 4K 30Hz using cat6a cable. It provides the following features: ... -
Page 5: Rear Panel
IR output to control local devices from the remote location RS232 Pass-through RS232 between HDBaseT output and the receiver RS232-CTL RS232 for controlling the MFT62 48V DC power input Using the MFT62 Connect the video inputs as required. Connect the video outputs as required. - Page 6 EDID setting for each input. Local Button The LOCAL button selects the signal source to send to the HDMI output of the MFT62. When the Local AUTO mode is off, repeated presses of the LOCAL button will switch sequentially through all the inputs, even if there is no signal present.
-
Page 7: Cascade Mode
Using an External Switches The MFT62 has an interface for Input selection, using simple external Push Button switches, as shown in the following schematic: For each connector, pin 1 is left-most when viewed from the rear of the MFT62. An LED can be used in parallel with each switch, mirroring the input selection status as per front panel (FP). - Page 8 Press and hold the Local button to accept the new setting. The MFT62 drops out of the manual EDID setting mode when a new setting is accepted or if there is no activity for about 10 seconds, at which time the MFT62 will revert to the previously stored settings.
- Page 9 ● ○ ○ ○ ○ The USER1 EDID, USER2 EDID and USER3 EDID memory locations on each input can only be programmed by using RS232 commands, and must contain valid EDID data before being used. Connecting the MFT62 V1.3 sy.uk...
- Page 10 RS232-CTL Commands All commands are sent at 57600 baud, 8 data bits, no parity and one stop bit. Commands are not case sensitive, but must always be followed by a carriage-return (0x0d). All responses are in uppercase and provide an acknowledgement of the command or reply with the requested data, and are terminated with a carriage-return &...
- Page 11 For those commands, it would be easier to use a file containing the relevant MFT62 command and the display device power command and send that file to the MFT62 from a terminal emulation program. This method would be the best way to send binary power command data that cannot be represented purely by ASCII characters.
- Page 12 Input EDID Setup Commands RS232 Command Command Details Set Input x EDID to the built-in EDID y Input x is: 1-4 = HDMI inputs 1 to 4 5 = DisplayPort input EDID y is one of the following (0-26): 0: 1080P_2CH(PCM) 1: 1080P_6CH 2: 1080P_8CH 3: 1080P_3D_2CH(PCM)
- Page 13 Note 1: This command must be followed by either the SET INx EDID y or the SET IN6 EDID y command, as appropriate for the respective input and the programmed User EDID memory. IR Code Setup RS232 Command Command Details Set IR System Code SET IR SYS xx yy Where xx and yy define a 16-bit address, each in the range [00-FF]...
- Page 14 The input video signal status can be obtained using the STA command, which provides a detailed report of the status and settings of the MFT62. The Input Setup Status section shows Link = ON for any input where there is a valid input signal or Link = OFF for any input where there is no signal.
- Page 15 RJ45 Cabling Details The RJ45 connectors should both be wired to the T568B standard as follows: Ensure that the cable terminations are correctly wired and properly crimped before inserting the cable connector into the HDBT output port of the MFT-62. Note: You may use cat5e, cat6 UTP in conjunction with the HDBaseT output.
- Page 16 Damage to the product due to incorrect usage or storage Damage caused by unauthorised repairs Damage caused by mistreatment of the product Please direct any questions or problems you may have to your local dealer before contacting SY Electronics. sy.uk V1.3...
