OMEGA 3
User Manual

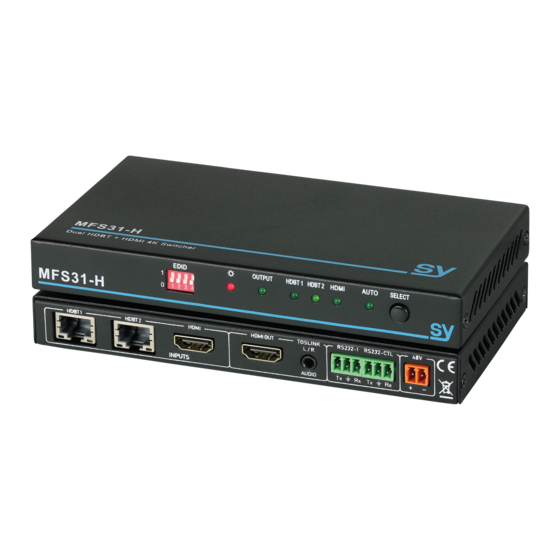

MFS31-H
Multi-format Switcher
with dual HDBaseT and a HDMI 2.0 inputs
2x HDBaseT and 1x HDMI inputs, with HDMI output
Supporting:
HDMI 2.0, Down-Scale, EDID & HDCP control, Test-Pattern,
Audio de-embed, CEC & Temperature control, Diagnostics, iPoC
SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK
Tel: +44 (0)161 868 3450 – Web: sy.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SY Electronics OMEGA 3
Summary of Contents for SY Electronics OMEGA 3
- Page 1 2x HDBaseT and 1x HDMI inputs, with HDMI output Supporting: HDMI 2.0, Down-Scale, EDID & HDCP control, Test-Pattern, Audio de-embed, CEC & Temperature control, Diagnostics, iPoC SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK Tel: +44 (0)161 868 3450 – Web: sy.uk...
-
Page 2: Table Of Contents
Contents: FEATURES CONNECTORS AND CONTROLS Front Rear USING THE MFS31-H RS232 COMMANDS HELP Command Output HDCP Commands Video Keep-Alive Test Pattern Setting Auto or Manual Switching Mode Input Selection Diagnostic Commands CEC Commands Set Safety Temperature RJ-45 WIRING SPECIFICATIONS General Video and Audio Power Supply Environmental and Physical... - Page 3 Thank you for purchasing the MFS31-H Multi-format Switcher. This product is designed with professional AV installers in mind. The many extensive features assist with system integration, validation and maintenance. Please carefully read this manual prior to installation and keep for future reference. You can download further supporting documentations from our web site (sy.co.uk) Installation precautions This product has special circuitry to protect it against moderate surges and static discharges.
-
Page 4: Features
The MFS31-H is an HDBaseT/HDMI switcher supporting 2 HDBaseT and 1 HDMI inputs, with HDMI output. De-embedded audio is available as both S/PDIF optical Mini-Toslink as well as analogue L/R outputs. It accommodates pass-through RS232 protocol with the selected HDBaseT transmitter, as well as separate RS232 port for controlling the MFS31-H features. -
Page 5: Rear
Rear Name Description HDBT 1 HDBaseT input 1 from upstream transmitter HDBT 2 HDBaseT input 2 from upstream transmitter HDMI IN HDMI input from external source HDMI OUT HDMI output to display device L/R Analogue Audio Output 3.5mm Stereo Jack. 20Hz – 20kHz, 1.5Vrms max Audio (de-embed) ... -
Page 6: Help Command
HELP Command Command Send Command Receive GET OMEGA HELP Get the current board command list Output HDCP Commands The following commands used to select the HDMI output HDCP modes: Command Details w is one of following characters FOLLOW-INPUT (default) SET OMEGA HDCP-OPTION w FORCE-1.4 FORCE-2.2 FORCE-OFF... -
Page 7: Input Selection
Command Details SET OMEGA SWITCH-MODE MANUAL Manual switching mode selected (default) SET OMEGA SWITCH-MODE AUTO Auto switching mode selected GET OMEGA SWITCH-MODE Get the current switch mode Input Selection The MFS31-H inputs can be selected with the following three option: ... -
Page 8: Cec Commands
Cable Length: cat6 cable length between 20-70m is reported back Link Status: Indicates the Transmitter/Omega3 units are intercommunicating correctly. Signal Status: Indicates video signal activity on HDMI input / Output Signal Error: Indicative of cat6 signal line quality ... -
Page 9: Set Safety Temperature
Set Safety Temperature The following command sets the Power Off, Warning, and Re-Power temperatures. There is also a command to enable or disable this feature: Command Send Details SET OMEGA SAFE-TEMP-ONOFF ON Enable MFS31-H safety temperature handling SET OMEGA SAFE-TEMP-ONOFF OFF Disable MFS31-H safety temperature handling GET OMEGA SAFE-TEMP-ONOFF... -
Page 10: Specifications
Specifications General HDMI Version Input: HDMI 2.0 - HDR (10, 12) and HBR supported HDMI Input: 18 Gbps (4K60 4:4:4) Max Bandwidth HDBT input: 10.2 Gbps (4K60 4:2:0, 4K30 4:4:4) HDMI output: 18 Gbps (4K60 4:4:4) Input HDCP: 1.4 and 2.2 HDCP Compliance Output HDCP: Fully controlled –... -
Page 11: Package Contents
Damage to the product due to incorrect usage or storage Damage caused by unauthorised repairs Damage caused by mistreatment of the product Please direct any questions or problems you may have to your local dealer before contacting SY Electronics. sy.uk... - Page 12 NOTES: sy.uk V1.0...
