CB-1250 DATA BUOY
QUICK START GUIDE

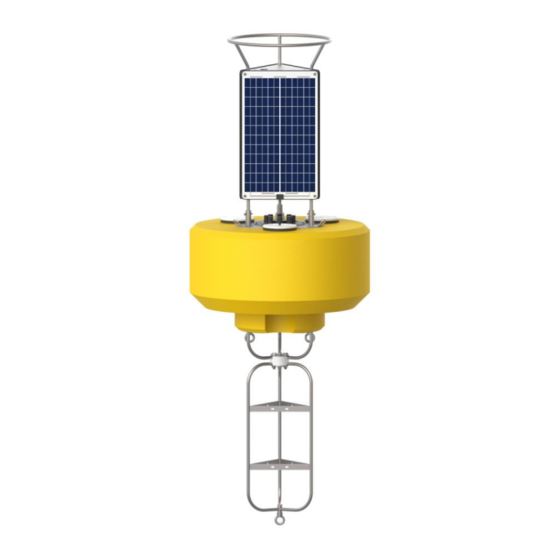

Figure 1: NexSens CB-1250 Data Buoy
Overview
The CB-1250 data buoy is constructed of an inner core of
cross-linked polyethylene foam with a polyurea coating
that provides 1250 lb. buoyancy. A stainless steel internal
frame provides topside lifting eyes and subsurface
mooring eyes for single- and multi-point mooring. An
integrated data well accommodates internal batteries,
which are recharged by (3) 71-watt solar panels mounted
on the buoy tower. The data well lid is available as a
NexSens X2-CB buoy-mounted data logger or as a
standard lid with included pass-through fittings.
What's Included?
(1) Buoy hull with data well, 1250 lb. buoyancy
(1) Buoy tower
(3) 71W solar panels
(1) Data well lid (X2-CB or pass-through)
(3) 8" pass-through sensor pipes
(3) Top-side lifting eyes
(3) Bottom-side mooring eyes
(1) Cage-L Instrument cage
(1) CB-CCA anti-rotation cage clamp
Important Specifications
Buoyancy : 1250 lbs. (567 kg)
Weight : 300 lbs. (136 kg)
Data Well Dimensions : 10.3" (26.16 cm) inside diameter;
27.5" (69.9 cm) tall
Instrument Cage Installation
Follow the included CB-CCA quick start guide to attach
the instrument cage to the buoy frame.

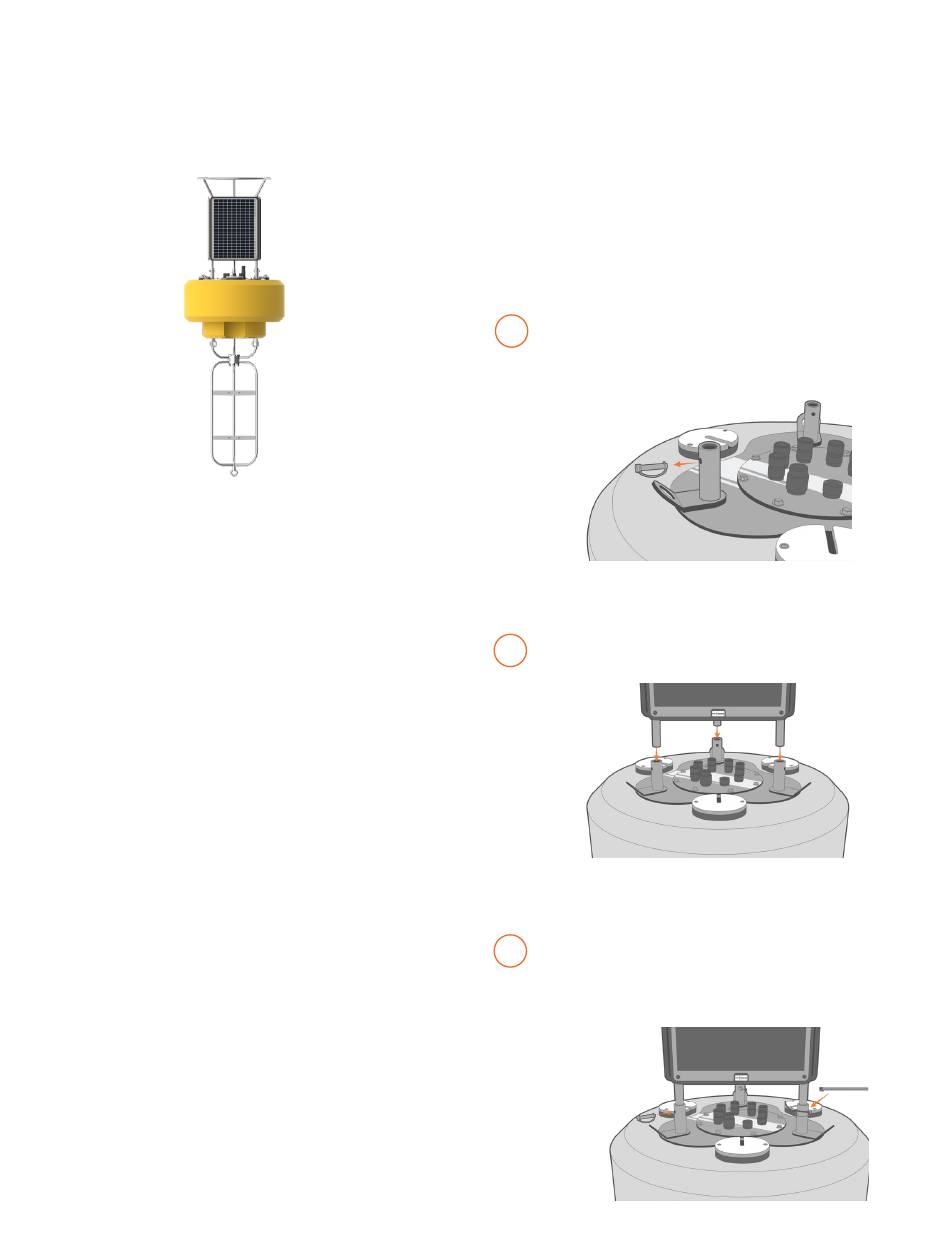

Solar Tower Connection
Remove the included clevis pins from the (3)
1
tower mount hubs.
Figure 2: Clevis pin removal.
Insert the tower legs into the tower mount hubs.
2
Figure 3: Solar tower connection.
Re-install the clevis pins to secure the solar tower.
3
a. It is recommended to apply a zip tie through
the loop closure for added security.
Figure 4: Installed tower.
