ALDI guarantees that our exclusive brand products are developed to our
stringent quality specifications. If you are not entirely satisfied with this
product, please return it to the nearest ALDI store within 60 days from the
date of purchase, for a full refund or replacement, or take advantage of our
after sales support by calling the supplier's Customer Service Hotline.
AU
Made in China
FERREX
is a registered trademark of ALDI Stores
®
DISTRIBUTED BY:
ALDI STORES
1 SARGENTS ROAD
MINCHINBURY NSW 2770
www.aldi.com.au
3
AFTER SALES SUPPORT
710184
1300 855 831
AU
support@scheppach.com.au
YEAR
MODEL:
WARRANTY
DC100
11/2022
User Manual

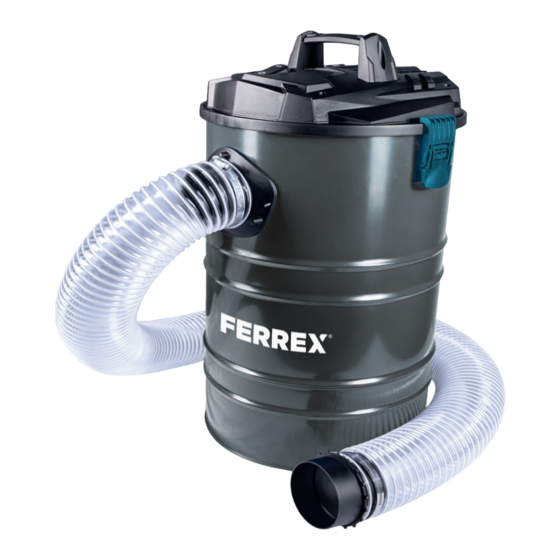

DUST EXTRACTOR 50L
DC100
CAUTION! Read the instruction manual before using the machine.
Contents
Overview ..................................................................................... 3
Package contents/part list ......................................................... 6
Explanation of Symbols .............................................................. 7
Introduction ................................................................................ 8
Device description ....................................................................... 9
Scope of delivery ......................................................................... 9
Proper use ..................................................................................10
Safety regulations ...................................................................... 11
Technical data ............................................................................15
Assembly ....................................................................................16
Operation ....................................................................................16
Electrical connection ..................................................................17
Cleaning ......................................................................................17
Storage and Transport ...............................................................18
Maintenance ...............................................................................19
Disposal and recycling ...............................................................19
Troubleshooting ........................................................................ 20
Warranty Details ........................................................................ 22
Repair and Refurbished Goods or Parts Notice ....................... 24
1
2
1
2
3
4
9
5
5
8
8
10
6
7
7
12
3
4
1
10
11
1
3
6
8
11
10/11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FERREX DC100
Summary of Contents for FERREX DC100
-
Page 1: Table Of Contents
ALDI guarantees that our exclusive brand products are developed to our Safety regulations ..............11 stringent quality specifications. If you are not entirely satisfied with this DC100 Technical data ................15 product, please return it to the nearest ALDI store within 60 days from the Assembly ..................16... -
Page 2: Package Contents/Part List
10/11 Package contents/part list Suction system, 1x Suction hose, 1x Hose coupling, 1x Adapter set (4-piece), 1x Filter cartridge, 1x Filter bag, 4x Hose clamp, 2x Hose coupling Ø100mm, 1x Warranty card Instruction manual... -
Page 3: Explanation Of Symbols
Explanation of symbols Kapitelüberschrift Explanation of Symbols The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents. -
Page 4: Introduction
Kapitelüberschrift Introduction Introduction Congratulations on choosing to buy a FERREX product. ® All products brought to you by FERREX are manufactured to the highest standards ® of performance and safety, and as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year Warranty. -
Page 5: Device Description

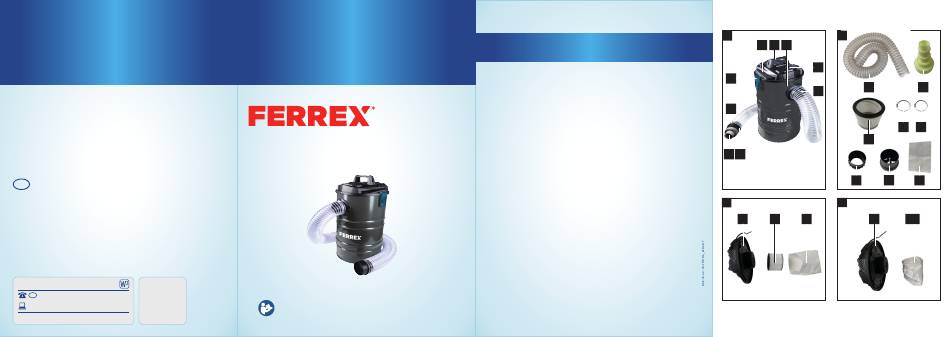

Device description/Scope of delivery Kapitelüberschrift Device description (Fig. 1 - 3) Engine housing Handle Chip container 4. ON/OFF switch 5. Suction hose 6. Adapter Hose coupling 8. Hose clamp Locking hooks 10. Filter cartridge 11. Filter bag 12. Hose coupling Ø100mm Scope of delivery 1x Suction system 1x Suction hose... -
Page 6: Proper Use
Kapitelüberschrift Scope of delivery/Proper use Only use original accessories and spare parts. Spare parts are available by • contacting the helpline. Specify the part numbers when you contact the helpline. • m ATTENTION! The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation! Proper use... -
Page 7: Safety Regulations
Proper use/Safety regulations Kapitelüberschrift • Check the filter regularly for damage. Replace damaged filters! Regularly check the housing seal and the seals for the filter and dust bag. • When using the cleaning nozzles, do not suck up any foreign bodies such as screws, nails, pieces of plastic or wood. - Page 8 Kapitelüberschrift Safety regulations • Keep tools sharp and clean in order to be able to work better and more safely. • Check the cable of the tool regularly and have it replaced by a recognised spe- cialist when damaged. • Check extension cables regularly and replace them when damaged. •...
- Page 9 Safety regulations Kapitelüberschrift • Before switching on, make sure that keys and adjusting tools are removed. • Switch off the engine and pull out the mains plug when leaving the workplace. • All protection and safety equipment must be reassembled immediately after repair or maintenance work is completed.
- Page 10 Kapitelüberschrift Safety regulations • Warning! This machine is for dry use only. • Warning! This machine is for indoor use only. • Warning! This machine shall be stored indoors only. • Warning! Do not let the power cord come into contact with the rotating brushes. m Warning! This electric tool generates an electromagnetic field during opera- tion.
-
Page 11: Technical Data
Kapitelüberschrift Technical Data Technical data Model number DC100 Suction port, connection Ø 100 mm Hose length 2000 mm Air power 130 m³/h Pressure difference 22000 Pa Filter surface 0.2 m² Container volume 50 L Weight 5.2 kg 220 - 240 V~... -
Page 12: Assembly
Kapitelüberschrift Assembly/Operation Assembly m ATTENTION! Always make sure the device is fully assembled before commissioning! Only carry out assembly, modifications, adjustment work when the engine is switched off. - Pull out mains plug – 8.1 Installing the filter cartridge (10) with filter bag (11), Fig. 3 - 5 Insert the filter cartridge (10) into the filter bag (11). -
Page 13: Electrical Connection
Electrical Connection/Cleaning Kapitelüberschrift Electrical connection The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connec- tion as well as the extension cable used must also comply with these regulations. Damaged electrical connection cable The insulation on electrical connection cables is often damaged. -
Page 14: Storage And Transport
Kapitelüberschrift Cleaning/Storage and Transport Remove the accumulated dirt and dust from the chip container (3). Reassemble the unit in reverse order. We recommend that you clean the device directly after every use. Wipe swarf and dust off the machine from time to time with a cloth. Clean the device at regular intervals using a damp cloth and a little soft soap. -
Page 15: Maintenance
Maintenance/Disposal and recycling Kapitelüberschrift Maintenance Attention! Disconnect the mains plug before carrying out any maintenance work. Connections and repairs Connections and repair work on the electrical equipment may only be carried out by electricians. Please provide the following information in the event of any enquiries: Type of current for the motor Machine data - type plate Engine data - type plate... -
Page 16: Troubleshooting
Troubleshooting Kapitelüberschrift Troubleshooting Fault Possible cause Remedy Check whether the plug is Plug the mains plug back in to plugged in. the socket. Motor does Check whether there is power to Call an electrician. not run the socket. Check whether the dust extractor Switch the on/off switch on. - Page 17 Kapitelüberschrift...
-
Page 18: Warranty Details
Dust Extractor 50L Warranty Details TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. - Page 19 Kapitelüberschrift...
-
Page 20: Repair And Refurbished Goods Or Parts Notice
Dust Extractor 50L Repair and Refurbished Goods or Parts Notice TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. ...
