AAON ASM01819 Manual

E-BUS Digital Room Temperature Sensor
ASM01819
ALT-REF number OE217-02
Description
The Touch Screen E-BUS Digital Room Temperature Sensor is used to
sense Space Temperature only. The Space Temperature Sensor can be
used with the VCCX2, VCB-X, VAV/Zone, and various other AAON Unit
Controllers.
Additional Features
• User Friendly Graphical LCD Display with LED Backlight
• Display the Current Space and Outdoor Air Temperature
• Display the current Zone Setpoint Temperature
• Equipped with Push Buttons for Changing the Zone Setpoint
Temperature
• Equipped with an Override Button for Forcing the Unit Controller or
VAV/Zone Controller into Occupied Operation from Unoccupied
Operation
• Provides graphics to indicate the mode of operation
• Provides LEDs to indicate Schedule Override, Button Push, and
Alarms
The sensor connects to the controllers using E-BUS cables of multiple
lengths connected between the controller and the sensor. The E-BUS
cables should not run in conduit with other AC line voltage wiring or with
any conductors carrying highly inductive loads.
Mounting

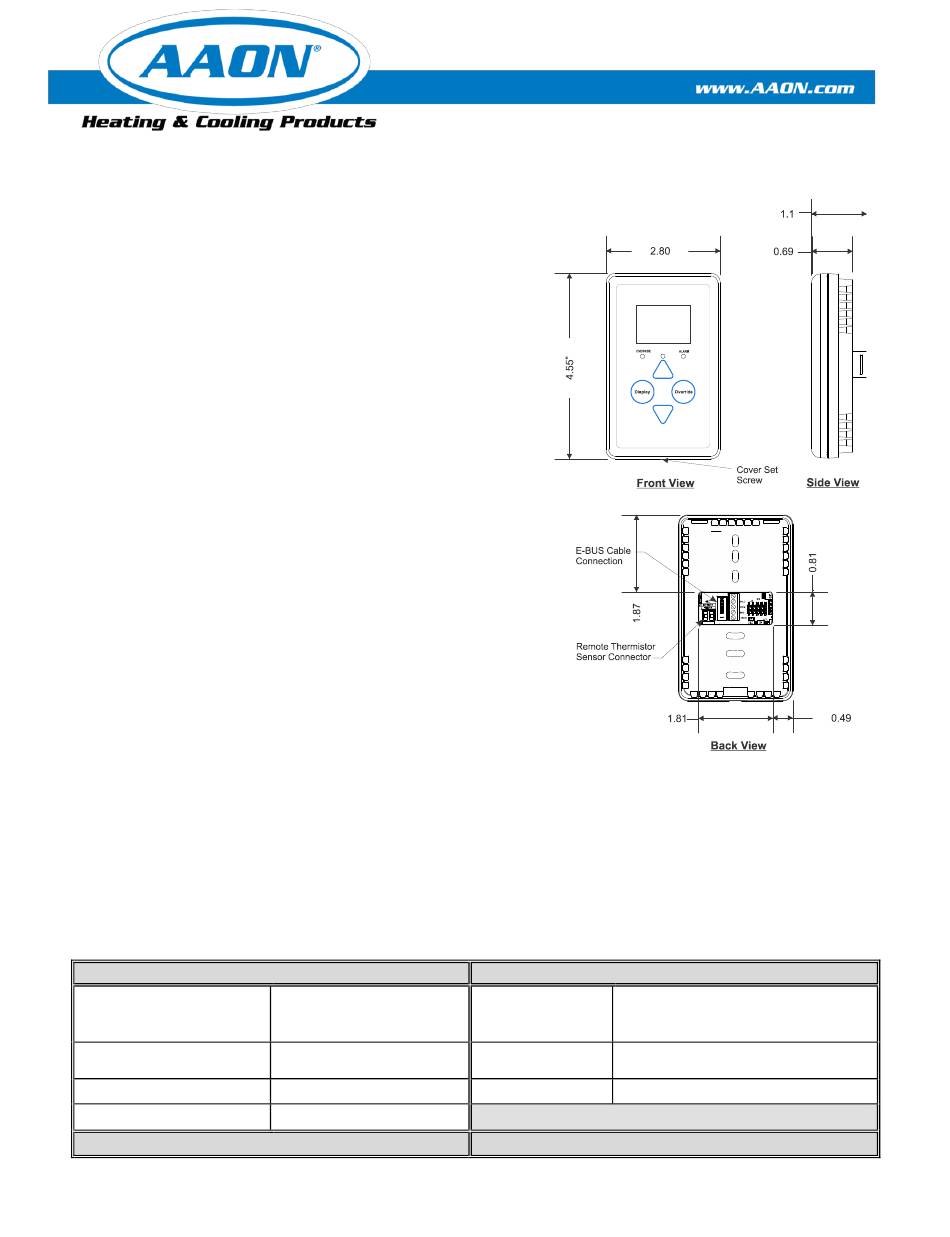

The E-BUS Digital Room Temperature Sensor is designed to be mounted to a vertical, 2" x 4" electrical box recessed in
the wall. If the wall cannot be penetrated, a plastic surface mount box such as those made by Wiremold
mount the sensor to the wall surface. The Sensor is mounted by removing the front cover and fastening the housing base
to the electrical box using the supplied (2) 6-32" x 1" machine screws. The E-BUS cable is then plugged into the E-BUS
connector located on the circuit board that is mounted on the cover. The cover is then placed onto the housing base and
the Allen Screw on the bottom of the base is adjusted to hold the cover in place.
Technical Data
Sensor Element
Sensor Reading Range
Ambient Temperature Limits
Accuracy
One Year Warranty
Digital Sensing Device Display
Connection
40F to 120F
Weight
-40F to 180F
Temp +/- .8F
AAON reserves the right to change specifications without notice
E-BUS Digital Room Temperature Sensor
112 x 64 Monochrome Graphical LCD
TM
, may be used to
w/LED Backlight
E-BUS
3.2 oz.
