Betriebs- und Wartungsanleitung für Klammergerät
D
ENG
Operating and Maintenance Instructions Air Stapler
F
Notice d'utilisation et d'entretien de l'agrafeuse
NL
Gebruikers- en onderhoudshandleiding voor tacker
IT
Istruzioni per l'uso e la manutenzione per
Dispositivo di chiodatura per punti metallici
ES
Manual de servicio y mantenimiento para
DA
Betjenings- og vedligeholdelsesvejledning for klammermaskine
SV
Anvisningar för drift och skötsel av
KG 90/25
KG 90/40
Advertisement
Related Manuals for Elektra Beckum KG 90/15
Summary of Contents for Elektra Beckum KG 90/15
- Page 1 ® Betriebs- und Wartungsanleitung für Klammergerät Operating and Maintenance Instructions Air Stapler Notice d’utilisation et d’entretien de l’agrafeuse Gebruikers- en onderhoudshandleiding voor tacker Istruzioni per l’uso e la manutenzione per Dispositivo di chiodatura per punti metallici Manual de servicio y mantenimiento para Betjenings- og vedligeholdelsesvejledning for klammermaskine Anvisningar för drift och skötsel av KG 90/25...

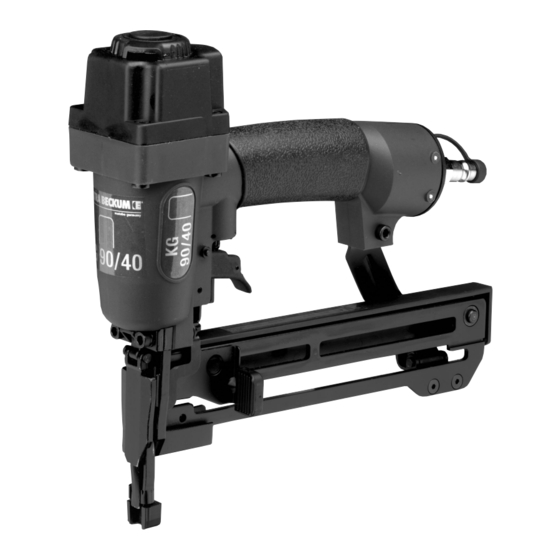

- Page 4 1. Getting to Know Your Air Stapler KG 90/25 and KG 90/40 Item Description Trigger lock Air inlet Trigger Catch lever Exhaust deflector Magazine slide Magazine lock Service shutter Depth adjustment...
- Page 5 2.1 Specified conditions of tackers shall only be con- Contents nected to air lines that are 1. Getting to Know Your controlled by a pressure This Air Stapler is an air po- Air Stapler KG 90/25 regulating device, ensu- wered tacker. Due to its ver- ring that the max.
- Page 6 3.2 Tool Safety Always wear safety glasses To access a staple jammed and hearing protection when in the tip, actuate the lever Air-powered tackers shall working with a tacker. on the side of the service only be operated and ser- shutter (item 8) to open it, viced by persons having then remove jammed staple.
- Page 7 Use only special pneumatic c) manual lubrication 5. Care and Maintenance (see chapter If neither a service unit nor a 5.1 Care „Accessories“). Your choices line oiler exists in the for lubrication: pressurised air system, 3 -5 Observing the maintenance a) by mist oiler drops of pneumatic oil must instructions given here...
- Page 8 6. Specifications KG 90/25 KG 90/40 Air consumption (per shot) 0.52 l 0.66 l Working pressure 5.0 - 7.0 bar Magazine capacity (staples/brads) 110 pcs. 145 pcs. Dimensions (LxWxH) 256x59x202 mm 295x60x235 mm Weight (w/o fasteners) 0.72 kg 0.93 kg A-weighted single-shot emission sound power level (L 91 dB...
- Page 9 8. Accessories Staples Type 90/15 CNK resin-bonded, crown 5.8 mm, 15 mm long (2000 pcs.) Stock-no. 090 105 3790 Type 90/20 CNK resin-bonded, crown 5.8 mm, 20 mm long (2000 pcs.) Stock-no. 090 105 3804 Type 90/25 CNK resin-bonded, crown 5.8 mm, 25 mm long (2000 pcs.) Stock-no. 090 105 3812 Type 90/30 CNK resin-bonded, crown 5.8 mm, 30 mm long (2000 pcs.) Stock-no.
