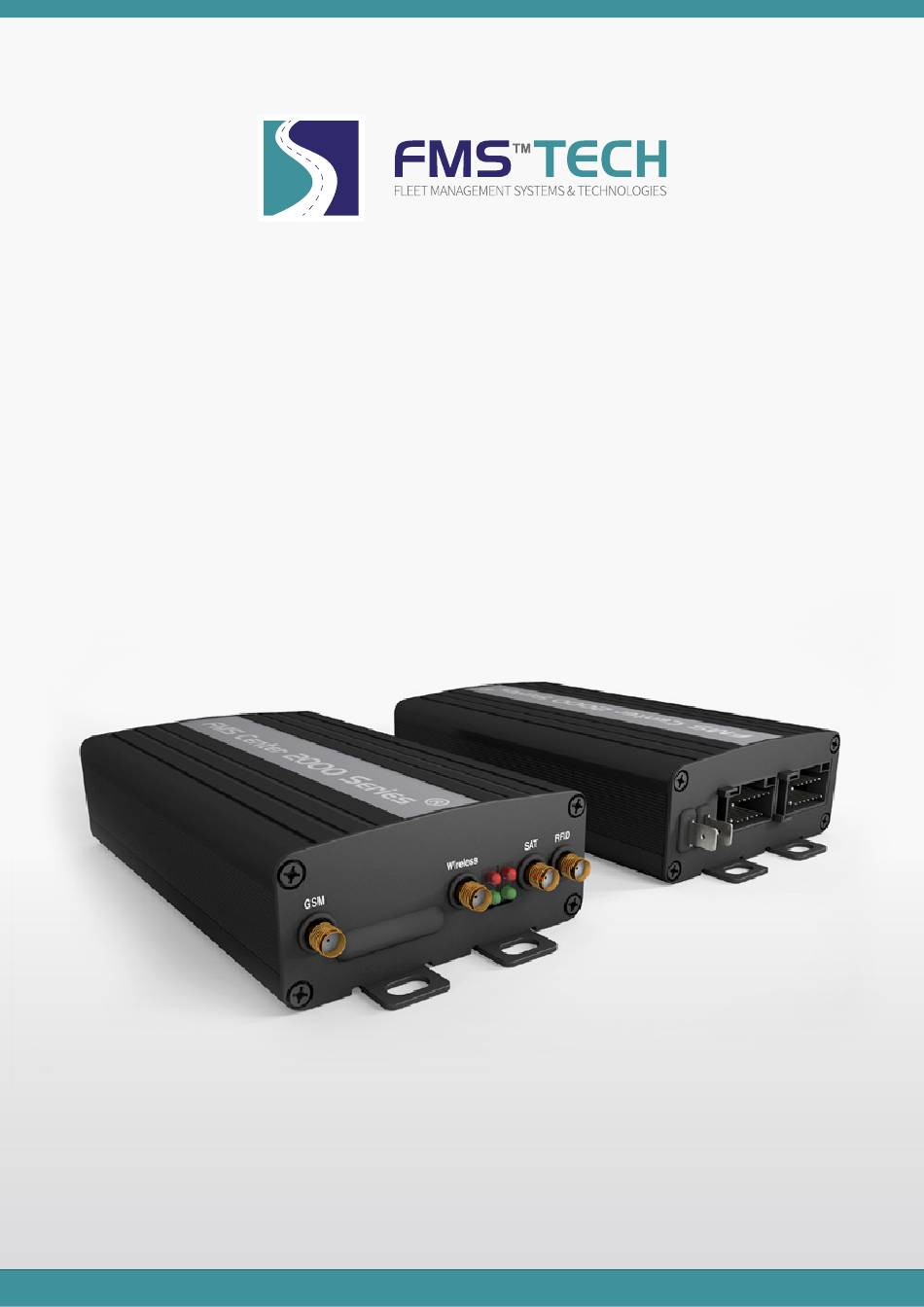

- Page 1 Center 2000+ Series Hardware Installation Manual Copyright © 2017 | All Rights Reserved | Fleet Management Systems & Technologies...
-
Page 2: Table Of Contents
FMS Center 2000 + Series | Hardware Installation Manual Table of Contents Introduction Features & Benefits Applications Accessories Product SPECIFICATION Technical Specification Description and Mounting Configuration Operation Instructions I/O PIN and Harness Installation Procedure RFID Antenna GPRS Antenna GPS Antenna... -
Page 3: Introduction
GPRS Quad band GSM 850, EGSM 900, DCS 1800, PCS 1900 Applications The FMS Center 2000+ is designed to work with almost all types of vehicles, trucks, buses and heavy vehicles. The system is designed to withstand high voltage spikes found in some vehicles. -
Page 4: Accessories
FMS Center 2000 + Series | Hardware Installation Manual Accessories The FMS Center 2000+ Series Product comes with all necessary accessories and product complements. The package will include the following: FMS Center 2000+ Device RFID Antenna Quantity: 1 Quantity: 1... -
Page 5: Product Specification
FMS Center 2000 + Series | Hardware Installation Manual Product Specification Content Specifications Operation Voltage 9-50 volt Rated Voltage 12-24 volt Current Consumption 300 mA Storage Temperature -40 °C to +85 °C Working Temperature -20 °C to +75 °C Humidity... -
Page 6: Technical Specification
FMS Center 2000 + Series | Hardware Installation Manual Technical Specification Content Specifications Remote Immobilizer Ignition Relay Int. Harsh Braking Harsh Acceleration Vibration (Graded Road) Movement sensor Harsh shock Idle time Online Tracking Offline Tracking No. of Events Unlimited Tolerance configuration... -
Page 7: Description And Mounting
Description and Mounting The FMS Center 2000+ Series unit should be mounted so it will not be exposed to damage from people or objects. The cables that connect to the unit should also be routed to protect them from possible damage. The unit must be mounted where it will not be exposed to excessive heat generated by the vehicle operation and away from moving parts. -
Page 8: Configuration
Ignition Power Freq channel) ( Break, Signal “Secondary Engine” Door, Light, etc... ) FMS Center 2000+ Con guration Figure 2: FMS Center 2000+ Series Configuration p. 8 Copyright © 2017 | All Rights Reserved | Fleet Management Systems & Technologies... -
Page 9: Operation Instructions
| Hardware Installation Manual Operation Instructions Installations must be performed by a qualified automotive and FMS Tech certified technician. Vehicle engine, battery and Vehicle lines must be in good working condition All vehicle functions such as light, door, seat-belt, air condition etc. must be in good working condition (Optional) Prepare suitable Tools ( screwdriver, pliers, wire stripper, solder, multi-meter, wrench set, Electrical tape or shrink tubing and cable tie). -
Page 10: I/O Pin And Harness
A/D IN 2 Output 1 +3V3 Auxillary Power (100mA) Not Used Figure 3: FMS Center 2000+ Series I/O System (Colors in Diagram Represent wire color) p. 10 Copyright © 2017 | All Rights Reserved | Fleet Management Systems & Technologies... - Page 11 FMS Center 2000 + Series | Hardware Installation Manual Color Description Brown P1-1 Power (vehicle ground) P1-2 Power (vehicle battery) Black P1-3 Ignition Blue P1-4 Speed Green P1-5 RPM 1 Violet P1-6 RPM 2 Violet/White P1-7 A/D IN1 Red/White P1-8...
-
Page 12: Installation Procedure
| Hardware Installation Manual Installation Procedure Installing FMS Center 2000+ Series unit with the antennas is very easy, this installation procedure can often completed in 2-3 hours per unit. This product is connected directly to the vehicle’s 12 or 24 volt system. -
Page 13: Rfid Antenna
RFID antenna close to driver access card such as behind the steering wheel on the right side of the driver “Recommended”. Figure 4: FMS Center 2000+ Series RFID Antenna GPRS Antenna Screw on Connection Connect GPRS antenna cable to the GPRS... -
Page 14: Assemble The Harness
“See Figure 3”. The other end can be connected to the other starting engine wire “See Figure 7” Figure 7: FMS 2000+ Starting Relay Cables Harness p. 14 Copyright © 2017 | All Rights Reserved | Fleet Management Systems & Technologies... -
Page 15: Optional - Power Control Outputs Connection
| Hardware Installation Manual Optional - Power Control Outputs Connection The FMS Center 2000+ Series unit has two power control outputs: Output (P2-16) that is non-regulated voltage (Vehicle voltage 12 Volt or 24 Volt). Output (P1-15) that is regulated voltage (8.6 Volt). -
Page 16: Installation Verification
Searching for GPS Satellite :LED is Blinking. SAT fixed :LED is constantly ON. NOTE: This Apply only to FMS Center 2000 + and FMS Track 2000+ p. 16 Copyright © 2017 | All Rights Reserved | Fleet Management Systems & Technologies... -
Page 17: Troubleshooting
Vehicle speed and RPM signals should be calibrated using the proximity cards. These cards can be programmed for each company using the same FMS Office 2000 application. The calibrations can be performed either automatic (set the known speed or RPM calibration value) or manual (measure the specific distance and write the same distance value on the card).
