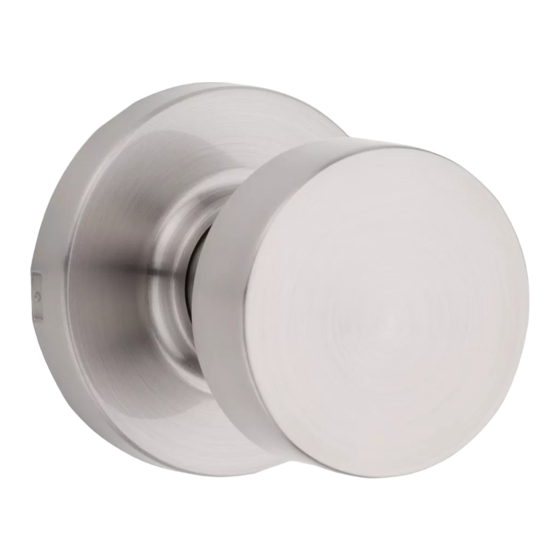

Spectrum Brands Kwikset Passage Installation Manual

66084 / 01
Please determine your function type prior to installation.
Passage
*Tools
*Tools will depend on install type
Scroll to the bottom (STEP 6) if you need help in preparing your door

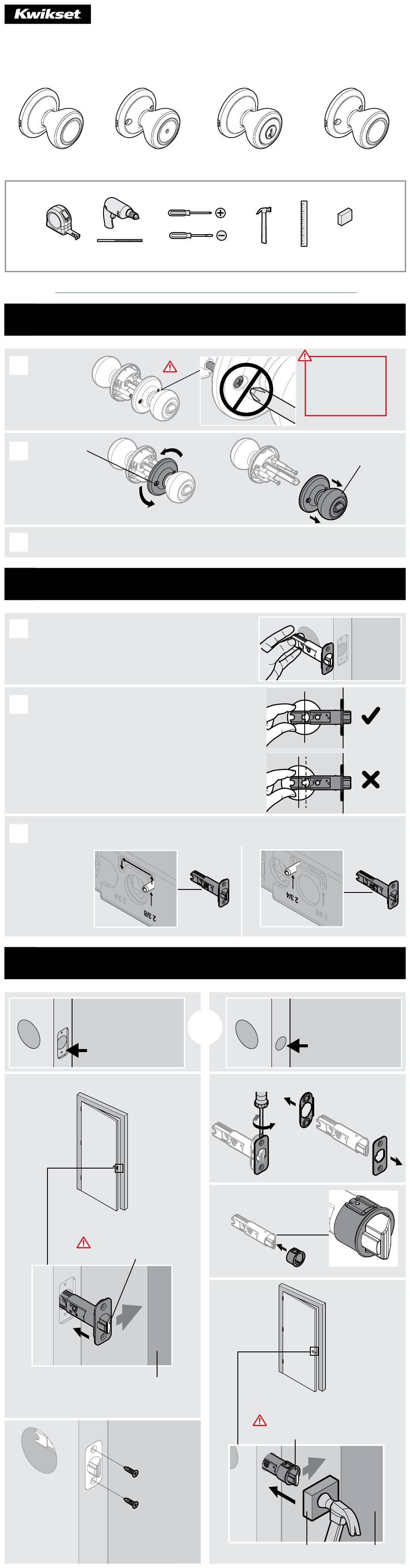

1
Disconnect knobs (if pre-assembled)
A
Do not
remove
screws!
B
Twist the
side with the
holes.
C
Set knobs aside until step 5.
2
Adjust the backset of the latch (if needed)
A
Hold the latch in front of the door hole, with
the latch face flush against the door edge.
B
If the latch holes are centered in the door hole,
no adjustment is required. Proceed to step 4.
If the latch holes are NOT centered, adjust
latch. See "Latch Adjustment" (step 3C).
C
Latch Adjustment (only if needed)
Move the pin to
extend the latch.
3
Install latch
Door edge chiseled
This manual can be used to install a variety of knobs.
Privacy
3/32" (2 mm)
counter-clockwise
slant of latch bolt
faces door frame
door frame
Entry
Kwikset
or
Remove plates
Install drive-in collar
Use hammer
and wood
block to tap in
latch without
damaging it.
slant of latch bolt
faces door frame
Installation Guide
1-800-327-5625
www.kwikset.com
Dummy
(Non-Rotating)
wood block
If installing a
non-rotating
knob, skip to
step 4.
centered
not centered
Door edge NOT
chiseled
wood block door frame
Pull to
separate
knobs.
