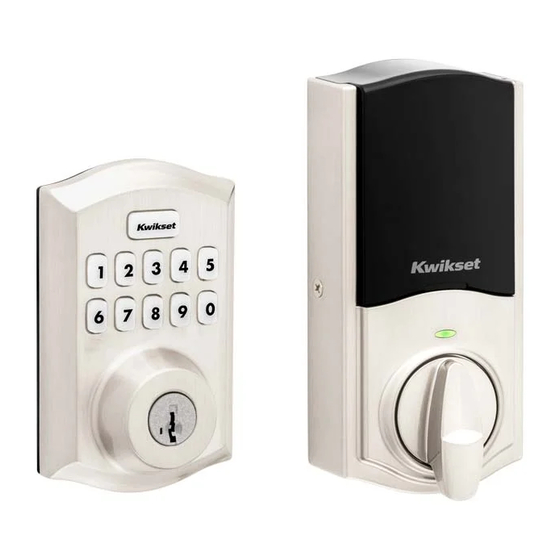

Spectrum Brands Kwikset Home Connect 620 Installation And User Manual

3
69369-00
4
Rev 0
Z-Wave Plus™
Installation and User Guide
Required tools
Ruler
Phillips head screwdriver

Prepare the door and check dimensions

1
A Make sure your door is compatible. If you have a standard deadbolt mounted
separately from the handle below it, your door is compatible.
Compatible
Measure to confirm that the hole in the door is either
C
2-1/8" (54 mm) or 1-1/2" (38 mm).
2-1/8"
54 mm
or
1-1/2"
38 mm
2

Install the latch and strike

A
Extend the latch bolt.
Kwikset
1-866-863-6584
www.kwikset.com
Not Compatible Not Compatible
Rim Mortise
Lock Lock
Measure to confirm that the backset is
D
either 2-3/8" or 2-3/4" (60 or 70 mm).
Note: Additional door
preparation may be
required for doors with
1-1/2" (38 mm) holes.
Consult the deadbolt
drilling instructions at
kwikset.com/doorprep
2-3/8" or 2-3/4"
60 or 70 mm
(2x)
For Latch /
Strike Bag
03809
B
Hold the latch in front of the door hole, with the latch
face flush against the door edge.
C
Is the D-shaped hole centered in the door hole?
D-shaped hole
No adjustment is required.
Proceed to next step.
Parts List
Mounting Adapter
Plate Ring
Keys
Batteries
Latch A
Latch B
"B" is not included.
If needed, please contact
Kwikset to order a drive-in
latch for your lock.
Not Compatible
Integrated
Interior
Measure to confirm that the hole
E
in the door edge is 1" (25 mm).
b a
c k
s e
t
(2x)
actual size 46780
YES NO
or
D-shaped hole
Rotate latch face as
shown to extend latch.
1 / 4
Exterior Assembly Interior Assembly
For Latch / Strike For Lock
Strike 03809
SmartKey
46780
68272
If drilling a new door, use the supplied template and the complete
door drilling instructions available at kwikset.com/doorprep
B
Remove your existing deadbolt
from your door.
Measure to confirm that the door is between
F
1-3/8" and 2" (35 mm and 51 mm) thick.
1"
25 mm
(2x) (2x)
D
Install the latch.
*Use longer screws if
holes are worn out.
You will have two extra screws.
E
Install the strike on the door frame.
Make sure the hole in the door frame is drilled
a minimum of 1" (25 mm) deep.
*Install the longer screws
closest to the door jamb.
46780* (4x)
(For Latch/
Strike Bag)
69316
Tool
1-3/8" –2"
35 – 51 mm
actual size
UP is on top.
03809* (2x)
(For Latch/
Strike Bag)
or
or
door frame
