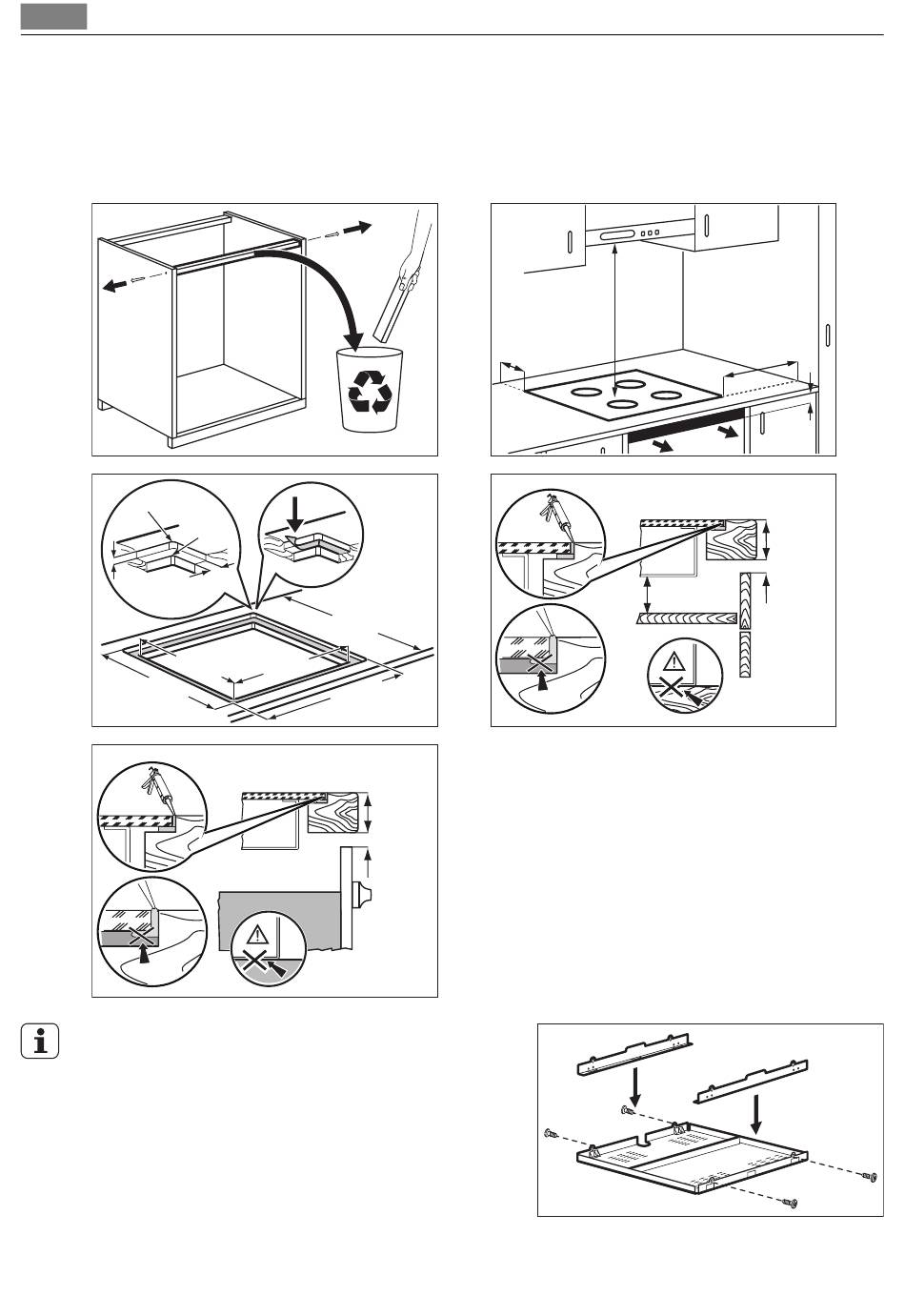

Installation instructions
• Bond the seal stripe flush into the corner of the rabbet. Make sure that no silicon com-
pound can get below the glass ceramic when grouting.
• Do not extend the tapes.
Assembly
R10
mm
R5
7
mm
12
mm
490
514
+1 mm
If you use a protection box (the additional acces-
sory), the front airflow space of 5 mm and protec-
tive floor directly below the appliance are not
necessary.
mm
min. 600
560
+1 mm +1 mm
584
+1 mm
min.
38 mm
min.
5 mm
min.
50mm
mm
min.
500mm
min.
50mm
min.
5mm
min.
25 mm
min. min.
20 mm
5 mm
