Zyxel NWD2105 Quick Start Guide

Overview

The NWD2105 is a USB wireless network adapter for your computer. The NWD2105 is compatible with WPS (Wi-Fi Protected Setup).

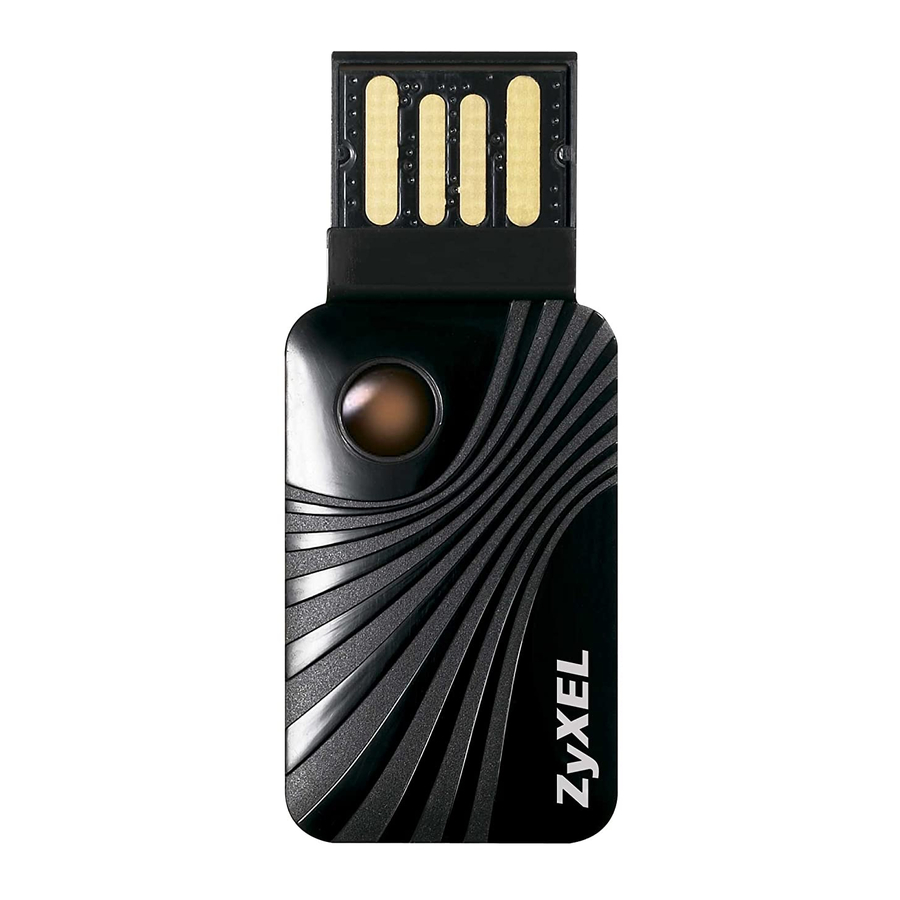

Overview

  1. LED and also a WPS button
  2. USB connector.

Install the Software

Visit www.zyxel.com for driver and software updates.

  1. Insert the included CD into the CD-ROM drive on your computer.
  2. When the Select Features screen displays, click Next to install the ZyXEL utility and driver. If the screen does not display, locate and double-click an.exe file in the Setup folder on the CD.
  3. Follow the on-screen instructions to install both the ZyXEL utility and the device driver. Alternatively, install the driver only and use Windows WLAN configuration tool to configure the NWD2105 with Windows XP, Windows Vista or Windows 7. See the User's Guide for more information.
  4. You will need to restart your computer after installing the ZyXEL utility and driver. Make sure you have saved your work before continuing.

Install the Hardware

  1. Locate an available USB port on the computer.
  2. Insert the NWD2105 into an available USB port on the computer. The NWD2105's LED (light) turns on if it is properly inserted.

Never bend, twist or force the NWD2105 into the port. If there is not enough space to attach the NWD2105, use the included USB cable.

Connect with WPS

To connect wirelessly to an Access Point (AP) with the NWD2105, use the WPS button.

  1. Place a WPS-enabled AP within range of the NWD2105.
  2. Press the WPS button on both devices for between one and three seconds. It doesn't matter which button is pressed first. You must press the second button within two minutes of pressing the first one. The LED flashes steadily once they are connected.

See the User's Guide for information about how to manually connect to a wireless device using the ZyXEL utility.
